5000L Beer Brewing Equipment Turnkey Project

Get a complete 5000L Beer Brewing Equipment Turnkey Project from our factory. Save time and money with our all-in-one solution for brewing.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
5000L
Power Source
Electric
Automatic Grade
Semi-Automatic
Parts 1
100-2000L Fermenters/Bbt
Parts 2
100L-5000L Brewhouse 2,3,4 Vessels
Parts 3
Hot Liquor Tank
Parts 4
Cold Liquor Tank
Parts 5
50L 100L 200L 300L CIP
Parts 6
Chiller
Parts 7
Malt Mill
Parts 8
Control System
Drawing
Provided Before Production, Customized
Transport Package
Iron Frame + Wooden Box
Specification
300L-20000L
Trademark
Cassman
Origin
Jinan
HS Code
8438400000
Production Capacity
50000PCS/Year

Product Description

5000l Beer Brewing Equipment Turnkey Project

Cassman  Beer Brewing system is designed for brewing craft beer with commercial purposes in large brew pub, microbrewery, nanobrewery, beer hall or distribution. Cassman brewing systems come with various heating methods including electric, steam and gas fired. Configurations of the brewhouse could 2, 3 or vessels, combined brewhouse is also available. In order to save your time of the installation, we also provide skid mounted  brewhouse(brewhouse the same). We also provide PLC or PID control system for the Beer Brewing system, Automated control by pneumatic valves& SIEMENS program PLC, with step mashing. Believe us we will give you a very smart and flexible choice for micro brewery.

Model CM-2000
Capacity 10000L/Batch
Pre-masher 5000L/6000L
Mash Tun 10000L/13000L
Lauter Tun 10000L/14000L
Kettle 12500L/16000L
Whirlpool  10000L/14000L
Material SUS 304/SUS316
Combination method Pre-masher/Rice cooker ,Mash tun,Lauter tun, Kettle,Whirlpool
Application Brewery
Heating way Steam heating
Voltage According to the requirement
Automation Fully automatic


5000L Beer Brewing Equipment Turnkey Project5000L Beer Brewing Equipment Turnkey Project
5000L Beer Brewing Equipment Turnkey Project
5000L Beer Brewing Equipment Turnkey Project

5000L Beer Brewing Equipment Turnkey Project

5000L Beer Brewing Equipment Turnkey Project



5000L Beer Brewing Equipment Turnkey Project
5000L Beer Brewing Equipment Turnkey Project

5000L Beer Brewing Equipment Turnkey Project

5000L Beer Brewing Equipment Turnkey Project
5000L Beer Brewing Equipment Turnkey Project

1000L BREWHOUSE Configurations

Malt Milling

· Double rollings crusher

· Flexible or steel auger to directly lift the malt to mash tun

Brewhouse

· Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

· Hot water tank and cold water tank for optional in special combinations

· Stainless steel are popular because of easy maintenance and clean, copper cladding for optional

· Two stages or single stage heat exchanger for wort cooling

· Completely stainless steel integrated work platform

· Sanitary and efficiency wort pump

· All pipings and fittings

Fermentation tanks

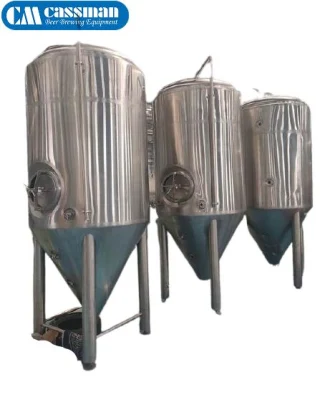

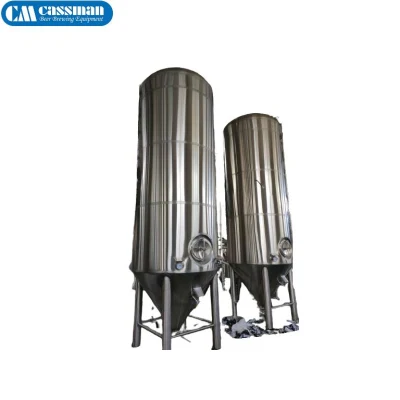

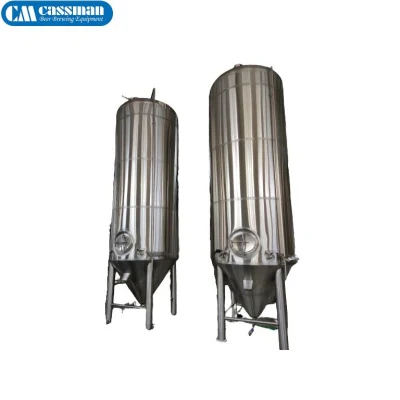

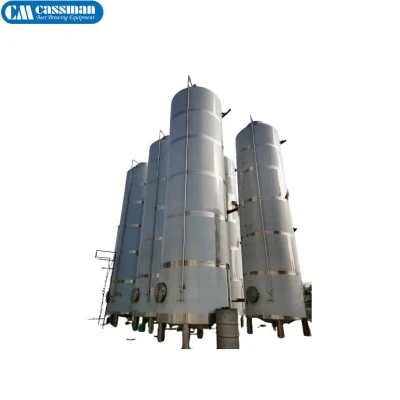

· Standard stainless steel conical cylindrical fermentation tanks

· Single size or double size as brewhouse

· Tanks quantity is exactly calculated by fermentation cycle for various beers

· All manhole, valves, pressure gauges, fittings etc are included

Beer Filters

· Plate-Frame or Candle type DE (diatomite earth) filter is used for clarify the beer

Brite tanks

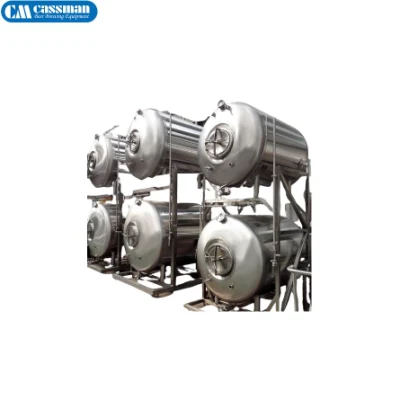

· Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation

· Single size or double size as fermenter

· All manhole, valves, stone, gauges, fittings etc are included

Cooling System

· Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

· Efficiency chillers or refrigerators

· Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

· All pipes, fitting, insulation materials are included

Controlling Unit

· Electrical controlling cabinet with temperature, on-off controlling thermocouple, solenoid valves etc are included

· PLC with touch screen panel for special request



Beer Dispense

· Keg filling and rinsing machine

· Semiauto bottling machine with rinsing, filling, capping, labeling etc

· Flash pasteurizer or tunnel pasteurizer is available

Other Facilities

· Portable or fixed CIP system for cleaning the tanks

· Steam boiler for brewhouse heating

· Water treatment for brew water

· Oil free air compressor

· Brewery lab instruments for beer quality test





5000L Beer Brewing Equipment Turnkey Project

Item Production capacity Volume in US Gallon Heating area Tank diameter  Height
CM-50 50L/day 14US Gallon 0.15m2 550mm 1500mm
CM-100 100L/day 26US Gallon 0.25m2 650mm 2000mm
CM-200 200L/day 53US Gallon 0.25m2 910mm 2200mm
CM-300 300L/day 79US Gallon 0.3m2 910mm 2300mm
CM-500 500L/day 132US Gallon 0.5m2 1160mm 2400mm
CM-600 600L/day 158US Gallon 0.6m2 1160mm 2500mm
CM-700 700L/day 185US Gallon 0.7m2 1260mm 2500mm
CM-800 800L/day 212 US Gallon 0.8m2 1260mm 2500mm
CM-1000 1000L/day 264US Gallon 1.0m2 1360mm 2800mm
CM-1500 1500L/day 396US Gallon 1.5m2 1560mm 2900mm
CM-2000 2000L/day 528US Gallon 2.0m2 1960mm 3150mm
CM-2500 2500L/day 660US Gallon 2.5m2 1960mm 3200mm
CM-3000 3000L/day 792US Gallon 3.0m2 2060mm 3800mm
CM-5000 5000L/day 1320US Gallon 5.0m2 2260mm 4400mm

5000L Beer Brewing Equipment Turnkey Project
5000L Beer Brewing Equipment Turnkey Project
