Basic Info.
Model NO.
JYQ-800-1
Type
Desander
Transport Package
Export Packing
Trademark
BEYOND
Origin
China
HS Code
8431431000
Production Capacity
2000sets/Year
Product Description

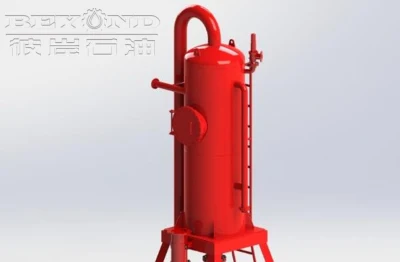

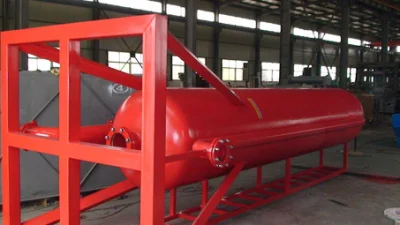

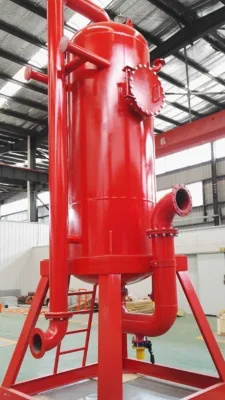

Mud Gas Separator for Drilling Mud Solids Control
JYQ Mud Gas Separator (Poor Boy Degasser) is engineered specifically for onshore drilling operations. The working principle of the poor boy degasser is simple. The drilling mud with gas mixture in the bore hole is transferred by mud return lines to the inlet of the mud gas separator, allowing it to impinge on a series of baffles which separates gas from drilling mud. The free gas flows into the flare line to be burned and the mud discharges to the shale shaker and to the mud tank. JYQ series Mud gas Separator combined with the Electric Ignition Device can be used to ensure the security of drilling process. It is divided into the normal pressure Mud gas separator and pressure auto-control Mud gas separator according to the pressure.
JYQ Mud Gas Separator (Poor Boy Degasser) is engineered specifically for onshore drilling operations. The working principle of the poor boy degasser is simple. The drilling mud with gas mixture in the bore hole is transferred by mud return lines to the inlet of the mud gas separator, allowing it to impinge on a series of baffles which separates gas from drilling mud. The free gas flows into the flare line to be burned and the mud discharges to the shale shaker and to the mud tank. JYQ series Mud gas Separator combined with the Electric Ignition Device can be used to ensure the security of drilling process. It is divided into the normal pressure Mud gas separator and pressure auto-control Mud gas separator according to the pressure.
1.0 Mpa:
| Model | JYQ-800-1 | JYQ-1000-1 | JYQ-1200-1 |
| Main body diameter(mm) | 800 | 1000 | 1200 |
| Discharge capacity(m3/h) | 260 | 300 | 320 |
| Inlet diameter(mm) | 125/150 | 125/150 | 125/150 |
| Outlet diameter(mm) | 200/250 | 200/250 | 200/250 |
| Exhaust diameter(mm) | 200 | 200 | 200 |
| Working pressure(MPa) | 1 | 1 | 1 |
| Weight(kg) | 2100 | 2800 | 3200 |
| Overall dimension(mm) | 1600×1600×5762 | 2000×2000×6500 | 2200×2200×6500 |
1.6MPa:
| Model | JYQ-1000-1.6 | JYQ-1200-1.6 |
| Main body diameter(mm) | 1000mm | 1200 mm |
| Discharge capacity(m3/h) | 300 m3/h | 320 m3/h |
| Inlet diameter(mm) | 125/150 | 125/150 |
| Outlet diameter(mm) | 200/250 | 200/250 |
| Exhaust diameter(mm) | 200 | 200 |
| Working pressure(MPa) | 1.6 | 1.6 |
| Weight(kg) | 3200kg | 3900kg |
| Overall dimension(mm) | 2200×2200×6500 | 2200×2200×6500 |
4.0 Mpa:
| Model | JYQ-1000-4 | JYQ-1200-4 |
| Main body diameter(mm) | 1000 | 1200 |
| Discharge capacity(m3/h) | 300 | 320 |
| Inlet diameter(mm) | 125/150 | 125/150 |
| Outlet diameter(mm) | 200/250 | 200/250 |
| Exhaust diameter(mm) | 200 | 200 |
| Working pressure(MPa) | 4 | 4 |
| Weight(kg) | 8000 | 9500 |
| Overall dimension(kg) | 2300×2300×6500 | 2300×2300×6500 |
