ASME 5 cubic meter skid-mounted station Mobile LPG Cylinder Propane Butane LPG Dispenser Storage Tank Cylinder
Product Description
1. LPG Skid station is used for refilling in home use cylinders in different size.
2. One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump.
3. Digital Filling Scale or automated filling dispenser(single nozzle or double nozzle) with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling.
4. Pump of skid station is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of skid station: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW, 7.5KW, 10KW.
6. Pipeline of skid station: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system.
8. Other Equipment of skid station: Sunshade for filling area, Leakage Detector,ex-proof lamp,water sprinkler system.
Technical Specifications
Specification of 5tons 10000L LPG skid station | |
Volume of Tank | 5CBM(5,000liters) |
Filling weight(Kg) | 5000 |
Thickness of Shell (mm) | 10 mm |
Thickness of Endplate (mm) | 10 mm |
Tank Diameter (mm) | 1600 mm |
Tank Dimensions (mm) (length x width x height) | 3070X1620X2210mm |
Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
Filling Medium | Liquefied Petroleum Gas ( Propane) |
Design Pressure | 1.71 MPa |
Corrosion Allowance | 1 mm |
Medium Density | 500-590 kg/ cbm |
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |
Specification of LPG Pump and Motor | |
Item | Specification |
Specification of the Motor | |
Model | Chinese famous brand |
Revolving speed | 1470 r/min |
Power | 5.5 kw |
Voltage | 380 V |
Protection grade | Anti explosive |
Specification of the hydrocarbon Pump | |
Model | YQB15-5 |
Medium | Liquid petroleum gas |
Speed | 15 m3/h |
Input and Output Diameter | 50 mm |
Working pressure | 2.0 Mpa |
Working temperature | -40ºC- 50ºC |
Material | carbon steel |

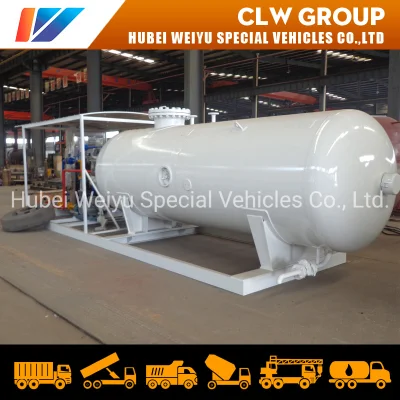

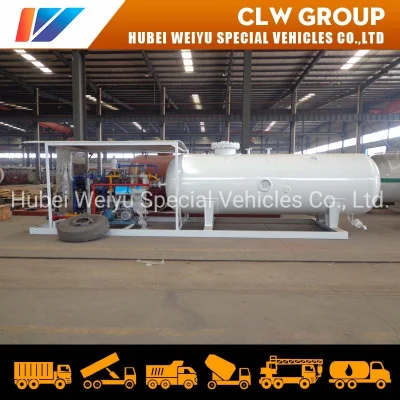

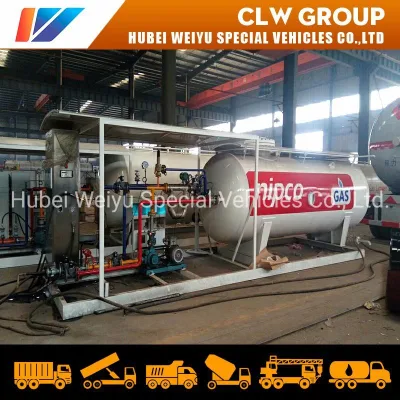

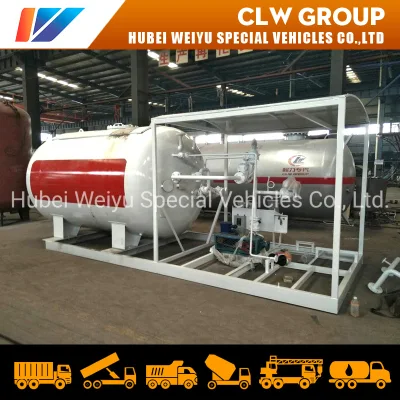

Reference photos
![ASME 5 Cubic Meter Skid-Mounted Station Mobile LPG Cylinder Propane Butane LPG Dispenser Storage Tank Cylinder](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00dWHhKtMIkBbO/ASME-5-Cubic-Meter-Skid-Mounted-Station-Mobile-LPG-Cylinder-Propane-Butane-LPG-Dispenser-Storage-Tank-Cylinder.webp)
![ASME 5 Cubic Meter Skid-Mounted Station Mobile LPG Cylinder Propane Butane LPG Dispenser Storage Tank Cylinder](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00wVHisrvMQBoF/ASME-5-Cubic-Meter-Skid-Mounted-Station-Mobile-LPG-Cylinder-Propane-Butane-LPG-Dispenser-Storage-Tank-Cylinder.webp)
![ASME 5 Cubic Meter Skid-Mounted Station Mobile LPG Cylinder Propane Butane LPG Dispenser Storage Tank Cylinder](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00mlLiKheWQvbO/ASME-5-Cubic-Meter-Skid-Mounted-Station-Mobile-LPG-Cylinder-Propane-Butane-LPG-Dispenser-Storage-Tank-Cylinder.webp)
![ASME 5 Cubic Meter Skid-Mounted Station Mobile LPG Cylinder Propane Butane LPG Dispenser Storage Tank Cylinder](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00mlDiZeMscvkO/ASME-5-Cubic-Meter-Skid-Mounted-Station-Mobile-LPG-Cylinder-Propane-Butane-LPG-Dispenser-Storage-Tank-Cylinder.webp)

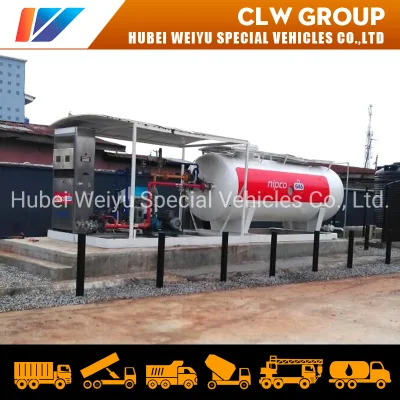

Successful Cases of portable gas station
![ASME 5 Cubic Meter Skid-Mounted Station Mobile LPG Cylinder Propane Butane LPG Dispenser Storage Tank Cylinder](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00mVDlsyMBeebO/ASME-5-Cubic-Meter-Skid-Mounted-Station-Mobile-LPG-Cylinder-Propane-Butane-LPG-Dispenser-Storage-Tank-Cylinder.webp)
Production Process
Overseas Exhibition and Local Support
![ASME 5 Cubic Meter Skid-Mounted Station Mobile LPG Cylinder Propane Butane LPG Dispenser Storage Tank Cylinder](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00EVIijhvtnCbJ/ASME-5-Cubic-Meter-Skid-Mounted-Station-Mobile-LPG-Cylinder-Propane-Butane-LPG-Dispenser-Storage-Tank-Cylinder.webp)
Customer Visiting
![ASME 5 Cubic Meter Skid-Mounted Station Mobile LPG Cylinder Propane Butane LPG Dispenser Storage Tank Cylinder](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00alDhZvMILeow/ASME-5-Cubic-Meter-Skid-Mounted-Station-Mobile-LPG-Cylinder-Propane-Butane-LPG-Dispenser-Storage-Tank-Cylinder.webp)
![ASME 5 Cubic Meter Skid-Mounted Station Mobile LPG Cylinder Propane Butane LPG Dispenser Storage Tank Cylinder](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00aWHhZneMyCqA/ASME-5-Cubic-Meter-Skid-Mounted-Station-Mobile-LPG-Cylinder-Propane-Butane-LPG-Dispenser-Storage-Tank-Cylinder.webp)
Factory overview
![ASME 5 Cubic Meter Skid-Mounted Station Mobile LPG Cylinder Propane Butane LPG Dispenser Storage Tank Cylinder](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00GlListCcEBom/ASME-5-Cubic-Meter-Skid-Mounted-Station-Mobile-LPG-Cylinder-Propane-Butane-LPG-Dispenser-Storage-Tank-Cylinder.webp)
![ASME 5 Cubic Meter Skid-Mounted Station Mobile LPG Cylinder Propane Butane LPG Dispenser Storage Tank Cylinder](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00GiLlsrBFkMbd/ASME-5-Cubic-Meter-Skid-Mounted-Station-Mobile-LPG-Cylinder-Propane-Butane-LPG-Dispenser-Storage-Tank-Cylinder.webp)
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates DONGFENG, SINOTRUCK, FOTON, FAW, ETC
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
