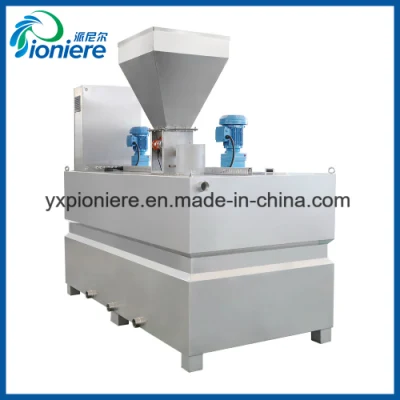

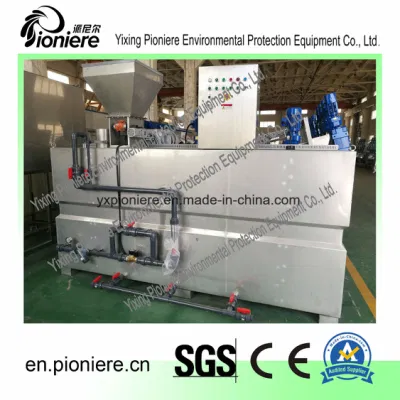

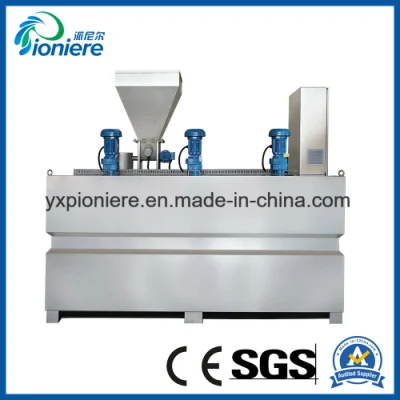

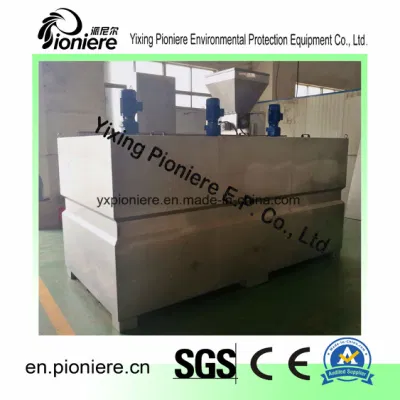

Basic Info.
Model NO.
PJY-3000
Process Capacity
0.4-6cbm/H
Ds Output
12-20kg/H
Power
0.3kw
Transport Package
Wooden Carton/Container
Specification
2069*910*1040
Trademark
Pioniere
Origin
Jiangsu, China
HS Code
8421191000
Production Capacity
300pieces/Year
Product Description
Yixing Pioniere Environmental Protection Equipment Co.,Ltd.
Screw press sludge dewatering equipment (XF series) is a new kind of sewage treatment facility developed by Pioniere. It uses multilaminated filter and spiral rotation to separate moisture from sludge. Benefiting by the special structure of fixed rings and moving rings, it allows continuous automatic operation in 24 hours without blocking. And our machines are competitive in current market for more than 6 years' experience and CE certification.
Features
♦ Low cost operation
♦ Energy, water, polymer saving
♦ Compact design, small floor space
♦ Self-cleaning, free of clogging, easy to handle oily sludge
♦ 24h automatic continuous control, simple operation and maintenance
↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
SAVE MONEY!!!!!!
Product Details
Working Principle
As equipment starts running, sludge flows into the filter cylinder and moves forward to sludge cake outlet under the thrust from screwshaft. The whole filter cylinder is composed of fixed rings, moving rings and shaft. The first two sections are thickening zone, last two are dewatering zone, The space between screw blades gets more and more narrower, which means the inner pressure gradually gets bigger. Under this pressure, liquid is squeezed out from the sludge and leaks from the small gaps between rings. And the left dry solid is pushed to the sludge cake outlet.
Specification
Project reference
Sludge type: Dairy farm sludge
Location: America
Screw press : XF-303
Polymer dosing machine : PJY-4000
Screw press sludge dewatering equipment (XF series) is a new kind of sewage treatment facility developed by Pioniere. It uses multilaminated filter and spiral rotation to separate moisture from sludge. Benefiting by the special structure of fixed rings and moving rings, it allows continuous automatic operation in 24 hours without blocking. And our machines are competitive in current market for more than 6 years' experience and CE certification.
Features
♦ Low cost operation
♦ Energy, water, polymer saving
♦ Compact design, small floor space
♦ Self-cleaning, free of clogging, easy to handle oily sludge
♦ 24h automatic continuous control, simple operation and maintenance
↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
SAVE MONEY!!!!!!
Product Details
Working Principle
As equipment starts running, sludge flows into the filter cylinder and moves forward to sludge cake outlet under the thrust from screwshaft. The whole filter cylinder is composed of fixed rings, moving rings and shaft. The first two sections are thickening zone, last two are dewatering zone, The space between screw blades gets more and more narrower, which means the inner pressure gradually gets bigger. Under this pressure, liquid is squeezed out from the sludge and leaks from the small gaps between rings. And the left dry solid is pushed to the sludge cake outlet.
Specification
| Model No. | DS standard capacity (kg/h) | Sludge Volume (m³/h) | ||||||
| Concentration Low~High | 2000mg/L | 5000mg/L | 10000mg/L | 20000mg/L | 25000mg/L | 50000mg/L | ||
| XF 101 | 3 | 5 | ~1.5 | ~0.6 | ~0.5 | ~0.25 | ~0.2 | ~0.1 |
| XF 131 | 6 | 10 | ~3 | ~1.2 | ~1 | ~0.5 | ~0.4 | ~0.2 |
| XF 132 | 12 | 20 | ~6 | ~2.4 | ~2 | ~1 | ~0.8 | ~0.4 |
| XF 202 | 18 | 30 | ~9 | ~3.6 | ~3 | ~1.5 | ~1.2 | ~0.6 |
| XF 301 | 30 | 50 | ~15 | ~6 | ~5 | ~2.5 | ~2 | ~1 |
| XF 302 | 60 | 100 | ~30 | ~12 | ~10 | ~5 | ~4 | ~2 |
| XF 303 | 90 | 150 | ~45 | ~18 | ~15 | ~7.5 | ~6 | ~3 |
| XF 352 | 120 | 200 | ~60 | ~24 | ~20 | ~10 | ~8 | ~4 |
| XF 353 | 180 | 300 | ~90 | ~36 | ~30 | ~15 | ~12 | ~6 |
| XF 403 | 270 | 450 | ~135 | ~54 | ~45 | ~22 | ~18 | ~9 |
| XF 404 | 360 | 600 | ~180 | ~72 | ~60 | ~30 | ~24 | ~12 |
| Model No. | Dimension (mm) | Power (kw) | N.W. (kg) | ||
| L | W | H | |||
| XF 101 | 1816 | 756 | 1040 | 0.2 | 190 |
| XF 131 | 1969 | 756 | 1040 | 0.2 | 205 |
| XF 132 | 2069 | 910 | 1040 | 0.3 | 275 |
| XF 202 | 2500 | 935 | 1270 | 0.8 | 470 |
| XF 301 | 3255 | 985 | 1600 | 0.8 | 820 |
| XF 302 | 3455 | 1295 | 1600 | 1.2 | 1350 |
| XF 303 | 3605 | 1690 | 1600 | 1.95 | 1820 |
| XF 352 | 4140 | 1550 | 2250 | 3.75 | 2450 |
| XF 353 | 4420 | 2100 | 2250 | 6.0 | 3350 |
| XF 403 | 5150 | 2350 | 2250 | 6.0 | 4950 |
| XF 404 | 5350 | 2850 | 2550 | 8.2 | 5250 |
Project reference
Sludge type: Dairy farm sludge
Location: America
Screw press : XF-303
Polymer dosing machine : PJY-4000
Sludge type: Swine farm sludge
Location: America
Screw press : XF-352
Polymer dosing machine : PJY-1000
About us
Yixing Pioniere, established in 2012, is specialized in manufacturing, developing and marketing of multi-disc sludge dewatering equipment and related wastewater treatment system. With the spirit "High Quality, Fast Service", and against strong technical force, sophisticated equipment, prompt and comprehensive service, we believe we can be your best long-term cooperator.
Spare Parts
Remarks
♦ Model selection: Sludge type, sludge volume, solid content and daily runtime of machine are necessary.
♦ Raw material: SS304 or SS316 (according to different sludge types,sludge containing much chloride ion needs SS316).
♦ Manufacturer: We have our own workshop so that best quality and lowest price can be provided for you.
♦ Corollary equipments: Sludge pump and polymer dosing pump are used together with screw press.
♦ Customization: Custom-made is available.
Contact Us
YEW
Tel:(86)0510-88568099
Location: America
Screw press : XF-352
Polymer dosing machine : PJY-1000
About us
Yixing Pioniere, established in 2012, is specialized in manufacturing, developing and marketing of multi-disc sludge dewatering equipment and related wastewater treatment system. With the spirit "High Quality, Fast Service", and against strong technical force, sophisticated equipment, prompt and comprehensive service, we believe we can be your best long-term cooperator.
Spare Parts
Remarks
♦ Model selection: Sludge type, sludge volume, solid content and daily runtime of machine are necessary.
♦ Raw material: SS304 or SS316 (according to different sludge types,sludge containing much chloride ion needs SS316).
♦ Manufacturer: We have our own workshop so that best quality and lowest price can be provided for you.
♦ Corollary equipments: Sludge pump and polymer dosing pump are used together with screw press.
♦ Customization: Custom-made is available.
Contact Us
YEW
Tel:(86)0510-88568099
Fax:(86)0510-80193290
Web: yxpioniere.en.made-in-china.com
