Biomass Paddy Straw, Sawdust Shavings Wood Biofuel Machine, Complete Straw Pellet Making Plant

Get high-quality Biomass Paddy Straw, Sawdust Shavings Wood Biofuel Machine, and Complete Straw Pellet Making Plant from our factory. Sustainable biofuel solutions.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Working Principle
  • Applications
  • Our Advantages
  • Product Parameters
  • Successful Cases
  • Packaging & Shipping
  • Company Profile
Overview

Basic Info.

Warranty
1 Year
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Installation, Commissioning, Technical Training
Capacity
0.8-5.0t/H
Power
135-300kw
Weight
45-73t
Area
10m*24m-12m*26m
Transport Package
Plywood Box/Plastic Woven Clothes
Trademark
jiutian
Origin
Henan, China
Production Capacity
500 Sets/Year

Product Description

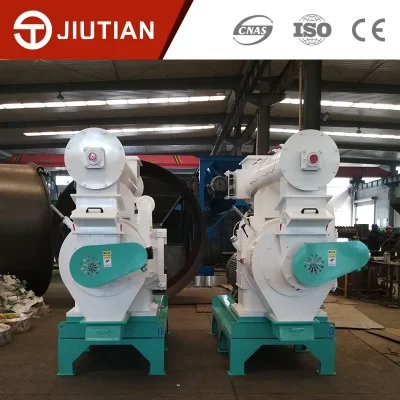

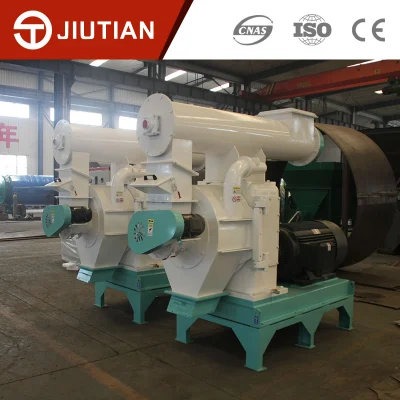

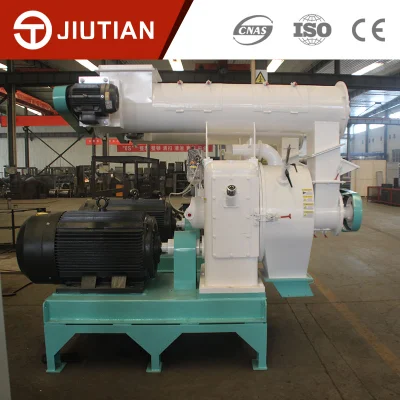

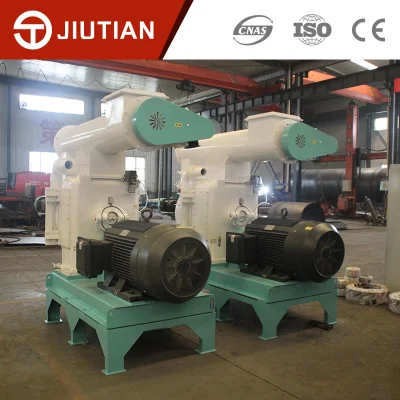

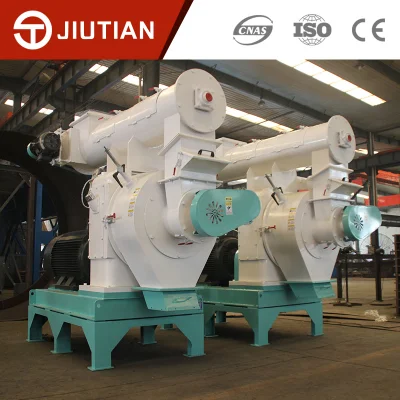

Wood Pellet Mill Machine

Product Description

Nowadays, the use of wood pellets is increasing, and the demand for wood pellet fuels continues to grow throughout the world. Large, medium and small biomass pellet producers have ushered in new opportunities, achieved good economic returns, and have optimistic development prospects.

According to the demand of the market, our technical team designs and manufactures the equipment of biomass pellet production line, which are suitable for the biomass material with the 35-56% moisture to make pellet, such as sawdust, bamboo shavings, wood shavings, barley straw, oat straw, wheat straw, rye straw, rice straw, rice husk, bagasse, sorghum straw, corn straw, beans stalk, peanut vine stalk, etc. We also help optimize the drying and pelleting process according to the property of different biomass materials, production scale, application requirements, cost control, automation level, and site condition.
Biomass Paddy Straw, Sawdust Shavings Wood Biofuel Machine, Complete Straw Pellet Making Plant

Working Principle

  • Wood Chipper: The function of a wood chipper is to cut down the raw material such as wood logs, branches, stems, and leaves into smaller pieces so that they can be processed through the pelletizing machine.
  • Drying Machine: As each material has a different amount of water in it, it is important to reduce the water content to make durable and good quality pellets. If the raw material is wood then the desired moisture content is usually 15% by using the dryer.
  • Pelletizer: The key machine in a wood pellet production line is a wood pelletizer. Its function is to convert raw material into pellets. The number of pelletizers you need depends on how much raw material you have and what is the capacity of your pelletizer. If you have tonnes of raw material then you may need more than one pelletizer. However, it is recommended to buy only one pelletizer if you are a beginner. Work on it and expand your business gradually.
  • Cooling and Sieving Machine: Pellet, when coming out of the machine, has a high temperature which is reduced using a cooling machine. A sieving machine is used to separate pellets from ash.
  • Packaging Machine: The produced wood pellets are packed in bags for sales.

Biomass Paddy Straw, Sawdust Shavings Wood Biofuel Machine, Complete Straw Pellet Making Plant

Applications

It is suitable for drying granulation of wood chips, peanut shells, pasture, sawdust, straw, and other materials, etc.

Biomass Paddy Straw, Sawdust Shavings Wood Biofuel Machine, Complete Straw Pellet Making Plant

Our Advantages

1. Patent technology (patent no. : ZL200920089749.2), single equipment the kinds are variety, application to a variety of materials, modular structures, optimize configurations, ensure production lines broad applicability.
2. According to customer's requirements to realize intelligent control, a key "fool" type operation.
3. More than 300 users in the world, our factory has rich practical experience.
4. The cover area reduces 50% than the traditional drying granulating production line, civil investment reduces about 50%.
5. Waste gas discharge temperature is lower than 50 ºC, low energy consumption.
6. Particle shaping fuel rate of 98%, bulk density, and high density.
7. Special design ash control technology, ash content lower than 1%.
8. Modular dust collecting and purifying heat recycling configuration, safe, and protect environmentally.
9. This type of mixing drum dryer is supporting many new types of energy-saving hot air stoves, energy consumption drops about 30%, power consumption reduces 20%, lower operation costs.
10. Internet sharing systems can ensure that personalized production lines, accessories, and unit efficient distributions in place.

Product Parameters

   We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level, and site condition.

Model Capacity(t/h) Motor power(kw) Weight(t) Area(m²)
JTKL1000 0.8-1.0 135 45 10X24m
JTKL1500 1.2-1.5 175 47 10X24m
JTKL2000 1.5-2.0 210 55 10X24m
JTKL3000 2.5-3.0 255 68 12X26m
JTKL5000 4.5-5.0 300 73 12X26m
Note: The price above is just for reference, please feel free to contact us if you want to know more about different models or production lines. We can offer free customized proposals.

Successful Cases

  Zhengzhou Jiutian Machinery Equipment Co., Ltd. dryer products cover all kinds of drying machine products such as biomass, coal slime, dregs, organic fertilizer, sludge, yeast, coconut fiber and chaff, and coconut. At present, the company not only has a huge customer resource system and considerable market share in the country but also in the UK, Russia, Greece, Italy, Israel, Morocco, Congo, Egypt, Côte d'Ivoire, Madagascar, Australia, India, Vietnam, Laos, Indonesia, Malaysia. In many overseas countries such as Sri Lanka, Chile, and the United States, the dryer case was established and successfully put into operation, and the quality and technology of the dryer products were in line with international standards.

Biomass Paddy Straw, Sawdust Shavings Wood Biofuel Machine, Complete Straw Pellet Making Plant

If you want to learn more about wood pellet production line cases and view videos, please contact us!

Packaging & Shipping

Your device will be packed well in a container and suit for long ocean shipping

Biomass Paddy Straw, Sawdust Shavings Wood Biofuel Machine, Complete Straw Pellet Making Plant

Company Profile

  Founded in 2003, Zhengzhou Jiutian is an enterprise with 200 employees committed to enhancing clients productively, profitability, and safety. Jiutian has developed more than 200 patented products for the drying machine.

  Jiutian Machinery products include biomass drying and pelletizing production line, feed dregs drying equipment, coal drying upgrading equipment, poultry manure drying equipment, coconut fiber, and coir drying machine, and related wood shaving machine, pellet machine, dehydration machine, carbonization furnace, etc.

  At present, Jiutian not only has a huge customer resource system and considerable market share in the country but also in the UK, Russia, Greece, Italy, Israel, Morocco, Congo, Côte d'Ivoire, Madagascar, Australia, India, Vietnam, Laos, Indonesia, Malaysia, Sri Lanka. In Chile, the United States and other countries have established a case of dryers and successfully put them into production, to achieve the quality and technology of dryer products and international standards.

Biomass Paddy Straw, Sawdust Shavings Wood Biofuel Machine, Complete Straw Pellet Making Plant

Biomass Paddy Straw, Sawdust Shavings Wood Biofuel Machine, Complete Straw Pellet Making Plant

Biomass Paddy Straw, Sawdust Shavings Wood Biofuel Machine, Complete Straw Pellet Making Plant
