Basic Info.
Model NO.
ZYQ series
Type
Liquid Gas Separator
Working Medium
Natural Gas, Drilling Fluid Gas
Transport Package
Exported Package/ Customer′s Require.
Trademark
Hondin
Origin
China
Production Capacity
10000pieces/Year
Product Description

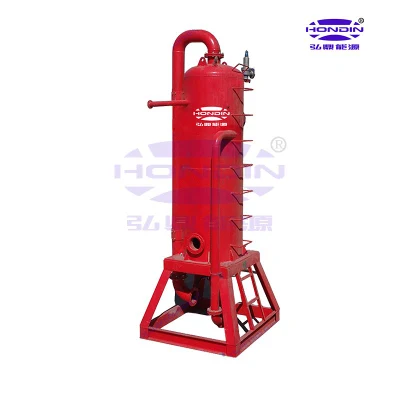

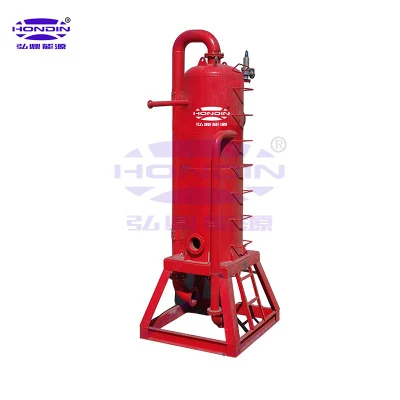

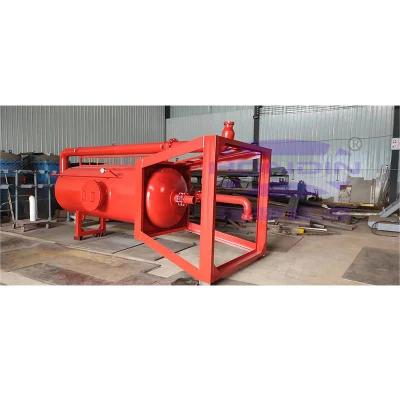

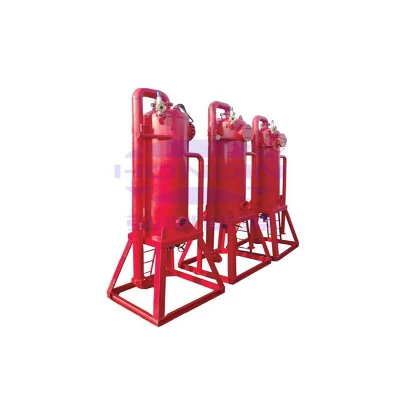

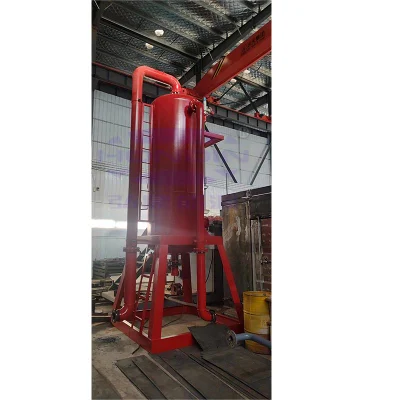

Hondin ZYQ series mud gas separator is the professional equipment to process the gas cutdrilling mud..The proportion and viscosity of the gas cut mud will emerge largedeviation, it can not meet the requirement of drilling. More seriously, it will resultin kick, even blowout accident occurred. Mud gas separator combined withignition device can be used to process the gas-cut drilling mud effectively andtimely.ZYQ series mud gas separator is divided into manual-control and auto-controlaccording to the operation method.
| Model | ZYQ800 | ZYQ1000 | ZYQ1200 |
| Main Body Diameter (mm) | 800mm | 1000mm | 1200mm |
| Treating Capacity (m3/h) | 180~260m³/h | 240~320m³/h | 260~380m³/h |
| Inlet Pipe | 5'' | 5'' | 5'' |
| Out Pipe | 6'' | 8'' | 10'' |
| Gas Dischaegr Pipe | 6'' | 8'' | 8'' |
| Weight | 1600kg | 2000kg | 2500kg |
| Dismensions | 1900*1900*5700mm | 2000*2000*5860mm | 2200*2200*6634mm |
