Basic Info.
Model NO.
20kl Semi Enclosed Skid-Mounted
Service
OEM, ODM
Certification
ISO 9001;UL;Atex, Pcec, ISO10012 etc.
Rated Volume
10kl~50kl
Number of Fuel Dispensers
1~2 Units
Net Weight
11500~22000kg
Temperature
-20ºC~40ºC
Manhole Diameter
500mm
Breather Valve
Negative Pressure-1.5kpa~2 Kpa, Positive Pressure2
Emergency Pressure Relief Valve
21 Kpa-32 Kpa
Separate & Explosion-Proof Material
IV Type
Power Supply Environment
Three-Phase Five Wires AC380V
Power
8~18kw
Transport Package
in Container
Specification
11000*2600*2700mm; 128000kg
Trademark
HAOSHENG
Origin
Jiangsu, China
Production Capacity
800sets/Year
Product Description

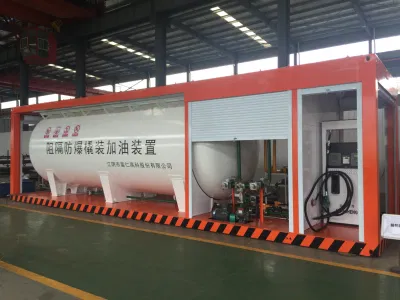

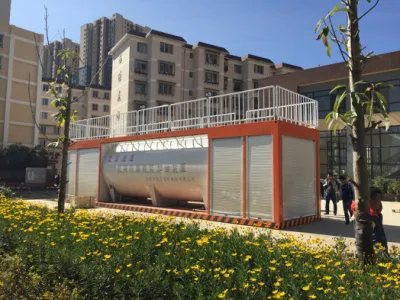

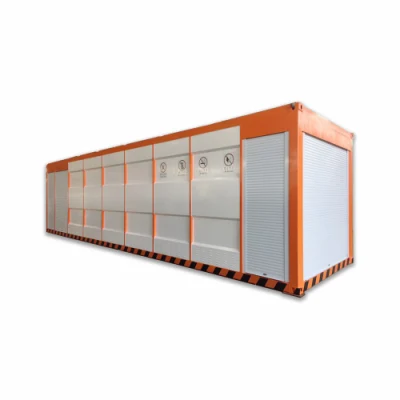

Furen HAOSHENG 20kl Semi Enclosed Structure Skid Mounted Refueling Device
Product Over
Separate and explosion-proof skid mounted fuel (gas) filling device is a ground fuel (gas) filling system integrating fire-proof oil (gas) storage tank, oil (gas) dispenser and automatic fire extinguisher, which is mainly used in equipment for storage and transportation of liquefied petroleum (gas), inflammable and explosive dangerous chemicals related to Separate and explosion-proof technology. Separate and explosion-proof series products have obtained independent intellectual property rights and independent product patents. The design, manufacture, installation and service safety of the Separate and explosion-proof skid mounted refueling device are completed independently.
Skid mounted refueling device is a kind of ground refueling device, which integrates load-bearing skid, explosion-proof storage tank, explosion-proof electrical control system, unloading oil circuit system, oil & gas recovery system,fuel dispenser and refueling pipeline control system, electrostatic grounding elimination system, automatic fire control system and monitoring control system.It is economical, practical, safe, explosion-proof, environmentally friendly, energy-saving, easy to move and it is a new scientific and technological products with all operation functions of general fuel stations.
Inside the storage tank of Separate and explosion-proof skid mounted oil filling device is equipped with support explosion-proof material framework steel structure, which is a double-wall storage tank filled with Separate and explosion-proof material. Inside the tank is equipped with liquid level meter (high & low level alarm, automatic stop), anti-overflow valve, on the top is set emergency pressure relief device, lightning protection and anti-static device, at the interlayer of the tank is set oil leakage monitoring device and the fuel dispenser is equipped with a variety of oil filling methods and high temperature automatic oil cut-off protection.
Functions of skid-mounted refueling device: oil storage, oil metering, oil filling, primary and secondary oil & gas recovery, tank cleaning & residual oil discharge, with multiple functions in one. The fuel filling device adopts the unit type standardized design and modular combination design, which is suitable for various fuel supply environments and meets the different needs of customers.
Product Highlights
Design Concept
1.AQ3002-2005
Separate and Explosion-proof Skid Mounted Fuel (Gas) Filling Device Technical Requirements AQ3002-2005
2.AQ3001-2005
Technical requirements of Separate and Explosion-Proof Storage Tank for Auto Fuel (Gas) Station,Light Fuel and LPG Vehicles AQ3001-2005
Main reference standards
1.GB50156-2012
Code for Design and Construction of Filling Station GB50156-2012
2.SH/T3134-2002
Technical Specification for Portable Filling Device in Automobile Filling Station SH/T3134-2002 (Recommended standard for petrochemical industry)
3.GB20952-2007
Emission Standard of Air Pollutant for Gasoline Filling Stations GB20952-2007
Technical Parameters
Parts
Certification

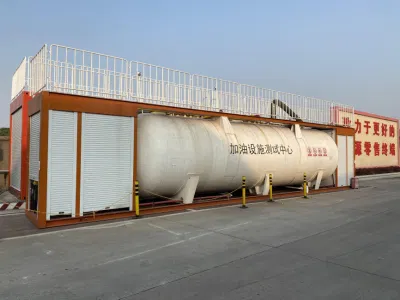

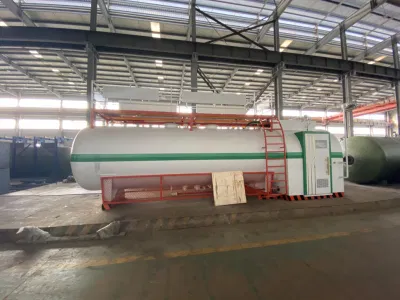

![Furen Haosheng 20kl Semi Enclosed Structure Skid-Mounted](//img6.grofrom.com/www.gasruitagroup.com/226f3j00AWiQZaNCZfre/Furen-Haosheng-20kl-Semi-Enclosed-Structure-Skid-Mounted.webp)
![Furen Haosheng 20kl Semi Enclosed Structure Skid-Mounted](//img6.grofrom.com/www.gasruitagroup.com/226f3j00mVhEZfybZGuB/Furen-Haosheng-20kl-Semi-Enclosed-Structure-Skid-Mounted.webp)
![Furen Haosheng 20kl Semi Enclosed Structure Skid-Mounted](//img6.grofrom.com/www.gasruitagroup.com/226f3j00miVTjgOArUuB/Furen-Haosheng-20kl-Semi-Enclosed-Structure-Skid-Mounted.webp)
![Furen Haosheng 20kl Semi Enclosed Structure Skid-Mounted](//img6.grofrom.com/www.gasruitagroup.com/226f3j00dVlaSINthRzM/Furen-Haosheng-20kl-Semi-Enclosed-Structure-Skid-Mounted.webp)
FAQ
Q1: Are you trading company or manufacturer ?Where is your company located?
>> We are factory. Our company is located in Jiangsu, China.√
Q2: Can I visit your company?
>> Welcome to visit our factory and it is our great pleasure.√
Q3: OEM OR ODM accepted?
>> Yes, we can do OEM & ODM, logo on the light or package both is available.√
Q4: What certificate do you have?
>> We was certified ISO9001, ISO14001, ISO10012, OHSAS18001, UL, ATEX, etc.√
Q5:How can I get more details of the deal ?
>> Please write down all your questions. And click send, we will reply you by mail in 24 hours.√
[ We are seeking cooperation with overseas agents, if you have intentions, please contact us. ]
Product Over
Separate and explosion-proof skid mounted fuel (gas) filling device is a ground fuel (gas) filling system integrating fire-proof oil (gas) storage tank, oil (gas) dispenser and automatic fire extinguisher, which is mainly used in equipment for storage and transportation of liquefied petroleum (gas), inflammable and explosive dangerous chemicals related to Separate and explosion-proof technology. Separate and explosion-proof series products have obtained independent intellectual property rights and independent product patents. The design, manufacture, installation and service safety of the Separate and explosion-proof skid mounted refueling device are completed independently.
Skid mounted refueling device is a kind of ground refueling device, which integrates load-bearing skid, explosion-proof storage tank, explosion-proof electrical control system, unloading oil circuit system, oil & gas recovery system,fuel dispenser and refueling pipeline control system, electrostatic grounding elimination system, automatic fire control system and monitoring control system.It is economical, practical, safe, explosion-proof, environmentally friendly, energy-saving, easy to move and it is a new scientific and technological products with all operation functions of general fuel stations.
![Furen Haosheng 20kl Semi Enclosed Structure Skid-Mounted](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00NVhQjdnsMRrC/Furen-Haosheng-20kl-Semi-Enclosed-Structure-Skid-Mounted.webp)
Inside the storage tank of Separate and explosion-proof skid mounted oil filling device is equipped with support explosion-proof material framework steel structure, which is a double-wall storage tank filled with Separate and explosion-proof material. Inside the tank is equipped with liquid level meter (high & low level alarm, automatic stop), anti-overflow valve, on the top is set emergency pressure relief device, lightning protection and anti-static device, at the interlayer of the tank is set oil leakage monitoring device and the fuel dispenser is equipped with a variety of oil filling methods and high temperature automatic oil cut-off protection.
Functions of skid-mounted refueling device: oil storage, oil metering, oil filling, primary and secondary oil & gas recovery, tank cleaning & residual oil discharge, with multiple functions in one. The fuel filling device adopts the unit type standardized design and modular combination design, which is suitable for various fuel supply environments and meets the different needs of customers.
Product Highlights
![Furen Haosheng 20kl Semi Enclosed Structure Skid-Mounted](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00PIYTCLBHsdgf/Furen-Haosheng-20kl-Semi-Enclosed-Structure-Skid-Mounted.webp)
Design Concept
- People Oriented
- Security and Reliable
- Environmental Protection and Energy Saving
- Convenient Maintenance
1.AQ3002-2005
Separate and Explosion-proof Skid Mounted Fuel (Gas) Filling Device Technical Requirements AQ3002-2005
2.AQ3001-2005
Technical requirements of Separate and Explosion-Proof Storage Tank for Auto Fuel (Gas) Station,Light Fuel and LPG Vehicles AQ3001-2005
Main reference standards
1.GB50156-2012
Code for Design and Construction of Filling Station GB50156-2012
2.SH/T3134-2002
Technical Specification for Portable Filling Device in Automobile Filling Station SH/T3134-2002 (Recommended standard for petrochemical industry)
3.GB20952-2007
Emission Standard of Air Pollutant for Gasoline Filling Stations GB20952-2007
Technical Parameters
Outline Size(Excluding height of guardrail) | Length | 6000~14500mm |
Width | 2000~3200mm | |
Height | 2200~3600mm | |
Rated Volume | 10kl~50kl | |
Number of fuel dispensers | 1~2 units | |
Net weight | 11500~22000kg | |
Temperature | -20ºC~40ºC | |
Manhole diameter | 500mm | |
Breather valve | Negative pressure-1.5Kpa~2 Kpa, Positive pressure2~3 Kpa | |
Emergency pressure relief valve | 21 Kpa-32 Kpa | |
Separate & explosion-proof material | IV Type | |
Paint | 2 coats of epoxy zinc-rich primer + 2 coats of polyurethane acrylic top coat | |
Power supply environment | Three-phase five wires AC380V | |
Power | 8~18kw |
Parts
No. | Part Name | Quantity |
1 | Frame assembly | 1 |
2 | SS double-layer oil storage tank | 1 |
3 | Explosion suppression materials | 20 |
4 | Double pump double gun fuel dispenser | 2 |
5 | Unloading pipeline assembly | 2 |
6 | Unloading pump | 2 |
7 | Oil and gas recovery pipeline assembly | 2 |
8 | Fuel line assembly | 4 |
9 | Explosion-proof control box | 1 |
10 | Explosion-proof magnetostrictive liquid level probe | 2 |
11 | Static grounding alarm | 2 |
12 | Flammable gas detection | 1 |
13 | Explosion-proof lamp (with junction box) 220VAC | 2 |
14 | Explosion-proof threading pipeline assembly | 1 |
15 | Automatic fire extinguisher | 1 |
16 | Sealing plate assembly | 1 |
17 | Guardrail assembly | 1 |
18 | Roller shutter door assembly | 7 |
19 | paint | 1 |
20 | Sticker logo | 2 |
