Gas Fired Radiant Heater Tube Furnace Tube

Shop our high-quality Gas Fired Radiant Heater Tube Furnace Tube for efficient, reliable heating solutions. Proudly made in our factory.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
57-1200mm
Thickness
8-20
Finish
Casting & Sand Blast or Finished Machining
Process
Spun Cast/Centrifugal Cast
Length
Customed
Roughness
Customed
Common Material
1.4848,1.4849,1.4855,2.4879,Umco50
Type Model
I Type; U Type; W Type; P Type,
Transport Package
Wooden Box
Specification
57-300
Trademark
RUIYANG
Origin
China
HS Code
84179090
Production Capacity
5000t/Year

Product Description

Metal Casting Heat resistant steel pipe Centrifugal casting tube supplied
 Radiant Tubes:

item electricity heated radiant tubes welded by centrifugal casting with material 1.4848, 1.4849, 1.4855,2.4879,etc
Process Centrifugal/spun casting method for tube sections, investment casting for the elbows or bends ,hangers, welding and machining.
Shapes U-type, W-Type, 0-Type, P-type, L-Type,S-Type, Straight-type, Electric radiant tubes.
Material ZG40Cr25Ni20Si2,ZG40Ni35Cr25Nb,ZG45Ni48Cr28W5Si2,1.4848,1.4852,2.4879 or as per customer's requirements.
Application The radiant tubes are  working at high temperature environment  on average: 800-1200ºC,
most of them are  used for indirect heating to furnace  like  CAL(continuous annealing line)
CGL,(Conginious galvanizing line).
Specifications Outer diameter: 60-2400mm
Thickness: 5mm,6mm,7mm or customized
Length: as per your request
Test Chemical analysis by spectrometer for each heat,eddy current test,pressure test ,thickness test , PT 100%(liquid penetrant test),VI(visual inspect)100%,dimensional check.

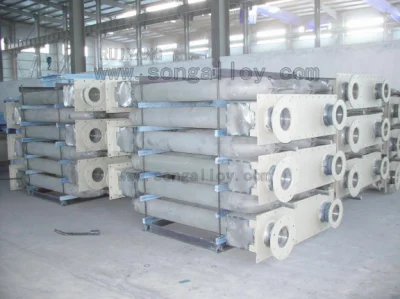

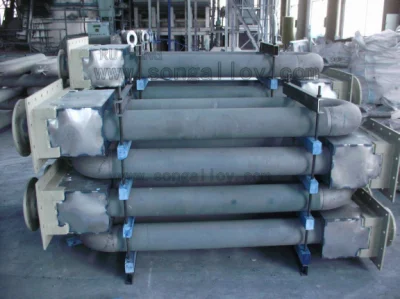

Products U radiant tubes
W radiant tubes
Straight radiant tubes

Electricity radiant tubes
Special radiant tubes

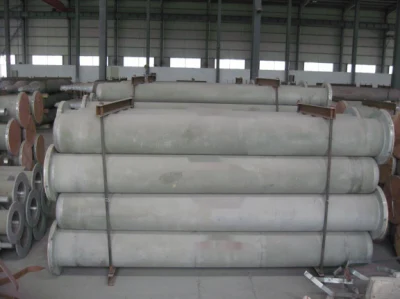

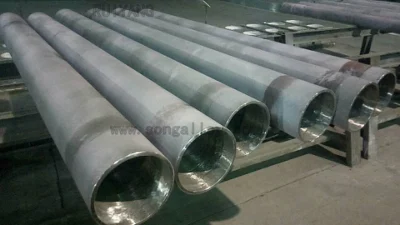

heat-resistant steel reformer pipe tubes:

Casting Centrifuge heat resistant steel Reformer Tubes for sale

max dia1200mm furnace tube supply
Manufacturing standards: HG/T 2601, ASTM A608, DIN 10295,JIS G5122, etc or as per clients' drawing and design
Reformer tube Sizes reformer tubes OD100mm-OD300mm, wall thickness:8mm-20mm
inlet manifold OD100mm-OD400mm,wall thickness 10mm-40mm
outlet manifold OD300mm-OD1200mm,wall thickness 10mm-30mm;
( including refractory )
up/down pigtail tubes customed
Static casting: Reducer for reformer tube and manifold, hanger
Rolled and welding tube/pipe: machined by outsourced tube/pipe
Manufacturing process Centrifugal casting, Static casting and precision casting
Package: plastic and woven pack or wooden box
Payment: TT30% down payment the balance before carrying &Mill test Certificate supplied
Certificate Mill test Certificate supplied or the third party such as SGS,BV etc checking accept

welcome to contact us for inquiry!

Application of Chinese Centrifugal casting heat-resistant steel :

The reformer tube used on hydrocarbon steam reforming furnace is widely used in oil refinery, chemical plant and metallurgy industry such as DRI plant.
The petrochemical industry has a big demand for hydrogen. Over 90% of global refineries and chemical plants produce hydrogen by hydrocarbon steam reforming process.
Hydrocarbon steam reforming furnace includes: inlet manifold, reformer tubes, outlet manifold and up/down pigtail tubes. Reformer tube is produced by centrifugal casting.
Gas Fired Radiant Heater Tube Furnace TubeGas Fired Radiant Heater Tube Furnace TubeGas Fired Radiant Heater Tube Furnace TubeGas Fired Radiant Heater Tube Furnace TubeGas Fired Radiant Heater Tube Furnace TubeGas Fired Radiant Heater Tube Furnace Tube

Parts of common Grades of Casting Centrifuge Stainless Alloy Reformer Radiant Tubes for sale( below chart:)

Grade

Corresponding grade

HG/T

DIN/EN

ASTM

JIS

NH25-20

ZG40CR25NIZ0SI2

GX40CRNISI25-20

1.4848

HK40

SCH22

NH20-32NB

ZG14NI32CR20NB

GX10NICRSINB32-30

1.4859

CT15C

SCH34

NH25-35NB

ZG50NI35CR25NB

GX40NICRSINB35-26

1.4852

HP50+NB

SCH24XNB

NH25-35MIC

ZG50NI35CR25NB

GX45NICRNB35-25

1.4856

HP50+NB(MA)



NH25-35W

Z50NI35CR25EW4



HP50+W



NH28-48-5W

ZG45NI48CR28W5SI2

G-NICR28W

2.4879

NA22H

SCH42

NH30-40-5AL



NH35-45MIC

ZG50NI45CR35NBM

GX45NICRSINB45-35

1.4889



NU25-35-15CO

ZG50NI35CR25CO15W5



NH33-48-15W




UMCO50



Features of Centrifugal casting pipes:

1). Heat-Resistance and the finish quality is good for centrifugal casting

2). corrosion resistance, especially pitting resistance is excellent;

3). Size various

4).Produce quickly,soonest delivery

Should you are interested in our products, take action to buy or wholesale the quality radiant tubes for sale in stock from our factory. Shaanxi Ruiyang, as one of the leading manufacturers and suppliers in China, has various sizes of products with competitive price at your choice.
