Basic Info.
Condition
New
Certification
ISO, CE
Name
Gas Regulator
Max Pressure
1MPa
Outlet Pressure
1-100kpa
Size
DN50
Flanged
Class150
Transport Package
Wooden Case
Specification
ordinary
Trademark
CT
Origin
China
HS Code
8481100090
Production Capacity
50000
Product Description

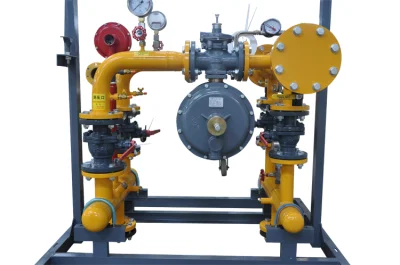

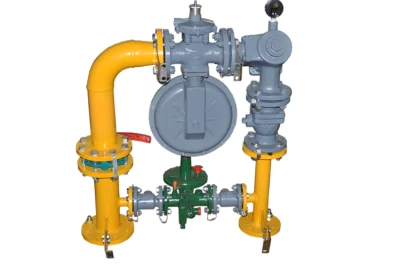

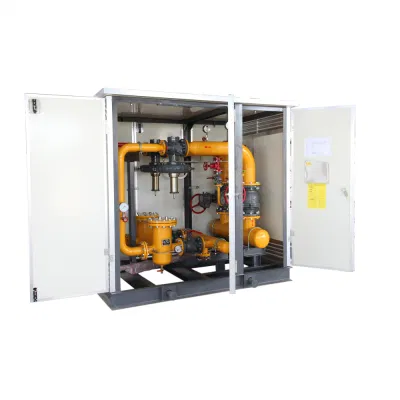

500Nm3/h Factory of Gas Pressure Regulating Box
This series of pressure regulating boxes are mainly used in medium and low pressure gas transmission and distribution systems. It is composed of filter, pressure regulator (self-shut off, release function), ball valve, pressure gage and box; it has compact structure, convenient maintenance and safety usage. It is suitable for civil buildings, small-area, and medium-sized user sites such as apartment houses, hotels, and restaurants; it can also be used for low-pressure gas boilers and small direct-fired turbines. Box is manufactured by stainless steel, cold-rolled steel spray, and glass steel.
KEY BENEFITS
Modular Structure Design
Big Flow, Fast Response, High Accuracy
Overpressure Shut-off
Low Requirement of Gas Cleanliness
Easy Installation and Adjustment, Convenient Maintenance
Online Maintenance
DATA SHEET
Maximum Inlet Pressure: 25MPa
Outlet Pressure Range: 0.1-5Mpa
Accuracy Class: AC10
Lock-up Pressure Class: SG15
Working Temperature: -19 ~ +60ºC
Specs: DN50, DN80, DN100, DN150
Our sale network spread all over the country and exporting to abroad. We are high quality supplier of China National Petroleum Corporation, China Petroleum& Chemical Corporation, China Resources Gas, PetroChina Kunlun Gas Ltd, Shenzhen Gas Corporation Ltd, Chengdu City Gas, Chongqing Gas Corporation Ltd. As good quality and service to became each gas group's training base for regulator equipment care and maintenance, set up good industry brand position.
This series of pressure regulating boxes are mainly used in medium and low pressure gas transmission and distribution systems. It is composed of filter, pressure regulator (self-shut off, release function), ball valve, pressure gage and box; it has compact structure, convenient maintenance and safety usage. It is suitable for civil buildings, small-area, and medium-sized user sites such as apartment houses, hotels, and restaurants; it can also be used for low-pressure gas boilers and small direct-fired turbines. Box is manufactured by stainless steel, cold-rolled steel spray, and glass steel.
KEY BENEFITS
Modular Structure Design
Big Flow, Fast Response, High Accuracy
Overpressure Shut-off
Low Requirement of Gas Cleanliness
Easy Installation and Adjustment, Convenient Maintenance
Online Maintenance
DATA SHEET
Maximum Inlet Pressure: 25MPa
Outlet Pressure Range: 0.1-5Mpa
Accuracy Class: AC10
Lock-up Pressure Class: SG15
Working Temperature: -19 ~ +60ºC
Specs: DN50, DN80, DN100, DN150
Our sale network spread all over the country and exporting to abroad. We are high quality supplier of China National Petroleum Corporation, China Petroleum& Chemical Corporation, China Resources Gas, PetroChina Kunlun Gas Ltd, Shenzhen Gas Corporation Ltd, Chengdu City Gas, Chongqing Gas Corporation Ltd. As good quality and service to became each gas group's training base for regulator equipment care and maintenance, set up good industry brand position.
