High Quality Pigging Recovery Systems for Pharmaceutical Industry

Purpose of automatic recovery system

;;;;.

· Reduce the loss of useful semi-finished products;
· Reduce the pipeline discharge time;
· Reduce the loss of pipeline cleaning water;
· Reduce the loss of pipeline cleaning agent;
· Reduce the discharge of cleaning wastewater.

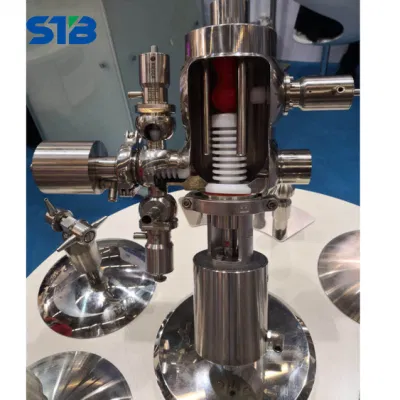

Main accessories of automatic material recovery system

:(Pigging,),,120°(3-way 120° Pig Launch Valve),,(2 , 1 , 1 ).

The main spare parts are as follows:
pigging ball,  launcher,  3-way 120 ° pig launch valve,  receiver,  cleaning ball detector (2 sets, 1 set of launcher and 1 set of receiver).




One-Way System
Single-Loop System
Double-Loop System
Ring System

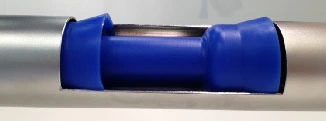

- Flexible lips -> dynamic sealing
- Suitable for standard bends R= 1,5xD
- Tolerates little changes in diameter of pipe
- 3A & EHEDG approved

* 1.5 x D standard bends
  -> suited also for existing piping
  -> lower installation costs for piping
* HYGIENIC design
 -> 3A & EHEDG approved components
 -> pig only temporarily in the product flow

* Robust & Reliable
 -> low wearing on pig due to dynamic sealing
 -> easy operation (manual or fully automated)
