High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant

High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant offers top-of-the-line machinery for manufacturing durable wall panel corners. Get yours now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Product Details
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
FG
Certification
CE, ISO9001:2008
Customized
Customized
Processing Material
PVC Powder or Granules
Application
Produce PVC Waterstop
Screw Type
Conic Twin Screw
Feeding Mothed
Dosing Feeding System
Apply to Size
1 to 400mm
Low Pressure Electrics
Schneider
Motor
Siemens
Inverter
ABB
Transport Package
Woodbox with Film Wrapped
Specification
120~400mm
Trademark
Faygo
Origin
Jiangsu Suzhou
HS Code
84778000
Production Capacity
100sets Per Month

Product Description

Product Description

High-Quality PVC Cladding Wall Panel corners Profile Extrusion Equipment Plant

High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant
Plastic profile extrusion machine features
Plastic profile extrusion machine can produce various shapes of plastic profile products, including but not limited to:


1.Building materials such as PVC window frames, door frames, wall corners, floors, ceilings, partition boards, etc.
2.Packaging materials such as PE/PP pipes, sheets, films, nets, containers, buckets, boxes, etc.

3.Consumer goods such as ABS/PS/LDPE car interiors, household appliance shells, toys, stationery, shoe materials, mats, etc.

4.PVC/PE drainage pipes, cables conduits, and other pipeline materials.

5.PVC/PE irrigation pipes, sewage pipes and other agricultural and environmental protection materials

6.This line consists of a screw feeder, a conical twin-screw extruder, a T-die, a vacuum setting table, a haul-off machine, a cutting machine and a stacker.

Since the plastic profile extrusion machine has adjustable molds and extruders, it can customize various shapes of plastic profile products according to customer requirements, which is relatively flexible.


High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant
High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant

Product Parameters

Plastic Profile production line Technical data:

Model YF180 YF240 YF300 YF600
Max product width(mm) 180 240 300 600
Exreuder model SJZ55/110 SJZ65/132 SJZ65/132 SJZ80/156
Extruder power(kw) 22 30/37 37 55
Cooling water(m3/h) 5 7 7 10
Gas consumption(m3/min) 0.2 0.3 0.3 0.4


Equipment list of  Profile Extrusion Making Machine

Compulsory devices
1 Material charge 1 set
2 Single/Conical twin screw extruder/  1 set
3 Extrusion die head 16-400m
4 calibrating and cooling table 1 set or several sets
5 caterpillars hauling off machine 1 set
6 Saw cutting machine 1 set
7 stacker-6000mm length or colier 1 set
8 Electrical cabinet(ABB, Omron, RKC, Schneider etc) 1 set
9 Spare parts 1 set
Optional Devices
1 High speed hot and cold mixer 1 set
2 Crusher 1 set
3 Industrial water chiller 1 set
4 Air compressor 1 set
5 Thermocontroller for die head 1 set
Payment, delivery and after sales services
1 Payment terms 30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable
2 Delivery time 60 days after receipt of prepayment
3 Packing method Wooden cases/pallets with stretching films
4 Guaranteed time 18 months for mechanical parts, 12 months for electrical parts
5 After sale service Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable
6 Contact information



Product Details

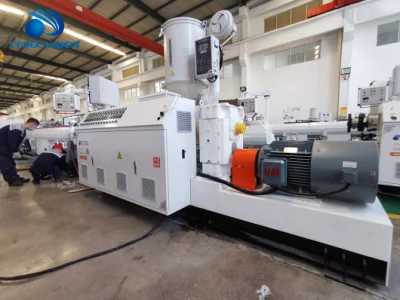

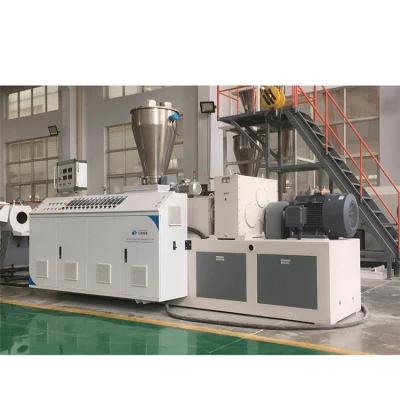

Extruder:

This PVC/WPC profile extrusion line adopt conic twin screw extruder, which has degassing system to ensure the excellent material plasticization. The mold and calibrator adopt wearable material; the haul-off machine and cutter machine could be designed as complete unit or separate machine.
High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant



High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant

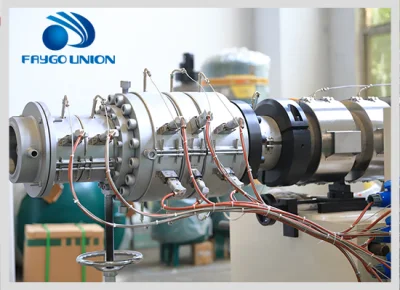

Extrusion Mould:

Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality PVC soft profiles. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the PVC profiles fast calibrated and cooled.

Spraying and cooling tank:

Rapid calibrating system allows the hot extruded PVC frofile to be cooled in a very short time and obtain the final size. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the sizing and cooling performance as well as the production speed.
High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant
High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant

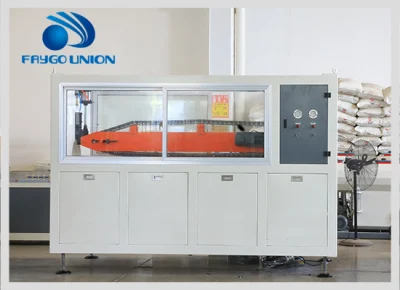

Haul off machine:

Adopts caterpillar type suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

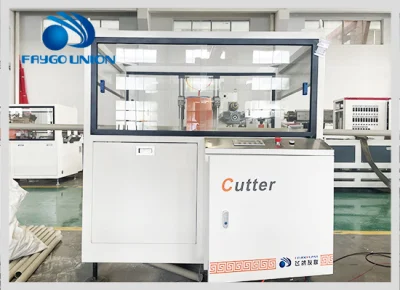

Cutting machine:

Precision machine cutter is able to make flat, straight cuts at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.



High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant

High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant
Stacking or coiler:

Automatic stacking with fixed length




High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant


Company Profile

High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant
Jiangsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.

Stick to the company idea is making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Warmly welcome to visit our factory (next to Shanghai)!



High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant

High-Quality PVC Cladding Wall Panel Corners Profile Extrusion Equipment Plant

FAQ


Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.

Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.

Q: What is the ability of your factory?
A: About 100 lines per month.

Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.

Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.
