100 HP Skid-Mounted Type Oil & Gas Fired Steam Boilers for Rent

100 hp Skid-Mounted Type Oil & Gas Fired Steam Boilers For Rent

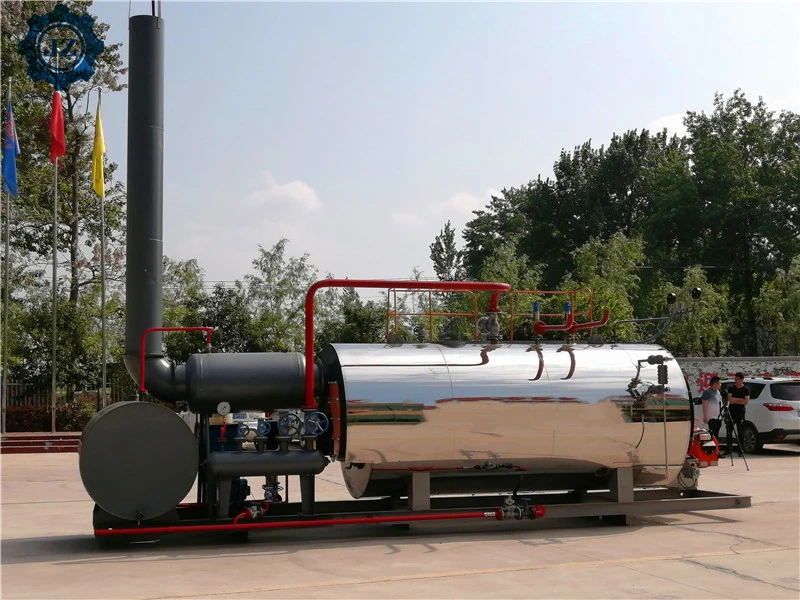

What is a skid-mounted boiler?

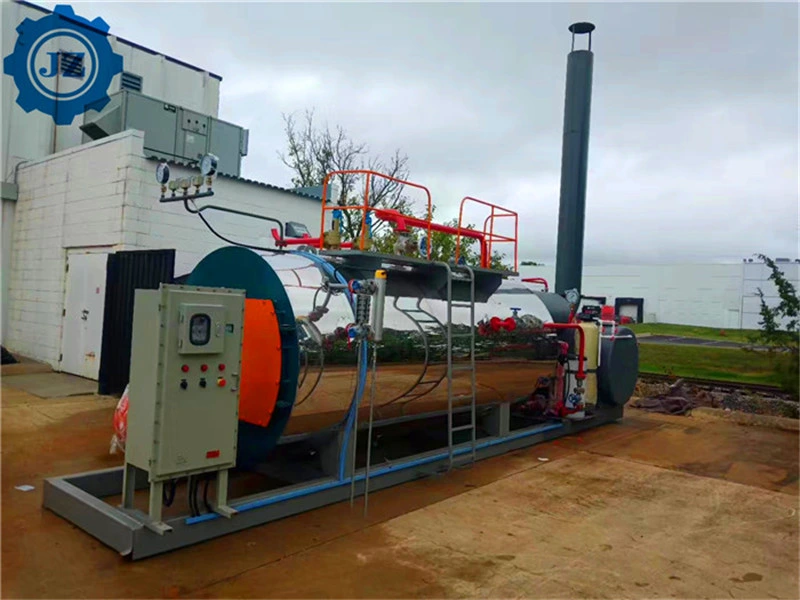

Skid Mounted Gas or Oil Fired Steam Boilers are one of the boiler system. For skid mounted boiler system, boiler factory install the boiler not in the boiler room of user. The boilers are installed in one strong steel plate. In this way, this gas or oil fired steam boiler can be transported to user without any other installation job. User can use this boiler directly. Using skid mounted gas or oil steam boilers, user just need to connect the boiler with water source, electricity and fuel source, then it can work. it is an ideal boiler system for foreign trade and movable requirement situation.

Structure:horizontal fire tube, wet back, three pass
Steam Capacity:1-20ton/hour
Steam Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
Steam Temperature:184 °c,194°c, 204°c,226°c(As long as the steam temperature you need is lower than 226°c, we can do it).
Fuel:heavy oil, light oil, natural gas, city gas, lpg,lng,etc
Application: textile mill, food, beer and brewery factory,chemical industry, garment factory, printing mill, paper masking industry,milk pasteurization, pharmaceutical industry etc

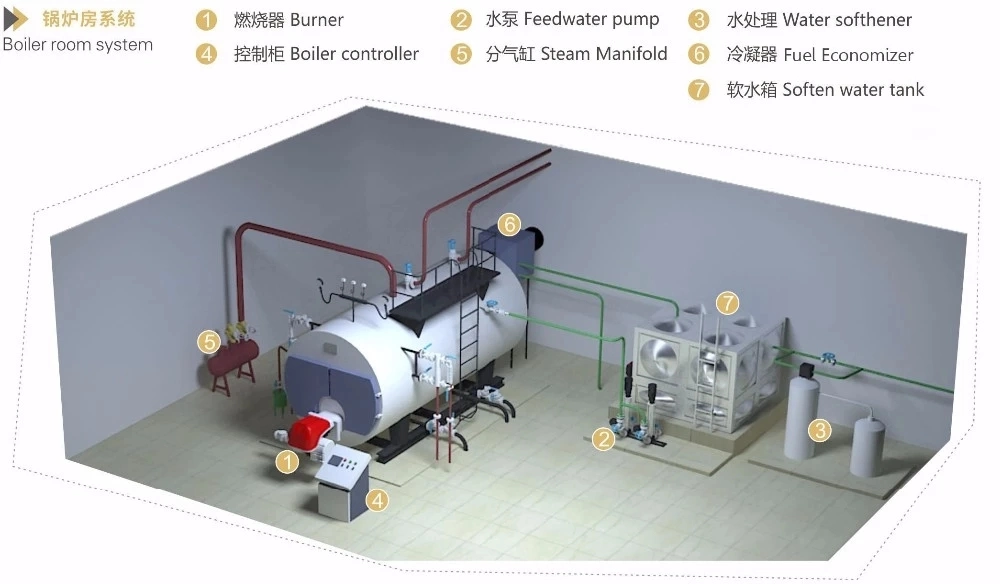

steam boiler process flow diagram

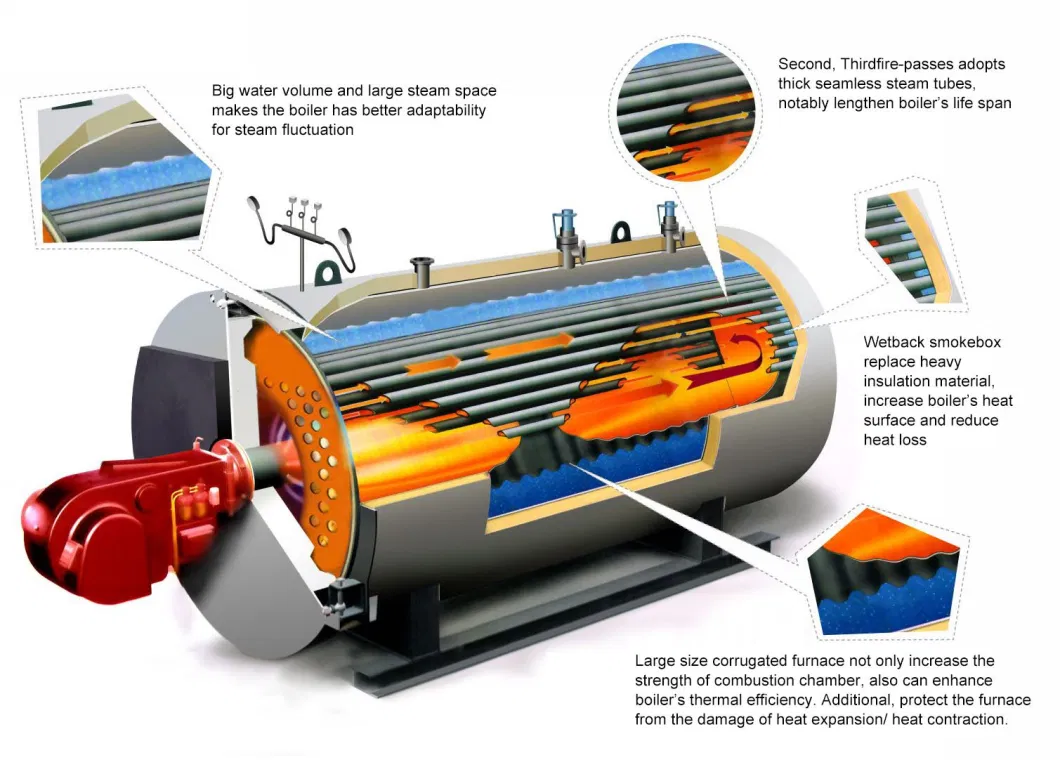

WNS series oil/gas fired boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patented thread pipe technology,equipped with international first-level brand burners and valve groups,and independently developed high-matching PLC control system to realize muitiple linkages.Skid Mounted Boiler Rooms are pre-assembled packages that save installation time and on-site costs. Each package is compact, easily transported and quickly installed. The systems can be supplied from our standard range or specially built to the customers'requirements. Fully automatic control can be included as well as monitoring devices, feedwater conditioning and all the necessary fittings, pipework and electrical wiring.

1. Boiler proprietary technology
Full wet backburn chamber, backburn chamber and back tube plate butt joint, boiler full butt welding, stress, more reliable quality.
2, large diameter corrugated furnace
The boiler combustion chamber is composed of a large diameter full ripple furnace with large combustion space, complete fuel combustion, effective heat absorption expansion and large radiation heating surface.
3. Sufficient heat
The heating area of the boiler is designed and configured according to ≥25m2/ steam ton, fully absorbing effective heat, low smoke exhaust temperature, small heat loss, ensuring sufficient output and efficiency
4. High quality steam
Large pot shell diameter, large water capacity, strong adaptability to load changes, stable output;The steam space volume is large, the net distance between the soda interface and the steam outlet is high enough, and the steam humidity is low.
5. Safe precipitation time is sufficient
The boiler combustor is arranged in a low position, the water level is determined in accordance with the regulations, and the water level fluctuation time is strictly in accordance with the international general norms and standards, with sufficient safe precipitation space, to ensure the operation safety of the boiler

Container model is a mobile boiler room with the measurements of a 20-feet Standard sea container or an insulated container made to order, ready to connect and operate.
Model: industrial gas oil fired steam boiler
The container is equipped with all the elements of a complete boiler room with steam boiler including water treatment equipment, flash vessel and all the indoor water, steam, condensate return and electrical installation and pipes.
Our factory supplies the complete INDUSTRY STEAM BOILER SYSTEM: Boiler body, Burner, Water pumps, Water treatment, Deaerator, Valves, Economizer, Chimney, etc.All spare parts offered under factory price.

-Providing steam for industrial fields: food/juice mills, paper mills, pharmacy mills, tobacco factories, printworks, textile mills and so on;
-Providing steam for civil fields: restaurants, laundries, hospitals, saunas, etc;
-Together with steam-water heat exchangers (calorifiers), providing heating for central air conditioning system and radiators; providing continuous hygienic hot water.
Mobile boiler, integrated by boiler and main auxiliaries, customer do not need to install. At present, the whole series of boilers can be integrated, accessories can also be replaced for your needs

Pre-sale Service

1. Provide free boiler selection service to provide you with a more suitable boiler and improve your production.
2. Free boiler operation cost calculation helps you calculate the boiler production and operation cost and save fuel cost.
3. Design environmental protection scheme free of charge to ensure that the local environmental protection policy is met.

1. Provide you with comprehensive and professional technical support, help you solve all boiler problems, and repair the boiler system for you.
2. Provide you with an online delivery service, and you can see your delivery in real-time.
3. Provide you with a production tracking service, and you can regularly understand your boiler production process.
4. Provide you with installation and commissioning services, and you can quickly arrange for the factory to be put into operation.

1. 12 months from the date of bill of lading: if the equipment fails within the warranty period, we will provide warranty services for the products sold.
2. During the warranty period, free warranty service (including some accessories) can be obtained for faults due to equipment quality or non-Party A's reasons
3. Remote support: if the boiler has problems during use, remote technical support can be provided.

1. What is the thickness of combustion chamber?

the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.

2. What is the advantages of industrial steam boiler?

This fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement, and the failure rate of it is lower than 0.1!

3. Details of electric control cabinet.

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

4. What is the inlet pressure of gas burner?

The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
