Industrial Soybean Waste Heat Drying Plant

Discover how our Industrial Soybean Waste Heat Drying Plant can optimize your factory's operations. We are experts in sustainable drying solutions.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product feactures
  • Detailed Images
  • Our Advantages
  • Product Parameters
  • Packaging & Shipping
  • Company Profile
  • Related product
Overview

Basic Info.

Model NO.
1500*15000mm
Material Status
Powder, Cream, Bulk
Drying Medium
Air
Operation Pressure
Atmospheric Pressure
Operational Method
Continuous
Name
Industrial Soybean Waste Heat Drying Plant
Keywords
Sludge Rotary Dryer
Application
Animal Dung Waste Dryer
Spare Parts
1 Years
Raw Material Moisture
20-80%
Certification
CE/ISO
Temperature
600-1100
Transport Package
Wooden Case
Specification
1800*18000MM
Trademark
Baoyuan
Origin
Henan
HS Code
8419399090
Production Capacity
50 Sets/Year

Product Description

Product Description

Biomass energy is second only to coal, oil and natural gas one of the world's total energy consumption 4th.According to experts predict that biomass energy is likely to become an important part of the future sustainable energy system, at the middle of this century, using new technology to produce all kinds of biomass alternative fuels will account for more than 40% of total global fuel consumption.Because the biomass as fuels has no contamination, and other significant characteristics of renewable, thus it increasingly brought to the attention of the countries.
Industrial Soybean Waste Heat Drying Plant

Product feactures

Industrial Soybean Waste Heat Drying Plant1.Special design ash control technology, ash content lower than 1%.

2.Modular dust collecting and purifying heat recycling configuration, safe and protect environmental.

3.This type mixing drum dryer is supporting many new type energy-saving hot air stove,energy consumption drop about 30%,power consumption reduce 20%,lower operation costs.

Industrial Soybean Waste Heat Drying Plant

Detailed Images



Industrial Soybean Waste Heat Drying Plant
Ring gear pull plate
The spring plate is connected with the drum body by welding. The spring plate supports the large gear by its own strength. Due to the principle of thermal expansion and cold contraction, the machine position is easily displaced, and the spring plate plays a role of protection and correction.
cylinder
Our company adopts mechanization to accurately check the concentricity of the dryer, which makes the connection and installation of the dryer more accurate.
Industrial Soybean Waste Heat Drying Plant
Industrial Soybean Waste Heat Drying Plant
Lifting plate
Our company adopts the combined lifting plate, which can disperse the material, clean the cylinder wall, improve the drying efficiency and increase the output. The style and angle can be designed according to different materials.
Our Advantages

The dryer is suitable for chicken manure, cow dung, feces organic fertilizer, sludge, bean dregs, starch residue, sauce residue, sprayed corn kernels, cassava residue, beer distiller's grains, lees, straw, pasture and other 30-85% moisture content of material Drying. At the same time, this dryer is also suitable for wood chips, biomass, sludge, river sand, aggregates, coal, silica sand, straw, asphalt, organic fertilizer, beer residue, distiller's grains, mineral powder, etc.

Industrial Soybean Waste Heat Drying Plant
Product Parameters



Type Gradient(%) Speed(r/min) Inlet air temperature Power(KW) Production(t/h) Weight(t)
600*6000 3-5 3-8 ≤700 3 0.5-1.5 2.9
800*8000 3-5 3-8 ≤ 700 4 0.8-2 3.5
800*10000 3-5 3-8 ≤700 4 0.8-2.5 4.5
1000*10000 3-5 3-8 ≤ 700 5.5 1-3.5 5.6
1200*10000 3-5 3-8 ≤ 700 7.5 1.8-5 14.5
1200*12000 3-5 3-8 ≤ 700 11 2-6 15.8
1500*12000 3-5 2-6 ≤ 700 15 3.5-9 17.8
1800*12000 3-5 2-6 ≤ 700 18 5-12 25
2200*12000 3-5 2-6 ≤ 700 18.5 6-15 33
2200*18000 3-5 2-6 ≤ 700 22 10-18 53.8
2200*20000 3-5 2-6 ≤ 700 30 12-20 56
2400*20000 3-5 2-6 ≤ 700 37 18-30 60
3000*20000 3-5 2-6 ≤ 700 55 25-35 78
3000*25000 3-5 2-6 ≤ 700 75 32-40 104.9

Industrial Soybean Waste Heat Drying Plant

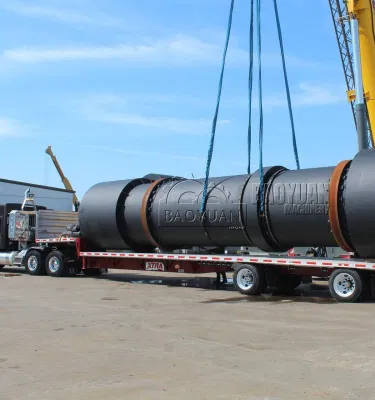

Packaging & Shipping



Industrial Soybean Waste Heat Drying Plant
Company Profile

Baoyuan Machinery is a comprehensive enterprise that comprises R& D, test, manufacture, sales and service functions. We have succeeded in researching and supplying solutions with the following equipment: Drying equipment, activated carbon production equipment, building materials equipment, beneficiation equipment, crushing equipment and other products.

With our leading-edge technologies, advanced processing equipment and our corporate spirit of "innovation, pragmatism, unity, hard work and dedication", our company has the strength to meet the challenges from all aspects. We have the confidence to build "Baoyuan" into a world-renowned brand, provide quality services for the dryer and building processing industry, and achieve a win-win situation between the company and customers.
