Basic Info.
Model NO.
PT-ID01
IP Rating
IP68
Certification
CE
Customized
Customized
Protection Degree
IP65
Housing Material
Stainless Steel, Brass, Aluminium for Option
Output Signal
4 - 20mA. 2-Wire
Name
Pressure Sensor
Transport Package
Carton
Specification
3*3*7cm
Trademark
bingo
Origin
China
Production Capacity
10000
Product Description

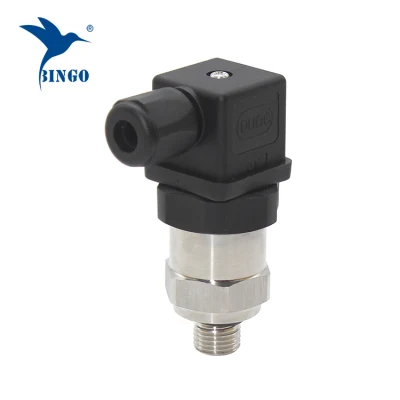

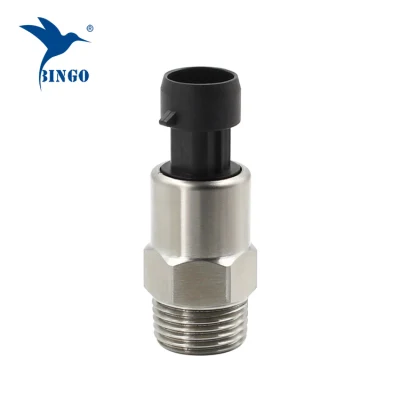

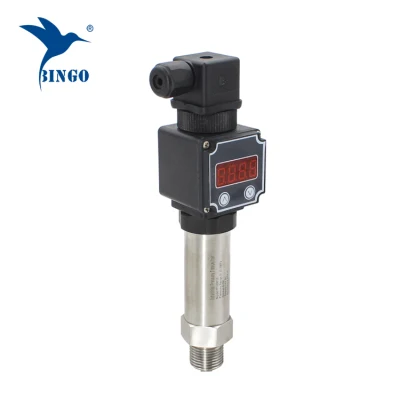

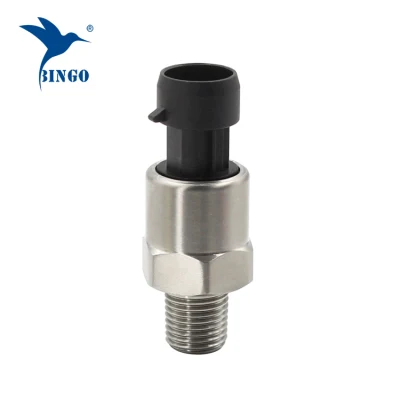

Industrial Pressure Sensor
High quality, high stability, small size. low weight. Compact structure, low cost and mass production
(Ceramic piezoresistance,for air condition,automotive)
| Pressure range | 0-10Mpa |
| Power supply | 5.0VDC |
| Output | 0.5-4.5VDC |
| Medium temperature | -10~80ºC |
| Measuring accuracy | ±1.5%FS(1%FS available) |
| Material | cover(Carbon steel,SS304/316,brass),sensor(ceramic) |
| Pressure connection | G1/4'',NPT1/8'',customized |
| Protection grade | IP68 |
| Model | Pressure | Max pressure | Damage pressure | Measuring accuracy | Response time |
| PT-ID016-05 | 0.5Mpa | 0.75Mpa | 1.0Mpa | ±1.5%FS | ≤2.0ms |
| PT-ID016-07 | 0.7Mpa | 1.05Mpa | 1.4Mpa | ±1.5%FS | ≤2.0ms |
| PT-ID016-08 | 0.8Mpa | 1.2Mpa | 1.6Mpa | ±1.5%FS | ≤2.0ms |
| PT-ID016-10 | 1.0Mpa | 1.5Mpa | 2Mpa | ±1.5%FS | ≤2.0ms |
| PT-ID016-12 | 1.2Mpa | 1.8Mpa | 2.4Mpa | ±1.5%FS | ≤2.0ms |
| PT-ID016-25 | 2.5Mpa | 3.75Mpa | 5Mpa | ±1.5%FS | ≤2.0ms |
| PT-ID016-50 | 5Mpa | 7.5Mpa | 10Mpa | ±1.5%FS | ≤2.0ms |
| PT-ID016-100 | 10Mpa | 15Mpa | 20Mpa | ±1.5%FS | ≤2.0ms |
