Large Diameter High Pressure Fermentation Vessel

Get high-quality large diameter high pressure fermentation vessels from our factory. Perfect for industrial fermentation processes. Contact us today!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Certifications
  • Company Profile
  • Customer Photos
Overview

Basic Info.

Model NO.
1-2500m3
Material
FRP
Fiber Type
E-Glass Fiber
Type
Polyester FRP
Product Name
FRP Chemical Tank
Model
Vertical Tank
Shape
Round Tank
Transport Package
Steel Frame, Wood Saddle
Specification
DN600~DN25000mm
Trademark
JIUBO
Origin
China
HS Code
3925100000
Production Capacity
10000sets

Product Description

Product Description

Our Company is a special fabricator that manufactures FRP vessels, chemical tower equipment with rich practical experience. The maxi diameter of the FRP vessel is 50000mm and the volume is 100000m3. The characteristics as below:

  1. Light weight: the density of FRP is 1.5-1.9g/cm3, 1/4 of steel's, but higher strength.
  2. Corrosion resistant: select different resins as per the variety of the media, such as acid, alkaline, salt, oil and solvent.FRP can be used in every chemical corrosion resistance area; it can replace the stainless steel, nonferrous metal etc, and decline the cost.
  3. Smooth inner surface: easy to clean, the roughness coefficient is n=0.0084, has good sanitary property, can resist the corrosion of animalcule. If choose the food grade resin, the FRP products can meet the requirement of sanitation without toxicity and without taste.
  4. Good property against the low temperature: FRP can be used in minus 80ºC. suitable for the cold area.
  5. The thermal expansion factor is 2×10-5/ºC, the thermal conductivity is 0.2kcal/(m2*h*ºC), has good thermal insulation property.
  6. Easy to shape, convenience to maintenance: especially easy to make the complicated equipment, the large-scale vessel can be winding at jobsite.
  7. Can match the accessories, such as level indicator, FRP handrail, ladder, platform etc. as per the requirement of user.


The advantages of FRP have been applied in the products fromour Company, and the application field is widely, such as chlorine-alkaline, polysilicon, environmental protection deodorization, foodstuff and brewage, seawater desalination, desulfurization, dioxide titanium, chemical fiber, metallurgy, waste gas treatment, etc.
Large Diameter High Pressure Fermentation Vessel

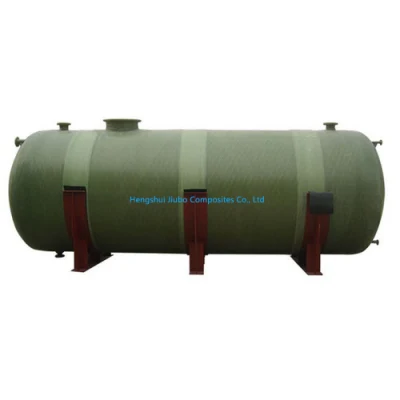

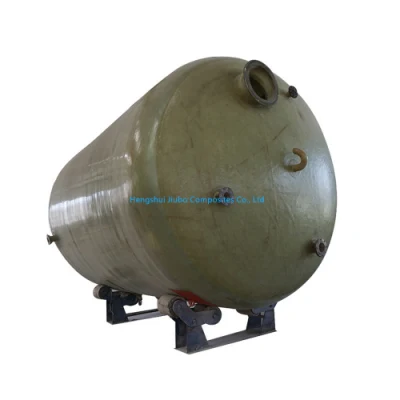

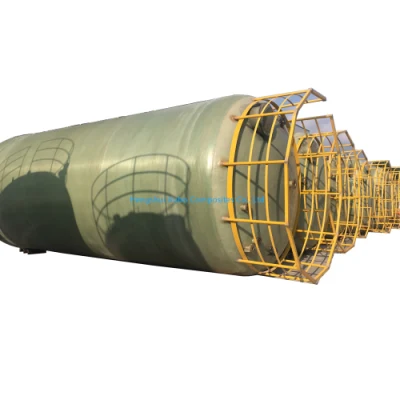

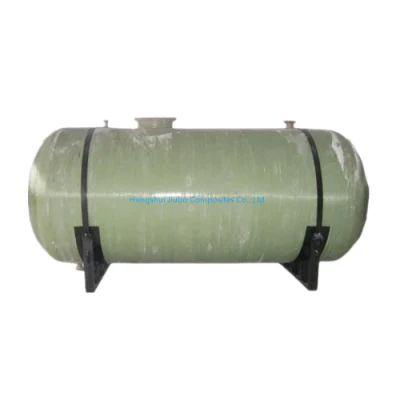

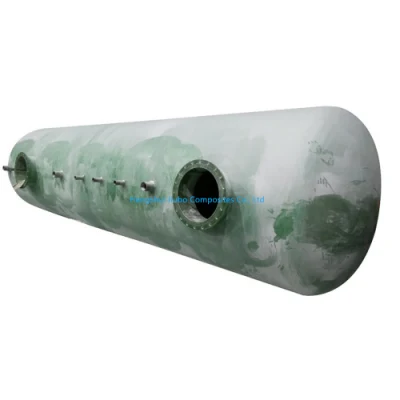

Detailed Photos

Large Diameter High Pressure Fermentation VesselLarge Diameter High Pressure Fermentation Vessel

Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel



Product Parameters
WINELY USED FRP TOWERS OR SPECIAL TYPE EQUIPMENTS
Name Shape Application Max
Fermentation Vessel Cylinder (round or flat bottom) Food Fermentation Φ4000×9800
Clorine drying tower Cylinder (flat bottom) Dewater clorin winth H2SO4 Φ3000×9500
Tail gas scrubber Cylinder (round or flat bottom) Absorb or scrub HCI tail gas
tail gas CIL2 CI2 etc
Φ5000×1500
Reaction vesse column Cylinder (round ,conical or flat bottom) Physical and chemical reaction Φ3600×15000
Trough Retangle Cylinder Scrubbing oxidation store etc Φ8000×9800
Maxi trough cover Conic   Φ16000
Separator Cylinder (round or conical bottom) Separate component of mixture Φ5200
Lon-exchanger Cylinder (round or conical bottom)   Φ3600




Certifications
Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel



Company Profile

Large Diameter High Pressure Fermentation VesselLarge Diameter High Pressure Fermentation Vessel
   Hengshui Jiubo Composites Co., Ltd. is professional manufacturer of FRP Pipe, FRP storage tank, FRP cooling tower, FRP molded products, FRP pultruded products and relative FRP production machines & technology. Through the continuous development and introduction of professional technology, our company rely on advanced technology, exquisite craftsmanship, reliable quality and perfect service, passed ISO9001, ISO14001, OHSAS18001 certification, our annual sales of glass fiber reinforced plastic series products achieved 20,000 tons, products have been sold to all over the world, USA, Brazil, Japan, Germany, India, Malaysia, Iran, Egypt etc, and won the support and trust from new & old customers.

    Hengshui Jiubo Composites Co., Ltd. not only have manufacture ability, but also has design ability of material, structure and products, our company can provide customers with technical advice, supply of goods and material, transportation, installation supervision etc service.



Large Diameter High Pressure Fermentation Vessel
Main products:
FRP tank and chemical equipment
High, middle, low pressure FRP pipe
FRP small-scaled wastewater treatment tank
FRP cooling tower
FRP pultrusion, molded series products
FRP polymer electrolytic cells
S/F, F/F double-wall oil fuel storage tank
Whole set of computer control filament winding machine
Whole set of FRP pultrusion machine
Whole set of FRP molded hydraulic press
Whole set of FRP grating molded machine



Customer Photos
Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel
Large Diameter High Pressure Fermentation Vessel
