Product Description

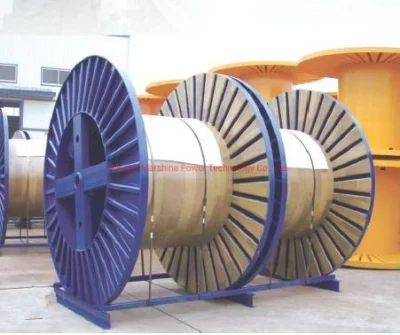

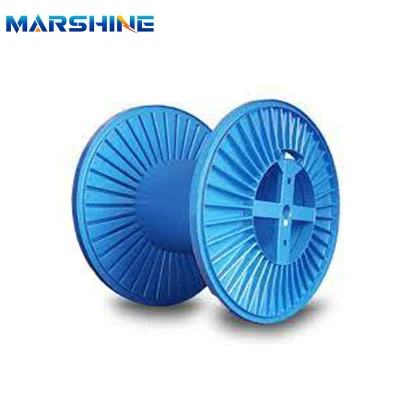

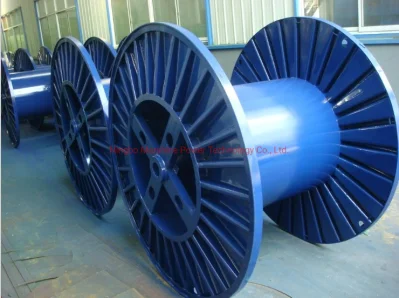

Long-Time Using Electric Cable Corrugated Cable Steel Drum
All Corrugated Cable Steel Drum conform to GB4004-83, JB/T8997, DIN46395, DIN46397 specifications.
Corrugated Cable Steel Drum Specification Flange (mm): 800, 900, 1000, 1150, 1250, 1400, 1600, 1800, 2000 and above.
We also provide effective OEM&ODM services, please feel free to consult.
| d1 | d2 | d3 | d4 | d5 | e | I1 | I2 |
| 800 | 400 | 160 | 80 | 28-40 | 160 | 600 | 500 |
| 900 | 450 | 670 | 560 | ||||
| 1000 | 500 | 750 | 630 | ||||
| 1150 | 560 | 850 | 710 | ||||
| 1250 | 630 | 950 | 800 | ||||
| 1400 | 710 | 300 | 1060 | 900 | |||
| 1600 | 800 | 1180 | 1000 | ||||
| 1800 | 1000 | 200 | 100 | 1320 | 1120 | ||
| 2000 | 1120 | 250 | 125 | 1500 | 1250 | ||
| 2240 | 1250 | 1700 | 1400 | ||||
| 2500 | 1500 | 1900 | 1600 | ||||
| 2800 | 1800 | 280 | 140 | 2120 | 1800 | ||
| 3150 | 1900 | 300 | 160 | 500 | 2300 | 2000 |
Feature and Application:

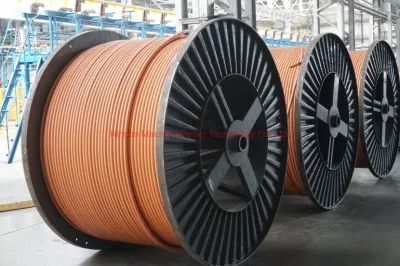

Application: For high voltage, middle and low voltage, XLPE, stranding, extrusion, cabling and armoring equipment
Customization: Reinforced version for drum twist machine Light version for shipping use Knock down to be welded or to be assembled by screws to reduce transport cost Non-standard traverse width & barrel Smooth internal flange surface (Replaceable) hardened bushing of the central bore Big or small bore Painted or stamped weight, logo, numbering ... on flanges
Feature:
1, Empty Steel Cable Reel Flange range from 600mm to 3000mm.
2, 2 types: flat type & corrugated type
3, cable reel Barrel can be made of 2 parts or 4 parts.
4, Factory price
5, MOQ=1*20ft container
6, OEM service offered
Details:
Material: Q235, Q345 (Chinese steel code),
stainless steel Standard: DIN46391/DIN 46395 / DIN 46397 / GB 4004-83 / JB/T 8997.4-1999
Surface finish: Fully painted, zinc galvanized.
To support the Transmission work, Marshine Power has Tubular Gin Pole, Hydraulic cable puller , wire rope pulley block, hoisting tackle,
Wire rope gripper

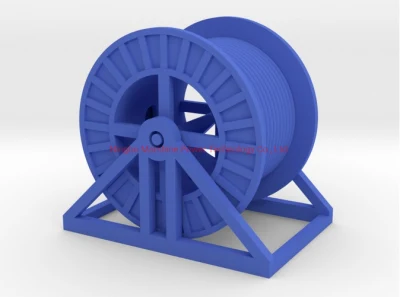

, Cable reel spool and stand - all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls contact us. Thanks.
1. Training and services.
Marshine is a company specializing in the development, design and manufacture of electrical construction equipment and tools. We not only manufacture and sell international standard products, OEM and custom products, but also provide quality tracking and service monitoring.
2. How about the quality of your products?
Our products are manufactured in strict accordance with national and international standards, and each product is tested before delivery. If you would like to view our quality certification and various test reports, please consult us.
3. Why do you choose us?
Because we can provide you with excellent service, quality and reasonable price. In addition, we can also provide smooth delivery of goods, excellent customer solutions.
4. Customer inquiry.
If there is an emergency, customers can also use online contact methods (online Chat, Skype, WhatsApp, wechat) for faster and better communication. Any enquiry will be answered within 12 working hours.
5. How to obtain samples?
We can provide free samples to the buyer for testing, but the buyer needs to pay the freight. Existing samples take 2-3 days. If there is no stock, we will advise the delivery date.
6. How about packing and shipping?
All goods will be packed in plywood boxes for safe, long haul transport. Support EXW, FOB, CIF, CFR terms.
Required documents such as packing list, commercial invoice, bill of lading, air waybill, CO, Form E, Form F etc will be provided.
Note: If you do not find the product you need, please feel free to contact us. We will provide the best quotation as soon as we verify your requirements.
