Basic Info.
Product Description
LPG Natural Gas Heating Powder Coating Oven is widely used in powder coating industry. The heat is from firing LPG, natural gas. Working size: 800 width x 1000 height x 3000 depth
Heating by electricity, by diesel, or infrared,which also can be designed according to different requirements.
Specifications
| Model | colo-0813 (indirect fired heater) |
| Worksize dimensions | 800 width x 1000 height x 3000 depth |
| Overall dimensions | 1200 width x 1400 height x 3500 depth |
| Power supply | LPG/Natural gas /diesel |
| Voltage/Frequency | 380V(50-60hz) |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3.0-6°C |
| Temperature max. | 250° C |
| Burner | Italy Riello, 10,0000cal |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Ventilation performance | 1131-2565m3/h |
| Motor power | 1.5kW |
| Warranty | 12 months |
Detailed Picture

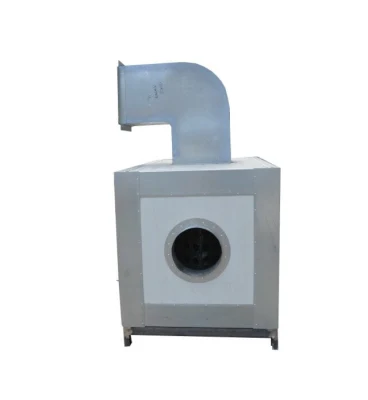

Burning Room with Italy RIELLO burner
COLO Service
1 Delivery: 25 work days after receieve the payment
2 Warranty: 12 months .
3 After sales service: engineer oversea training and installation instruction .
Why choose us ?
1. More than 10 years manufacturing experience in whole powder coating and powder painting line
2. Exported to over 90 countries, experienced in exporting.
3. Customized as you want.
4. Competitive price: we are factory. Design, produce, installed all by ourselves Save cost
5. One year of warranty period and life long technical support.
6. Market share in Global: about 90%, is a leading factory in this filed.
