Basic Info.
Model NO.
Mini swirl desander
Transport Package
Skid
Specification
8, 350 x 2, 400 x 3, 000 mm
Trademark
SAINTWAH
Origin
Saintwah Inc.
HS Code
8207801000
Production Capacity
10000
Product Description

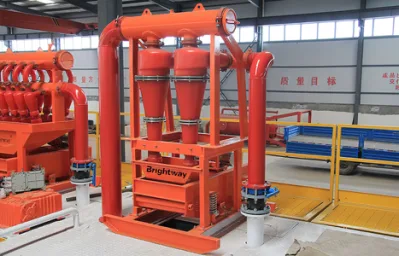

Mini swirl desander
In-line continuous sand discharge, safety and work efficiency are improved.
Modular replaceable design of cyclone equipment.
Weight reduction, reduced height and constant processing efficiency.

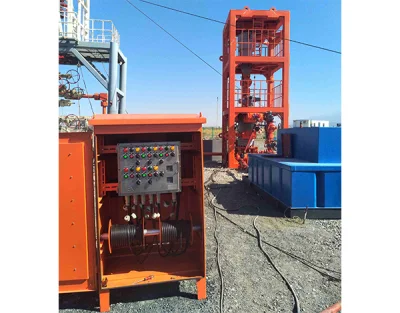

The sand outlet hole is equipped with a remote control panel, which can remotely control the power nipple.
High corrosion resistance, extended service life.
Modular replaceable design of cyclone equipment.
Weight reduction, reduced height and constant processing efficiency.
The sand outlet hole is equipped with a remote control panel, which can remotely control the power nipple.
High corrosion resistance, extended service life.
Basic Parameterss
| Work pressure | 15000psi(105MPa),20000psi(140MPa) |
| Operating temperature | -60ºC~121ºC(KU) |
| Material level | AA,BB,CC,DD,EE,FF |
| Specification level | PSL3G |
| Performance level | PR1,PR2 |
| Working medium | Drilling fluids, oil and gas containing H2S |
| Grading granularity | 50um |
| Sand cylinder inner diameter | 500mm |
| Sand cylinder volume | 180L |
| Daily volume of liquid | 2400m |
| Daily gas processing volume | 2000000m |
| Device size | 2X2.5X4.0 (m) |
| Device weight | 17.5ton |
