Basic Info.
Model NO.
CT
Condition
New
Certification
ISO, CE
Name
Gas Regulator
Max Pressure
1MPa
Outlet Pressure
1-100kpa
Size
DN50
Flanged
Class150
Transport Package
Wooden Case
Specification
ordinary
Trademark
CT
Origin
China
HS Code
8481100090
Production Capacity
50000
Product Description

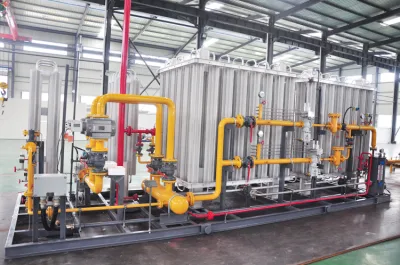

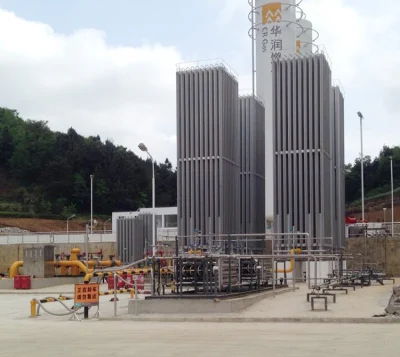

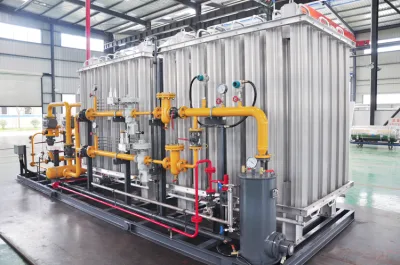

2000nm³/h Urban Natural Gas Metering and Pressure Regulating skid
The skid-mounted pressure regulating skid is suitable for the sub-transmission station of the long-distance natural gas transmission pipeline, and is used in the downstream of the first station or the upstream of the urban medium-pressure pipeline network. Pressure regulation and stabilization of medium pressure gas pipeline network. It has the functions of gas purification, heat exchange, metering, pressure regulation, distribution and safety protection. It can also be equipped with pigging and sending and receiving ball devices, odorizing devices, gas alarms, station control systems and other equipment, and RTU units or communication units can also be selected.
Performance characteristics
It integrates filtration, heat exchange, metering, pressure regulation, safety cut-off and safety release, with complete functions, good system coordination, and safe and reliable operation.
Safety protection: double protection of emergency shut-off valve and relief valve can ensure that the downstream pressure can be quickly controlled or blocked when the pressure is too high.
Can be set to monitor the pressure regulation
Pressure regulators and flowmeters can be imported products
Compact structure, beautiful appearance, small footprint and required safety distance
Simple installation and debugging, and online maintenance
Good scalability, can add monitoring, automatic control, leakage alarm and other functions according to user requirements
Optional insulating joint
Structure setting: multi-channel structure can be set as required
The equipment has been tested for 24h air tightness before leaving the factory. All parameters are set according to user requirements, and only need to be operated on site.
KEY BENEFITS
Modular Structure Design
Big Flow, Fast Response, High Accuracy
Overpressure Shut-off
Low Requirement of Gas Cleanliness
Easy Installation and Adjustment, Convenient Maintenance
Online Maintenance
DATA SHEET
Maximum Inlet Pressure: 25MPa
Outlet Pressure Range: 0.1-5Mpa
Accuracy Class: AC10
Lock-up Pressure Class: SG15
Working Temperature: -19 ~ +60ºC
Specs: DN50, DN80, DN100, DN150
![2000nm³ /H Urban Natural Gas Metering and Pressure Regulating Skid](//img6.grofrom.com/www.gasruitagroup.com/226f3j00yswVazFtwjqm/2000nm-sup3-H-Urban-Natural-Gas-Metering-and-Pressure-Regulating-Skid.webp)
![2000nm³ /H Urban Natural Gas Metering and Pressure Regulating Skid](//img6.grofrom.com/www.gasruitagroup.com/226f3j00ySdlQhFIiZoJ/2000nm-sup3-H-Urban-Natural-Gas-Metering-and-Pressure-Regulating-Skid.webp)
![2000nm³ /H Urban Natural Gas Metering and Pressure Regulating Skid](//img6.grofrom.com/www.gasruitagroup.com/226f3j00nZmWQeNMdsqd/2000nm-sup3-H-Urban-Natural-Gas-Metering-and-Pressure-Regulating-Skid.webp)
![2000nm³ /H Urban Natural Gas Metering and Pressure Regulating Skid](//img6.grofrom.com/www.gasruitagroup.com/226f3j00OsAltFydWKcm/2000nm-sup3-H-Urban-Natural-Gas-Metering-and-Pressure-Regulating-Skid.webp)
Our sale network spread all over the country and exporting to abroad. We are high quality supplier of China National Petroleum Corporation, China Petroleum& Chemical Corporation, China Resources Gas, PetroChina Kunlun Gas Ltd, Shenzhen Gas Corporation Ltd, Chengdu City Gas, Chongqing Gas Corporation Ltd. As good quality and service to became each gas group's training base for regulator equipment care and maintenance, set up good industry brand position.
The skid-mounted pressure regulating skid is suitable for the sub-transmission station of the long-distance natural gas transmission pipeline, and is used in the downstream of the first station or the upstream of the urban medium-pressure pipeline network. Pressure regulation and stabilization of medium pressure gas pipeline network. It has the functions of gas purification, heat exchange, metering, pressure regulation, distribution and safety protection. It can also be equipped with pigging and sending and receiving ball devices, odorizing devices, gas alarms, station control systems and other equipment, and RTU units or communication units can also be selected.
Performance characteristics
It integrates filtration, heat exchange, metering, pressure regulation, safety cut-off and safety release, with complete functions, good system coordination, and safe and reliable operation.
Safety protection: double protection of emergency shut-off valve and relief valve can ensure that the downstream pressure can be quickly controlled or blocked when the pressure is too high.
Can be set to monitor the pressure regulation
Pressure regulators and flowmeters can be imported products
Compact structure, beautiful appearance, small footprint and required safety distance
Simple installation and debugging, and online maintenance
Good scalability, can add monitoring, automatic control, leakage alarm and other functions according to user requirements
Optional insulating joint
Structure setting: multi-channel structure can be set as required
The equipment has been tested for 24h air tightness before leaving the factory. All parameters are set according to user requirements, and only need to be operated on site.
KEY BENEFITS
Modular Structure Design
Big Flow, Fast Response, High Accuracy
Overpressure Shut-off
Low Requirement of Gas Cleanliness
Easy Installation and Adjustment, Convenient Maintenance
Online Maintenance
DATA SHEET
Maximum Inlet Pressure: 25MPa
Outlet Pressure Range: 0.1-5Mpa
Accuracy Class: AC10
Lock-up Pressure Class: SG15
Working Temperature: -19 ~ +60ºC
Specs: DN50, DN80, DN100, DN150
