Basic Info.
Product Description
![Powerful China Horizontal Centrifugal Hydraulic Borehole Oilfield Sand Filter Water Pump for Tailings Management](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00KmAQwIFMUjoO/Powerful-China-Horizontal-Centrifugal-Hydraulic-Borehole-Oilfield-Sand-Filter-Water-Pump-for-Tailings-Management.webp)
![Powerful China Horizontal Centrifugal Hydraulic Borehole Oilfield Sand Filter Water Pump for Tailings Management](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00KAdQwqyZWSoN/Powerful-China-Horizontal-Centrifugal-Hydraulic-Borehole-Oilfield-Sand-Filter-Water-Pump-for-Tailings-Management.webp)

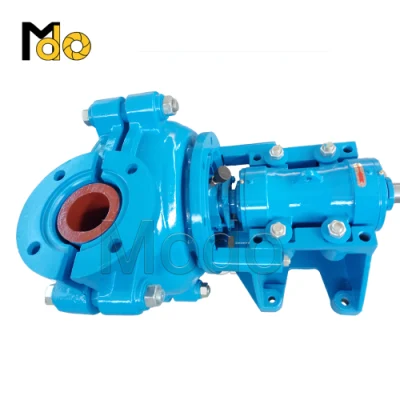

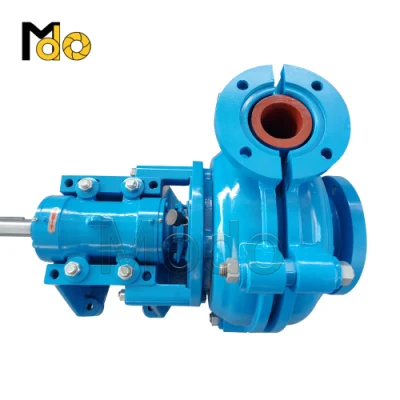

The MAH series Mineral Processing Heavy Duty Centrifugal Slurry Pump is designed for the
continuous pumping of highly abrasive, high density slurries with minimal maintenance
requirements.
The MAH series slurry pump will maintain high efficiencies over the wear life of its components.
![Powerful China Horizontal Centrifugal Hydraulic Borehole Oilfield Sand Filter Water Pump for Tailings Management](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00ZJdTmAyGzSkn/Powerful-China-Horizontal-Centrifugal-Hydraulic-Borehole-Oilfield-Sand-Filter-Water-Pump-for-Tailings-Management.webp)
![Powerful China Horizontal Centrifugal Hydraulic Borehole Oilfield Sand Filter Water Pump for Tailings Management](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00yJmQAgNFDskO/Powerful-China-Horizontal-Centrifugal-Hydraulic-Borehole-Oilfield-Sand-Filter-Water-Pump-for-Tailings-Management.webp)
Type | Max. power | Capacity | Head | Speed | Max.Eff | NPSH | Impeller Dia. | Max.particle size |
(kw) | (m³/h) | (m) | (r/min) | (%) | (m) | (mm) | (mm) | |
MAH1.5-1 | 15 | 12-28 | 6-65 | 1200-3800 | 40 | 2-4 | 150 | 14 |
MAH2-1.5 | 15 | 32-72 | 6-58 | 1200-3200 | 45 | 3.5-8 | 185 | 19 |
MAH3-2 | 30 | 39-86 | 12-64 | 1300-2700 | 55 | 4-6 | 215 | 25 |
MAH4-3 | 60 | 86-198 | 9-52 | 1000-2200 | 71 | 4-5 | 245 | 28 |
MAH6-4 | 120 | 162-360 | 12-56 | 800-1500 | 68 | 5-8 | 365 | 44 |
MAH8-6 | 120 | 360-830 | 10-61 | 500-1140 | 72 | 2-9 | 510 | 63 |
MAH10-8 | 260 | 612-1368 | 11-61 | 400-850 | 71 | 4-10 | 685 | 76 |
MAH12-10 | 560 | 936-1980 | 7-68 | 400-750 | 82 | 1-5 | 760 | 86 |
MAH14-12 | 560 | 1260-2772 | 13-63 | 300-600 | 77 | 3-10 | 965 | 90 |
![Powerful China Horizontal Centrifugal Hydraulic Borehole Oilfield Sand Filter Water Pump for Tailings Management](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00OwAtJPNaeZkF/Powerful-China-Horizontal-Centrifugal-Hydraulic-Borehole-Oilfield-Sand-Filter-Water-Pump-for-Tailings-Management.webp)
Rubber Pumps Material | Metal Pumps Material | ||||
No | Part | Material | No | Part | Material |
1 | Base | Cast Iron | 1 | Base | Cast Iron |
2 | Shaft | 4140 High Tensile Steel* | 2 | Shaft | 4140 High Tensile Steel* |
3 | Bearing Assembly | Timken (Cast Iron Body) | 3 | Bearing Assembly | Timken (Cast Iron Body) |
4 | Shaft Sleeve | 420 Stainless Steel | 4 | Shaft Sleeve | 420 Stainless Steel |
5 | Pump Casing | Cast Iron | 5 | Pump Casing | Cast Iron |
6 | Frame Plate Liner Insert | Rubber | 6 | Frame Plate Liner | 27% Chrome White Iron |
7 | Cover Plate Liner | Rubber | 7 | Volute Liner | 27% Chrome White Iron |
8 | Impeller | Rubber Coated High Tensile Steel | 8 | Impeller | 27% Chrome White Iron |
9 | Throat Bush | Rubber | 9 | Throat Bush | 27% Chrome White Iron |
10 | Cover Plate | Cast Iron | 10 | Joint Rings | Rubber |
11 | Stuffing Box | Cast Iron | 11 | Cover Plate | Cast Iron |
12 | Expeller | 27% Chrome White Iron | 12 | Stuffing Box | Cast Iron |
13 | Expeller Ring | Natural Rubber | 13 | Expeller | 27% Chrome White Iron |
14 | Bolts | Zinc Plated Steel | 14 | Expeller Ring | Natural Rubber |
15 | O-rings | Nitrile Rubber | 15 | Bolts | Zinc Plated Steel |
16 | Seals | Rubber | 16 | O-rings | Nitrile Rubber |
17 | Seals | Rubber | 17 | Seals | Rubber |
![Powerful China Horizontal Centrifugal Hydraulic Borehole Oilfield Sand Filter Water Pump for Tailings Management](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00wAJTdGnyDskF/Powerful-China-Horizontal-Centrifugal-Hydraulic-Borehole-Oilfield-Sand-Filter-Water-Pump-for-Tailings-Management.webp)
Modo Pump Co.,Ltd. is one over 30 years experienced pump manufacturer (establishedat 1986) in
mining and mineral, power plant, dredging and dredge, hydraulic, irrigation,pulp transfer, chemical,
construction, sea water and oil & gas transfer etc.; Modo Pump Co.,Ltd. is the pump factory has its
own pump selection & design, research and development team to assure provide you efficient,
energy saving slurry pump, water pump, diesel water pump, chemical pump and irrigation pump in
selection & design,use and maintenance program.
Our products include slurry pump, sewage pump, water pump, acid resistant or chemical pump,
irrigation pumps, fire pumps and other products exported to over 90 countries all over the world. The
application covers many fields, such as mining and mineral processing, dredger, tailings transportation,
mining, steel, desulfurization pump,boiler feed water, construction, irrigation, water conservancy facilities,
sewage treatment,drainage and water supply.
![Powerful China Horizontal Centrifugal Hydraulic Borehole Oilfield Sand Filter Water Pump for Tailings Management](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00wmJTAkFzUKqy/Powerful-China-Horizontal-Centrifugal-Hydraulic-Borehole-Oilfield-Sand-Filter-Water-Pump-for-Tailings-Management.webp)
![Powerful China Horizontal Centrifugal Hydraulic Borehole Oilfield Sand Filter Water Pump for Tailings Management](http://img6.grofrom.com/www.gasruitagroup.com/226f3j00wdAtJSFymKoN/Powerful-China-Horizontal-Centrifugal-Hydraulic-Borehole-Oilfield-Sand-Filter-Water-Pump-for-Tailings-Management.webp)
1, What information is needed to offer a slurry pump?
The pump model or the below information:
Liquid:___
Capacity:___ m3/hr
Head: ___ m
PH:___
Specific of gravity:___
Voltage:___V, Frequency:___hz
2, What material pump can you supply?
A05, Natural rubber, ceramics, polyurethane etc.
3, Can you supply special or OEM parts?
Yes, please send me the detailed drawing or parts code to check.
4, Do you only supply pumps? Could you supply driven equipment?
Yes, sure ,the pumps could be coupled with motor and diesel engine, below brands for your reference:
Motor: WEG, SIMENS ,ABB, TECO ,and Chinese brands
Diesel engine: Cummins, Deutz, Perkins,Volvo,MITSUBISHI, Caterpiller,MTU,and Chinese brands.
5, What is the delivery time?
10days for normal pumps.
