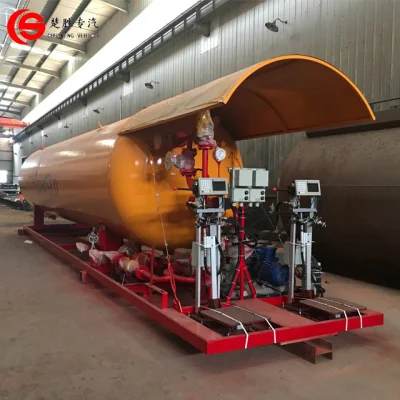

Q345r 40000 Liters LPG Gas Tank Refilling Skid Staiton

Factory direct Q345R 40000 liters LPG gas tank refilling skid station. Efficient and reliable solution for LPG gas refilling. Buy now.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Chusheng
Condition
New
Item Name
5t 10t 20t LPG Skid Station 20, 000 Liers LPG Tank
Tank Material
Q345r, Q370r, Q420r, SA516, SA612
Tank Thickness
10mm, 12mm, 14mm, 16mm, 18mm etc
Design Pressure
1.77MPa LPG Station
Diameter
1600mm, 1800mm, 2100mm, 2200mm etc
Manhole
DN450mm LPG Skid Station
Safety Valve
DN50, 1 Piece
Gas Phase Connection
DN50 DN80, DN100 LPG Filling Station
Liquid Phase Connection
DN50 LPG Tank
Liquid Level Gauge
Ball Floating Level Gauge, Rochester
Pressure Gauge
1 Piece LPG Gas Station
Thermometer Gauge
1 Piece Propane Gas Tank
Stop Vall
DN50
Anti-Rust
2 Layers Anti-Rust Painting
Test
Water Pressure Test Propane Filling Station
Transport Package
Waxed Before Shipping
Specification
9270*2428*3018mm
Trademark
Chusheng
Origin
China
HS Code
7301100000
Production Capacity
5000 Piece / Month

Product Description

Q345r 40000 Liters LPG Gas Tank Refilling Skid Staiton


LPG Filling Plant, also known as LPG filling station, is a special equipment for storage of liquefied petroleum gas (LPG), it is for filling gas cylinders and LPG vehicles. Our company can provide LPG skid station ranging from 5cbm-120cbm.

1)lpg skid station capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.

2)Main parts of lpg tank skid
pump, motor, compressor, cut-off valve, safety valve, alarm system, lpg dispenser or filling scale, water spraying system or sunshade, magnetic level gauge (rochester gauge), rotor gauge, temperature gauge, pressure gauge, lpg skid control panel, mass flow meter...

LPG,liquid pressure gas,which is made from oil.The main gas is propane,Isobutane.Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.
The LPG tank trailer volume from 30~60 m3 with two axles or three axles.
The LPG tank truck with the volume from 5~35 m3.

Product description of lpg skid station:

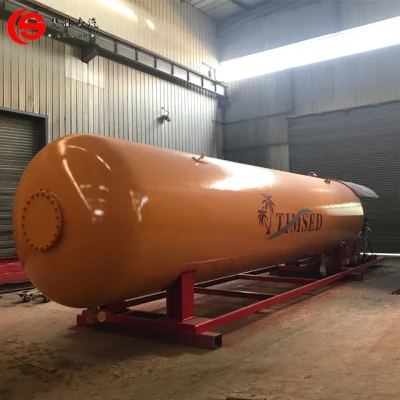

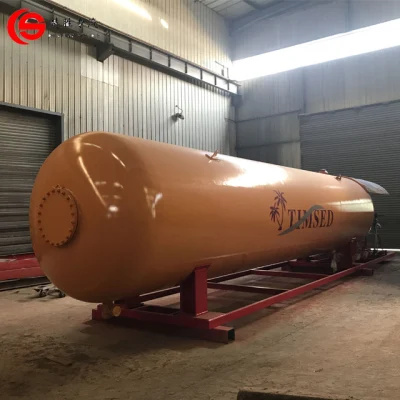

Parameters of 40cbm LPG tank
Item Parameters









Tank
Volume of the tank 40 CBM
Overall dimensions (mm) 9270*2428*3018
Diameter (mm) 2400
Curb weight(kg)               9380
Filling weight(kg) 20,s000
Cylinder thickness (mm) 12
Head thickness (mm) 14
Design pressure 1.77MPa
Max working pressure 1.61MPa
Design temperature 50ºC
Filling medium Liquid petroleum gas (propane)
Corrosion allowance (mm) 1.0
Thermal treatment The entirety
Filling capacity 420~540kg/CBM
Material of the tank Q345R
Hydraulic test pressure 2.22 M Pa
Gas tight test pressure 1.77 M Pa
Service time 15 years
Accessories list of lpg tank
Parts No Size Parts Name Model No.
a DN50 Cut-off Valve for Drain Outlet J41N-2.5-50
b DN80 Cut-off Valve for Liquid Phase Outlet J41N-2.5-80
c1 DN50 Cut-off Valve for Gas Phase Balance Outlet J41N-2.5-50
c2 DN50 Cut-off Valve for Gas Phase Balance Outlet J41N-2.5-50
d DN80 Cut-off Valve for Liquid Inlet J41N-2.5-50
i DN50 Cut-off Valve for Air Drain Outlet J41N-2.5-50
f1 / f2 DN25 Magnetic Level Gauge J41N-2.5-25
e M33*2 Thermometer WTQ-280
g M20*1.5 Pressure Meter Y-100T
/ / Ball floating Level Meter HG21584-95
h DN80 Safety Valve A42F-25
j DN450 Manhole HG20592-WN
Remark The f1, f2 is the Magnetic Level Gauge. But the Ball Floating Level Meter is recommended for you.


Key accessories for Skid Station:(equipment in this form are all included in our price)

LPG Pump&Motor for discharging LPG from LPG Tank Truck to LPG Tank Skid Medium:Liquid petroleum gas
Speed:15m3/h
Input and Output Diameter:50 mm
Working pressure:2.0 Mpa
Working temperature:-40ºC- 50ºC
Material:carbon steel
Q345r 40000 Liters LPG Gas Tank Refilling Skid Staiton

Unit 2
Revolving speed:1470 r/min
Power:5.5 kw
Voltage:380 V
Protection grade:ExdIIBT4
Q345r 40000 Liters LPG Gas Tank Refilling Skid Staiton

Unit 2
LPG dispenser Lpg dispenser with 2 hose (can show kg and liter, can print your logo)
2 x Air separator
2 x Flowmeters
2x Solenoid valves
2x Differential valves
4 x Safety valves
1 ERA LT-LPG124 with 2 pulsers,
2 metal keyboards, 4 displays
2x hose with breakaway valve,
nozzle & couplings
Whole SS body
Flowrate: 35L/M
Package: carton
Q345r 40000 Liters LPG Gas Tank Refilling Skid Staiton

Unit 2
Permanent Gas Detector(Leak detectors) Measuring Range: 0~100% LEL
Precision: <±5%(F.S.)
Size: 180*140*95mm
Nozzle: M20*1.5
Signal Transmission Distance: ≤1200M
Weight: 1.5kg
Warning Method: Controller warning(>70dB)
Ex-Proof: Ex ID IIC T6
Q345r 40000 Liters LPG Gas Tank Refilling Skid Staiton

Unit 1
Floating ball level gauge Cam show the liquid level inside the tank Q345r 40000 Liters LPG Gas Tank Refilling Skid Staiton

Piece 1
One Set  accessories needed for tank skid  Tank safety valve, Emergency shut off valve, Safety reverse valve, Check valve, ball valve, Pressure gauge with Needle valve, Temperature gauge, Shock-proof pipe, L/U-tube, Flange, Metal gasket, bolt with nut, Steel pipeline, Bottom Base. / Set 1
Water spraying system Can spray water to cool the lpg tank Q345r 40000 Liters LPG Gas Tank Refilling Skid Staiton

Set 1

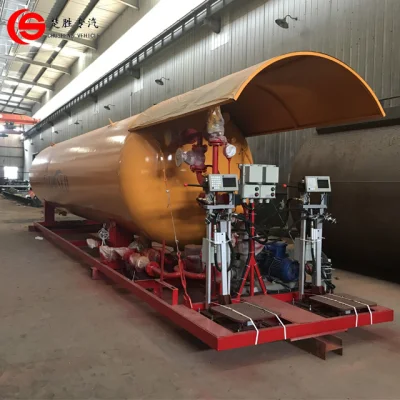

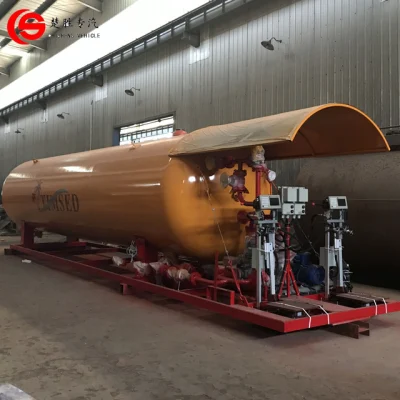

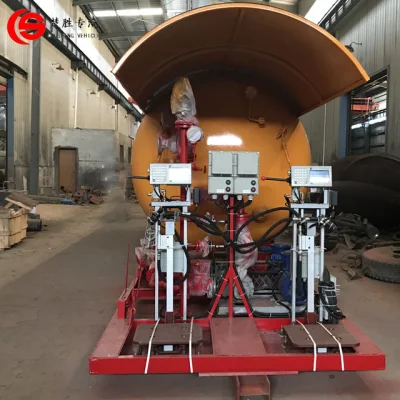

Details of the lpg propane filling station:Q345r 40000 Liters LPG Gas Tank Refilling Skid Staiton

Q345r 40000 Liters LPG Gas Tank Refilling Skid Staiton




Q345r 40000 Liters LPG Gas Tank Refilling Skid Staiton

 Workshop of our lpg tank skid:
Q345r 40000 Liters LPG Gas Tank Refilling Skid Staiton



About our company

1.     Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.

2.     Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.

3.     We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.

We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
Q345r 40000 Liters LPG Gas Tank Refilling Skid Staiton
