Basic Info.
Process
Pre-Filters and UF System
Electricity
220V, 240V, 380V/50Hz
Control
Automatic/Manual
Weight
1500kgs
Size
3000*1500*2000mm
Recovery Rate
75%
Materials
FRP, Stainless Steel, UPVC
Power
15kw
Warranty
1 Year
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Certificate
ISO9001, ISO14001, CE
After-Sales Service
Video or on-Site If Necessary
Transport Package
Smoked Wooden Case
Specification
8000L/H
Trademark
XST
Origin
Xi′an
HS Code
8421219990
Production Capacity
100PCS/Month
Product Description

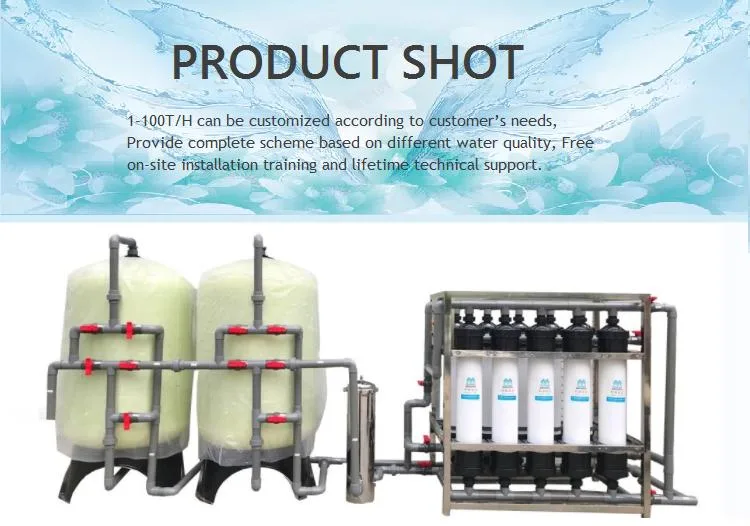

1000L/H--200T/H Ultrafiltration Water Treatment Systems UF Water Purification Filter Machine
What is Ultrafiltration system?
Ultrafiltration (UF) is a type of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable membrane. A semipermeable membrane is a thin layer of material capable of separating substances when a driving force is applied across the membrane. Once considered a viable technology only for desalination, membrane processes are increasingly employed for removal of bacteria and other microorganisms, particulate material, and natural organic material, which can impart color, tastes, and odors to the water and react with disinfectants to form disinfection byproducts (DBP). As advancements are made in membrane production and module design, capital and operating costs continue to decline.
How UF Systems Work?
Ultrafiltration (UF) systems have diverse membrane filtration where hydrostatic pressure pushes solvents against a very fine membrane. They block suspended particulates and solids that are large while water and solutes with a lower molecular weight are allowed to flow through the membrane.
Industry and research employ this separation process for purifying and concentrating macromolecular (103 - 106 Da) solutions, which are usually protein solutions. Ultrafiltration is similar to microfiltration, nanofiltration or gas separation, except it differs in the molecule sizes it blocks.
To meet critical discharge criteria, ultrafiltration systems remove the need for clarifiers and multi-media filters. Effective ultrafiltration systems use membranes that can be immersed, back-flushable, and air scoured. Spiral wound UF/MF membranes offer excellent performance for the clarification of process water and waste water.

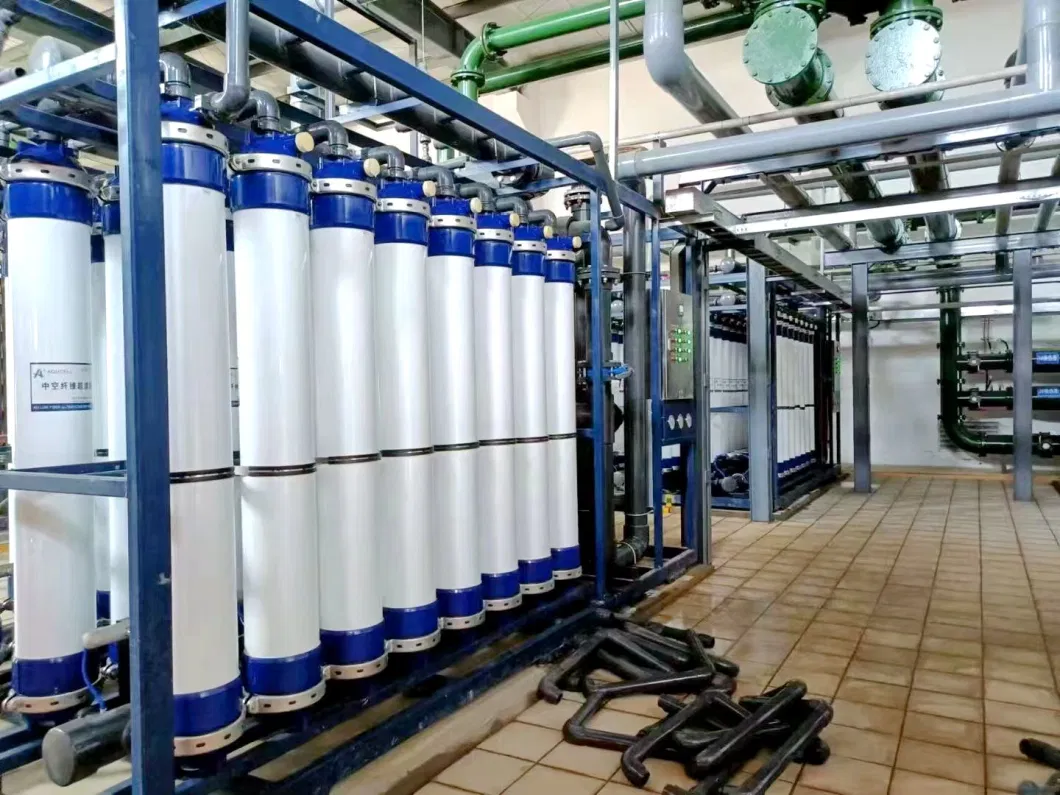

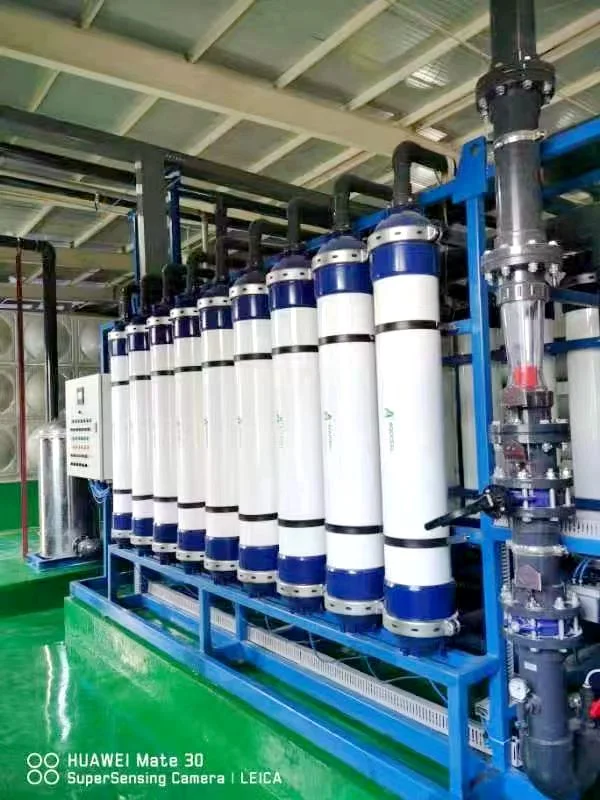

XST Ultrafiltration System
Adopts the advanced technology and rich experience, we can provide the complete project design and reasonable budget for every user.
What is Ultrafiltration system?
Ultrafiltration (UF) is a type of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable membrane. A semipermeable membrane is a thin layer of material capable of separating substances when a driving force is applied across the membrane. Once considered a viable technology only for desalination, membrane processes are increasingly employed for removal of bacteria and other microorganisms, particulate material, and natural organic material, which can impart color, tastes, and odors to the water and react with disinfectants to form disinfection byproducts (DBP). As advancements are made in membrane production and module design, capital and operating costs continue to decline.
How UF Systems Work?
Ultrafiltration (UF) systems have diverse membrane filtration where hydrostatic pressure pushes solvents against a very fine membrane. They block suspended particulates and solids that are large while water and solutes with a lower molecular weight are allowed to flow through the membrane.
Industry and research employ this separation process for purifying and concentrating macromolecular (103 - 106 Da) solutions, which are usually protein solutions. Ultrafiltration is similar to microfiltration, nanofiltration or gas separation, except it differs in the molecule sizes it blocks.
To meet critical discharge criteria, ultrafiltration systems remove the need for clarifiers and multi-media filters. Effective ultrafiltration systems use membranes that can be immersed, back-flushable, and air scoured. Spiral wound UF/MF membranes offer excellent performance for the clarification of process water and waste water.
XST Ultrafiltration System
Adopts the advanced technology and rich experience, we can provide the complete project design and reasonable budget for every user.
| Model | Capacity | Membrane | Water Inlet | Water Outlet | Power | Package Size | Weight |
| T/H | mm | mm | mm | KW | m | KG | |
| XSTUF-0.5 | 5 | 4 | DN20 | DN20 | 0.55 | 1.0 x 0.8 x 1.7 | 200 |
| XSTUF-1 | 1 | 4 | DN20 | DN20 | 0.55 | 1.0 x 0.8 x 1.7 | 220 |
| XSTUF-2 | 2 | 4 | DN25 | DN25 | 0.75 | 1.0 x 1.2 x 1.7 | 250 |
| XSTUF-4 | 3 | 4 | DN40 | DN40 | 0.75 | 1.5 x 0.8 x1.7 | 350 |
| XSTUF-5 | 4 | 4 | DN40 | DN40 | 1.1 | 1.5 x 0.8 x1.7 | 375 |
| XSTUF-6 | 5 | 4 | DN40 | DN40 | 1.5 | 2.2 x 1.3 x 2.5 | 500 |
| XSTUF-8 | 8 | 4 | DN40 | DN40 | 2.2 | 2.2 x 1.3 x 2.5 | 560 |
| XSTUF-10 | 10 | 8 | DN50 | DN50 | 2.2 | 2.2 x 1.3 x 2.5 | 620 |
| XSTUF-15 | 15 | 8 | DN65 | DN65 | 2.2 | 3.0 x 1.5 x 2.5 | 900 |
| XSTUF-20 | 20 | 8 | DN80 | DN80 | 4 | 3.5 x 1.8 x 2.5 | 1200 |
Specification
(for reference only, exact specification is subject to raw water and product)
(for reference only, exact specification is subject to raw water and product)
| Item | Internal Pressure Membrane | External Pressure Membrane |
| Turbidity of water | <0.1NTU | <0.1NTU |
| Bacteria removal rate | >5log | >6log |
| Filtration method | internal pressure | external pressure |
| Membrane material | polysulfone | Polysulfone |
| Molecular weight cutoff | 10,000 and 67,000 | 6000 and 20,000 |
| Fiber size | DN:1.0mm DE:1.5mm | DN: 0.2mm DE: 0.4mm |
| Water flux | 60~100L/m2 /h | according to experiment |
| Maxium inlet pressure | 0.3Mpa | 0.3Mpa |
| S/N. | Process | Application |
| 1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system. |
| 2 | Pumps | Using best brand pump for high pressure pumps and raw water pump. We are using SEKO pump for chemical dosing. As regards to customer budget, customer can choose one brand from them. |
| 3 | Multimedia Filter | We are giving three option to you for sand filter tank; FRP, Stainless Steel S304 and Stainless Steel 316. For food and pharmaceutical industry we suggest SS316, of course the raw water source is also is important to choose tank material. To choose correct tank, we have to check every data of your application and then suggest to you most appropriate solution. |
| 4 | Security filter/PP filter | Prevent large particles, bacteria, viruses into RO membrane, accuracy is 5μm |
| 5 | UF system | The most important part of UF Water Treatment Machine is membrane, in market there are a lot of membrane available. Ultrafiltration membrane element UF200, membrane material: PVDF, single membrane water production: 2-5.0m3/h. As regards to customer application and budget, our team offer from best brand. Our company do not use no name membranes or low quality membranes. |
| 6 | Chemical Cleaning system (Optional device) | It refers to the use of acid, alkali, organic chelating agents, dispersants and other chemical agents, to dissolve and remove dirt and scale attached to the metal surface. There are pickling, alkali washing, ammonia washing, sludge stripping, solvent cleaning and so on. |
| 7 | Electrical Control Cabinet | automatic control, and if you want PLC touch screen panel, the brand we used is Siemens. All electronic parts are france brand, including the contactors, thermal relays, knobs, switches, lights, pressure controller and time controller. |
Q1:Why I choose your company?
A1: Our factory has professional technical team and advanced production line.
100% factory quality assurance, 12 months warranty and lifetime maintenance;
100% factory quality assurance, 12 months warranty and lifetime maintenance;
Q2. Which machine should I choose?
A2: It depends on your inlet water quality and output water requirements, we have professional sales team and engineers team, welcome to inquiry.
Q3.: The logo, language and color can be customized?
A3: Yes, welcome you to sample custom, and also can provide the pictures or requirements for design.
Q4: Could you provide the picture and video for our retail advertising?
A4: Yes, high-definition pictures will be provided which can be used for your clients, your online shop or official website;
Q5: Do you provide installation and training?
A5: Yes, synchronous drawings and operation manual will be provided, and also we can send our technician to your site for
installation or training if necessary.
installation or training if necessary.
