Product Description

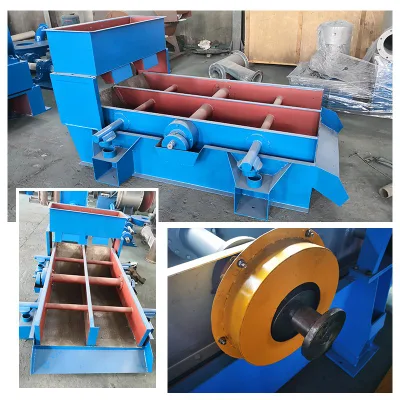

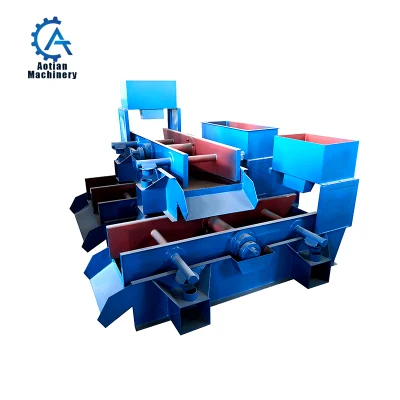

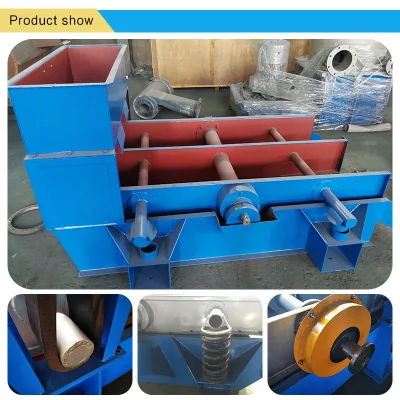

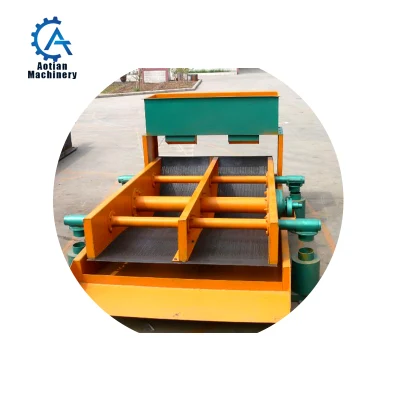

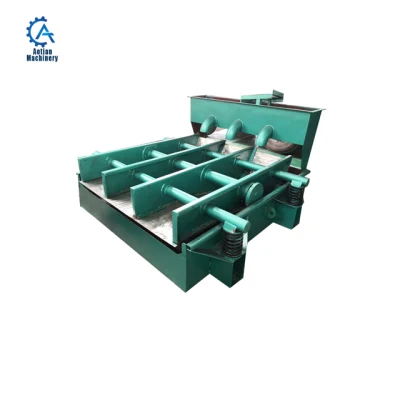

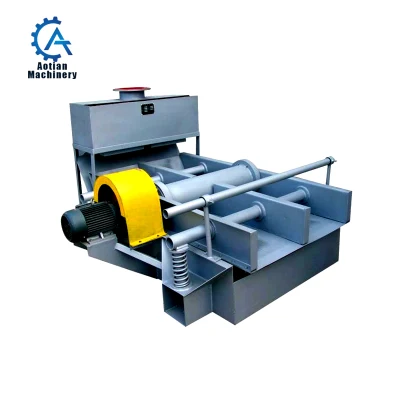

The vibrating screen of pulping and papermaking equipment is operated by the motor to make the vibrator vibrate, and the vibration part is connected by a spring to make the vibration part vibrate in a multi-rotation shape. This vibration track is a complex three-dimensional curve in space, and the curve is projected horizontally as A circle, the projections on the two vertical planes are both elliptical. Adjust the phase angle of the vibrator to rotate the weight block up and down to change the movement trajectory of the screen surface material. When the upper and lower weight blocks overlap and the phase angle is at 0 degrees , The material diverges from the center to the outside; when the phase angle of the weight block is 90 degrees, the material gathers toward the center. Vibrating screen is generally used in the front stage of pulping, behind the fiber separator, or behind a section of coarse screen, mainly used for the screening of tailings.
| Model | AT-1 | AT-2 | AT-3 | AT-4 | AT-5 |
| Capacity | 8-16 | 20-40 | 40-80 | 60-120 | 60-130 |
| Screen area(m2) | 0.6 | 1 | 2 | 3 | 4 |
| Spraying pressure | 0.2Mpa | ||||
| Vibration frequency(times/min) | 710 | 710 | 720 | 720 | 720 |
| Screen slot(mm) | 0.5-1mm | ||||
| Inlet hole(mm) | 108 | 133 | 159 | 219 | 219 |
| Inlet consistency | 0.5-1.5% | ||||
| Motor | 2.2kw/4 | 2.2kw/4 | 4kw/4 | 5.5kw/4 | 7.5kw/4 |
| Weight(kg) | 607 | 800 | 1200 | 1500 | 1900 |
Hot Sales
These are all our hottest products.
Both the quality and the price are highly appraised by customers
Package & Shipping
Packaging
products will packaged according to their shapes, weight, transport distance and transport modes.
Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc
Shipping
sea transportation is from Qingdao seaports or other china main ports.
the delivery time is decided by machine types.But we also try to make it follows your needs.
Company Information
Aotian Machinery Manufacturing Co., Ltd. was founded in 1985, according to the modern enterprise mechanism into a large-scale standardized joint-stock enterprises, with 278 workers,including 23 engineers and technicians,15 senior engineers.In general, Aotian is in the leading place of paper-making industry in China .
We will provide whole services according to our clients' demand, like technical design, equipment production, installation and test instruction and so on. We will meet and exceed your expectations. Please contact our custom service for details.
Our Customer
These are our clients in Iran ,Pakistan and India.
Our products are sold to more than 100 countries all over the world.
Customer Feedback
Our Products have sold to many countries,and won customer's good reputation.
Our Service
Service first
1.To provide you with the transformation and upgrading of plant equipment programs, in order to improve the yield and quality
2.Always online to answer technical questions
3.The customer arrives China, accompanied this translation facility until send customers back
4.send engineers to the customer's national installation and commissioning of the machine, to ensure the normal operation of the machine
5.Our products can guarantee excellent quality, if there is any quality problems, we flew to your country for your free service
FAQ
1.Q:Are you a manufacture?
A: Yes,we have been in providing the professional products in this field for 30 years.
2.Q:How to install the machine?
A:we can help with the installation by vedio,email,picture.if it is a large project,we can arrange our worker help you to install it in your country.
3.Q:How do you pack the products?
A:Normally as the export standard packaging or as your requirement.
4.Q:What's your available port of shipment?
A:Qingdao port,Shanghai port and so on.
5.Q:Is it customized available?
A:Yes,according to your detailed drawing you provided.
