Product Description

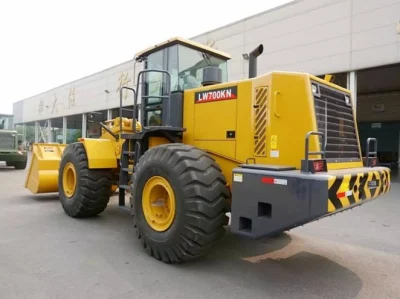

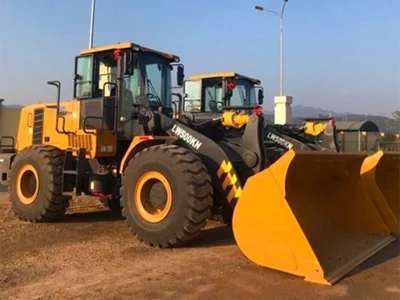

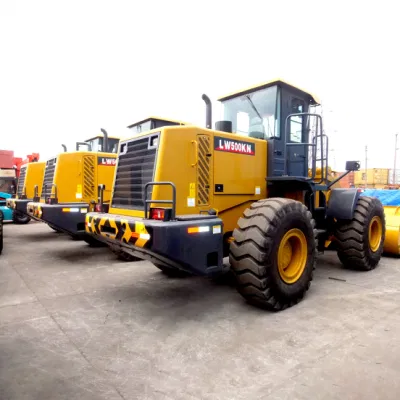

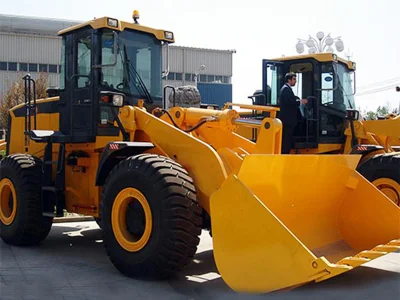

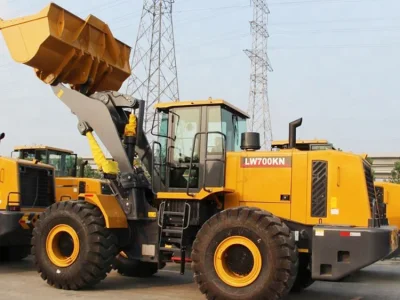

6Ton Wheel Loader Low Price for Sale
Experienced part
The imported electrical injection, turbo-charing, air-air inter-cooling engine, electric start and flameout. The emission meets the requirement of TIRE-3 stage, featuring high performance, low oil consumption, environmental care, and strong power.
Electrical and hydraulic control transmission provides smooth gear shift, featuring advanced performance and strong reliability; gear function reduces the operation gear shift frequency and improves the operation efficiency.
Excellent performance
Dual-pump combined technology, hydraulic flow expanding steering, single-handle guide control, flexible and convenient.
The steering limit is dual limits of hydraulic control and mechanical control. The hydraulic control limit is prior to the mechanical limit, reducing the impact.
Safe and reliable brake
Hydraulic wet brake. Combine the emergency brake and parking brake to ensure the safe operation.
Reliable structure strength
Focus on the integrated structure strength. Use finite-element analysis to reduce the stress concentration position to ensure the adaption to various kinds of dangerous conditions.
Comfortable operation environment
The independent cab features wide visibility, sealing and damping, air conditioning, radio, and adjustable seat. The comfortable and safe operation environment is the sufficient reflection of human-machine combination. The operator enjoys the operation and improves the working efficiency.
The steering column is integrated with the instrument panel. Anyone could change the angle of the steering column through one control lever to find the best position. The information on the monitor is clear and the operator could grasp the machine status.
Convenient maintenance
With integrated oil filling, the service person could access to the maintenance point from the ground, featuring higher efficiency.
The side plates of the shield and rear shield are opened easily, and it is convenient to check the engine and parts, and daily maintenance.
| Item | Specifications | ||
| Engine | Model | SC11CB240,1G2B1 | |
| Type | Water cooling,4xstrokes | ||
| Air breathing | Thrbo-changed | ||
| Number of cylinders | 6 | ||
| Bore | 120mm | ||
| Piston dispiacement | 10.5l | ||
| Governor | Electronic variable-speed governor | ||
| Power | 175kw(240hp) | ||
| Rated speed | 2200rpm | ||
| Fuel system | Direct injection | ||
| Maximum torque | 950Nm/1400rpm | ||
| Lubrication system | Gear pump forced lubrication | ||
| Filter | Full-flow type 1 | ||
| Air filter | Dry(double filter elements with dust exhanst and indicator) | ||
| Gearbox | Hydraulic torque converter | type | Single stage,single phase,three-components |
| types | Fixed shaft drive shifting | ||
| km/h(Galculated on the tire 29.5R25) | |||
| Gear 1(Forward/Rearward) 6/6 | |||
| Gearbox | Gear 2(Forward/Rearward) 11/11 | ||
| Travel speed | Gear 3(Forward/Rearward) 22/22 | ||
| Gear 4(Forward/Rearward) 34/34 | |||
| Axle and main drive | Drive system | 4 WD | |
| Front wheels | Fixed | ||
| Rear wheels | Oscillating axle,±12º swing | ||
| Reduction gear | Spiral bevel gear | ||
| Differential gear | Common gear | ||
| Final drive | Planetary gear,1st class speed reduction | ||
| Brake | Service brake | Gas cap oil disc brake(4W) | |
| Parking brake | Drum type brake | ||
| Emergency brake | With parking brake as dual purpose | ||
