Basic Info.
Model NO.
5052
Surface Treatment
Color Coated
Alloy
Alloy
Width
10-2600mm
Thickness
1-4mm
Sample
Free
Transport Package
Container
Specification
Aluminum
Trademark
Honesty-Al
Origin
China
HS Code
7606129000
Production Capacity
6000 Tons/Year
Product Description
Product Specifications
| Item | Aluminum coil |
| Standard | GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006etc |
| Grade | 1000,2000,3000,4000,5000,6000,7000 series |
| Temper | O-H112/T3-T8/T351-T851 |
| Tolerance | 1% |

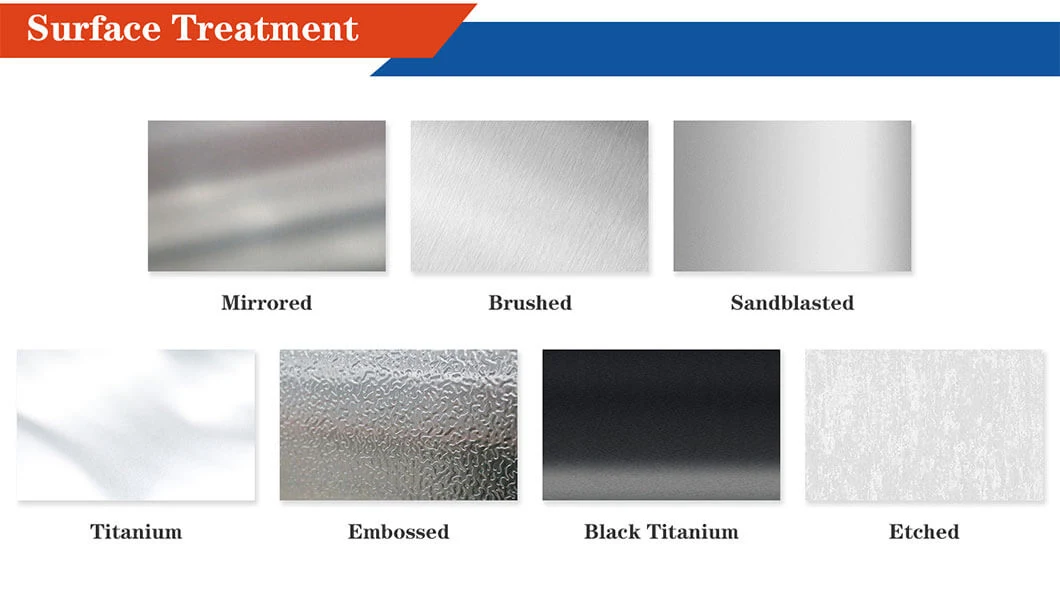

| Surface Treatment | Mirrored,Brushed,Sandblasted,Etched,Titanium,Embossed,Wood Grain Pattern |
| Processing Service | Bending,Punching,Cutting etc |
| Edge | Mill edge, Cut edge |
| Thickness | 0.1-4mm |
| Width | 10-2600mm |
| Customized service | Yes |
| Certificate | ISO9001 |
| Package | Standard Seaworthy Wooden Pallet Packing |
| MOQ | 1 Ton |
| Sample | Available |
| Delivery Time | 7-15 Working Days |
| Alloy Grade | Application Field | |
| 1xxx | 1050 | Insulation food industry, decoration, lamp, traffic signs etc. |
| 1060 | Fan blade. Lamps and lanterns. Capaoitor shell, Auto parts, Welding parts etc. | |
| 1070 | Capacitor. Rear panel of vehicle refrigerator, charging point. heat sink etc. | |
| 1100 | Cooker, building material, printing, heat exchanger. bottle cap etc. | |
| 2xxx | 2A12 2024 | Aviation aluminum materials are mainly used in aircraft structures (such as skins),aerospace, weapons, engines, pistons, automobile bodies, ship hulls and stressed components |
| 3xxx | 3003 3004 | Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard. storage tank, curtain wall, building construction panel heat sink.billboard |
| 3005 3105 | Industrial floor. air conditioning. refrigerators radiators. Make-up board. Prefabricated house etc. | |
| 4xxx | 4343 | Mainly used for welding materials. etc. |
| 5xxx | 5052 | Marine and transportation material. railway carriage's inner and outer cabinet. oil and chemical industry storage device, equipment and medical device panel etc. |
| 5005 | Marine applications. bodies of boats. buses, trucks and trailer. Curtain wall panel. | |
| 5066 | Ship board. deck, bottom and edge panel etc. | |
| 5083 | Tanker, oil storage tank, drilling platform, ship board. deck, bottom, welded parts and edge panel, railway carriage 's board. automotive and aircraft panel. coling device and automotive molding etc. | |
| 5182 | ||
| 5454 | ||
| 5754 | Tanker body, car body panel. marine facilities, pressure container, transportation etc. | |
| 6xxx | 6061 | Railway inside and outside parts. board and bed plate. Electronics. Electrical Appliances. Consumer Durables. |
| 6083 | Industry molding | |
| 6082 | Highly stressed applications includes Roofing construction, transportation.and marine as vell as mould. | |
| 6063 | Auto parts, architectural fabrication. window and door frames,aluminum furniture electronic components as well as various consumer durable products. | |
| 7xxx | 7005 | Truss, rod/bar and the container in transportation vehicles; Large-sized hest exchangers. |
| 7050 | Forming (bottle) molds, ultrasonic plastic welding molds, golf balls, shoe molds,paper molding, foam molding. lost wax molds. templates. fixtures,machinery and equipment. | |
| 7075 | Aerospace industry. military industry, electronics. etc. | |
| 8xxx | 8011 | Mainly used to make bottle caps. but also can be used in radiators. most applications are aluminum foil. |

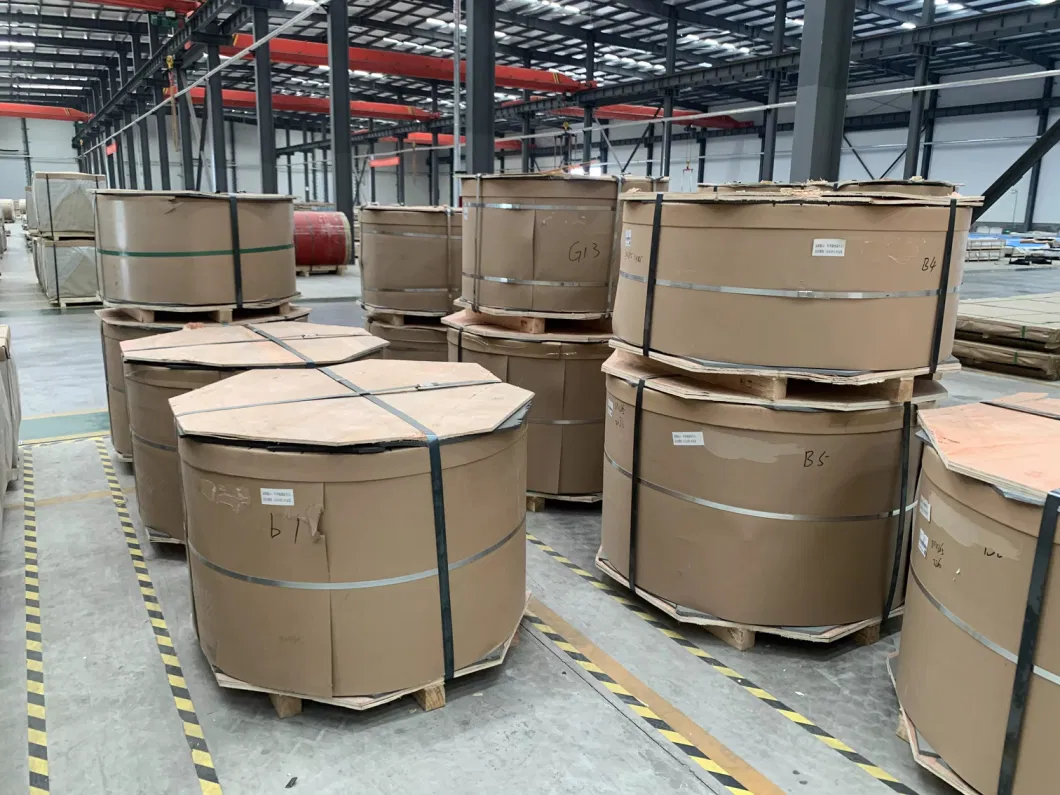

1. Standard seaworthy export packing, wooden pallets with plastics protection for our aluminium products;
2. 15-20MT can be loaded into 20'container and 21-24MT is more suitable in 40'container.
3. The other packing can be made based on the customer requirement;
4. Normally, we have four layers of packing: wooden pallets, hardboard, Kraft paper and plastic. And fill more desiccants into package.
FAQ
Q1:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q2:Can you send samples?
A:Of course, We can provide you samples for free, you just need to bear the courier costs.
Q3:How long does your delivery time take?
A:In general, our delivery time is within 15-20 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q4: Does the product have quality inspection before loading?
A: Of course, all our products have undergone strict quality inspection before packing, and unqualified products will be eliminated.
Q5:What's your payment term?
A:Usually we do T/T and L/C or combined.
Q6:Can you provide the product catalog?
A:Yes we can send you a word/PDF document of our catalog with attachment in Email.
We Shandong Honesty Aluminum Technology Co., Ltd. has a large stock of victory, various types and complete specifications. The products cover 1~8 series of multiple grades and specifications, the standing grades we have are: 1050, 1060, 1100, 2A12, 2024, 3003, 5052, 5083, 5754, 6061, 6063, 6082, 7075, 8011, etc., with high quality assurance and efficient delivery.
