2800bar 14L/M Water Blasting Equipment For2800bar 14L/M Water Blasting Equipment for Rust Remove

Get high-quality 2800bar 14L/M Water Blasting Equipment for rust removal at our factory. Our equipment is designed to eliminate corrosion effectively.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
WHY13200
Certification
CE, ISO9001-2008
Customized
Customized
Max Pressure
2800bar/40kpsi
Flow Rate
41lpm
Plunger Material
Soild Creamic
Pump Fluid End Material
High Quality Stainless Steel
Input Speed
1500/1800rpm
Reduce Type
Inner Build Gear Reducer
Lubrication Type
Force Feed Lubrication
Sealing Type
Spring Load Dynamic Seal
Crankshaft
High Strength Forging Process Material
Mounted Type
Skid Mounted or as Require
Protecting Cover
Container Full Cover as Require
Transport Package
Container or Wooden Case
Specification
3200*1500*2000
Trademark
WHY(Wuxi Hongyuan)
Origin
Wuxi, Jiangsu
HS Code
8424899990
Production Capacity
200sets/Year

Product Description

1. Production description

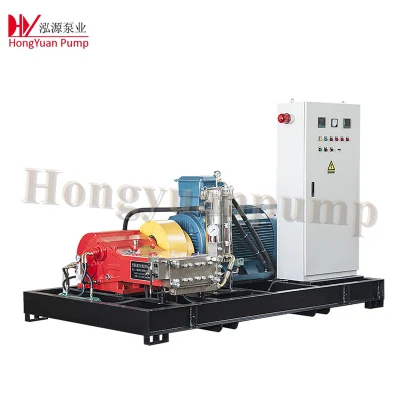

Machine name: Electric water blasting machine for steel factory pipe cleaning

Engine Speed: 1500rpm

Working pressure:2800bar

Flow rate:41LPM

Medium:Fresh water,soda ash ,oil.ect

Certification:ISO9001:2008 , CE
2800bar 14L/M Water Blasting Equipment For2800bar 14L/M Water Blasting Equipment for Rust Remove



Standard features:

*Water blasting machine (2800bar 41L/M Model WHY30020)
*Electric motor or diesel engine
*Flexible coupling
*Secondary filter 10micron filtration precision (Stainless steel)
*Safety valve
*Pressure regulating valve(Manual control or air control)
*High pressure hose
*High pressure water jetting gun (trigger type)
*Booster pump and piping system
*Rotating nozzle as require

Technical parameters:

Model Plunger Flow Required power (kw) D r.p.m
  Diameter   160kw 200kw 250kw 280kw n1 n2
  (mm) (l/min) Operating pressure (bar)
WHY30018 18 34 2400 2760     1500 366
WHY30020 20 41 1900 2400 2760   1500 366
WHY30022 22 50 1600 2000 2500 2800 1500 366

D=Piston/Plunger. dia. [mm]              n1=Motor/Engine r.p.m.            n2=Crankshaft r.p.m
N2 Plunger speed:0.73m/s                Rod force:105KN                      Stroke:120mm
1kW=1.34HP                                     Op.pressure 1bar=14.5psi=0.1Mpa  1GPM=3.78L/M

2. Company information
Wuxi Hongyuan Pump Manufacturing Co., Ltd. is a professional high pressure pump manufacturer and high pressure cleaning machine supplier . Our products strictly accord with JB/T8093-1999 standard and have passed through ISO9001 quality system.All products manufactured by the company with a pressure protection system, oil temperature control system, water flow pressure control system, control system.We focus on world leading technology, introduce the Germany technology, and constantly improve the quality system of our excellent products such as cleaning equipment and so on. This reduces the production cost and improves the work efficiency for users. According to customer requirements, they can customize products or research and develop production together.
2800bar 14L/M Water Blasting Equipment For2800bar 14L/M Water Blasting Equipment for Rust Remove


3. Certification
2800bar 14L/M Water Blasting Equipment For2800bar 14L/M Water Blasting Equipment for Rust Remove

4. Application
2800bar 14L/M Water Blasting Equipment For2800bar 14L/M Water Blasting Equipment for Rust Remove

5. Machine working on site
2800bar 14L/M Water Blasting Equipment For2800bar 14L/M Water Blasting Equipment for Rust Remove


6. Customers visit
2800bar 14L/M Water Blasting Equipment For2800bar 14L/M Water Blasting Equipment for Rust Remove

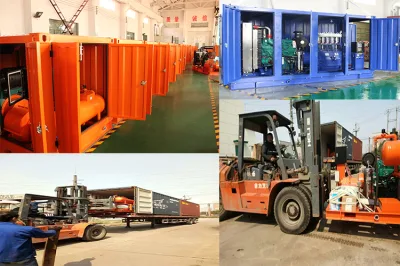

7. Packaging and shipping
2800bar 14L/M Water Blasting Equipment For2800bar 14L/M Water Blasting Equipment for Rust Remove

8. International market
2800bar 14L/M Water Blasting Equipment For2800bar 14L/M Water Blasting Equipment for Rust Remove

9. FAQ

(1)Q : What capacity of we can supply?

  A: we can as your needs to professional design.

(2)Q : How many days can delivery the goods ?

  A:The machine and deliver time is specially designed machine according to your specific requirement.

(3)Q :What does your factory do regarding products quality ?

  A: From the beginning to the end we have a special quality control personnel. Each machine is assembled and carefully tested before shipment.

(4)Q: How long is your delivery time?

   A: It is according to the model and quantity.Generally it is 3-5 days if the machines are in stock. It will be 15-30 days if you want to customize the machines.

(5) Q: What is your terms of payment?

   A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.

       Payment<=USD 5000, 100% in advance.

       Payment>=USD 5000, 40% T/T in advance, balance before shipment.
