Basic Info.
Model NO.
2/1.5B
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Suction Centrifugal
Impeller
Semi-Open
Usage
Pump, Pumps, Condensate Pump, Slurry Pump, Circulating Pump, 3/2c Slurry Pump
Mqq
1 Set
OEM
Accept
Certificate
ISO 9001, CE
After Sales
Yes
Color
Blue, Yellow, Green or as Customer′s Request
Material
Wear-Resistant Metal or Rubber
Transport Package
Packed with Wooden Box or as Customer′s Request
Specification
CE, ISO, SGS
Trademark
Naipu Or OEM
Origin
Shijiazhuang, China
HS Code
8413709990
Production Capacity
5000 Set Per Month
Product Description
Shijiazhuang NaiPu Pump is direct factory of 2/1.5B H Polyurethane Lined Slurry Pumps , with more than 30 years experience, has its own factory , mainly produce NP-NAH HH M L SP AF G series, can be 100% interchangeable with famous Brand.

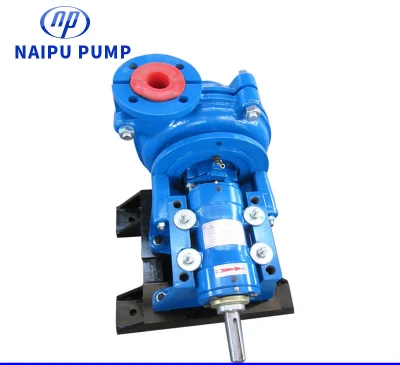

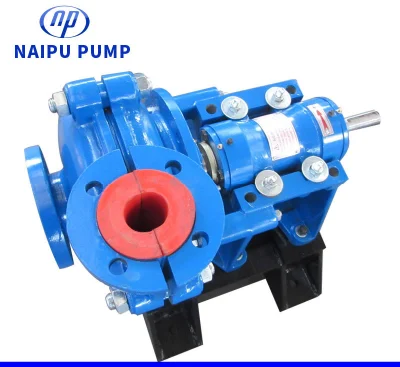

China 2/1.5B-NAH Polyurethane Lined Slurry Pumps Manufacture
Polyurethane (also named PU) is an unique material that has the elasticity of rubber combined with the toughness and durability of metal. It permits the engineer to replace rubber, plastic and metal with the ultimate in abrasion resistance and physical properties. Polyurethane can reduce plant maintenance.
Polyurethane slurry pump impeller (PUR and PU) is made by Polyurethane which is a polymer composed of a chain of organic units joined by urethane links. This impeller have better performance than natural rubber impeller for the slurry transportation.
Besides,we also have Polyurethane Cover Plate Liner,Frame Plate Liner,Throat Bush,Frame Plate Liner Insert etc.
Characteristics
The abrasion and tear resistance of Urethanes are much better than rubbers, while having higher load bearing capacity. Compared to plastics, urethanes have superior impact resistance, while having excellent wear properties and elastic memory. Besides, PU is more advance in weight reduction, noise abatement and wear resistance than metal parts.
However,Urethanes are unsuitable for temperatures exceeding 70ºC and for concentrated acids and alkalies,ketone,esters,chlorinated and nitro hydrocarbons.
Spare Parts for 2/1.5B-NAH Polyurethane Lined Slurry Pumps

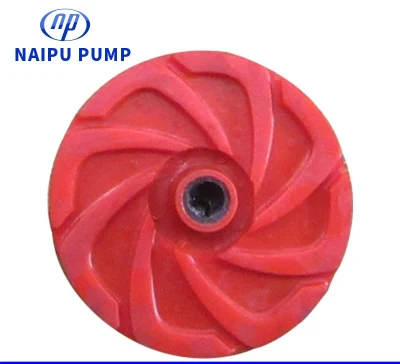

Polyurethane Impeller

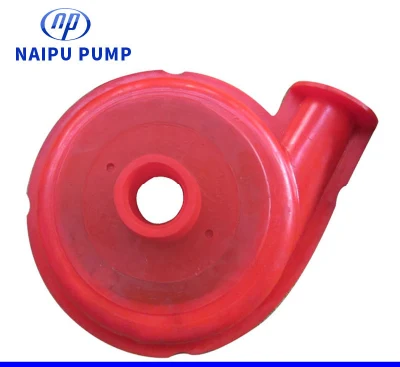

Polyurethane Frame Plate Liner

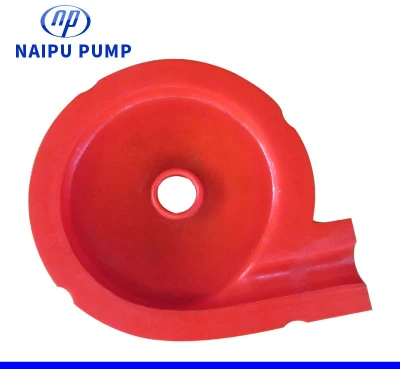

Polyurethane Cover Plate Liner
Performance Parameters
| Type | Allowable Mating Max. Power(Kw) | Clear Water Performance | Impeller | |||||
| Capacity/Q m³/hr | Head/m | Speed/rpm | Max Efficiency/% | NPSH/m | Nos of Vane | Impeller Diameter/mm | ||
| 1.5X1-NP | 15 | 12.6--28.8 | 6--68 | 1200--3800 | 40 | 2--4 | 5 | 152 |
| 2X1.5-NP | 15 | 32.4--72 | 6--58 | 1200--3200 | 45 | 3.5--8 | 5 | 184 |
| 3X2-NP | 30 | 39.6--86.4 | 12--64 | 1300--2700 | 55 | 4--6 | 5 | 214 |
| 4X3-NP | 30 | 86.4--198 | 9--52 | 1000--2200 | 71 | 4--6 | 5 | 245 |
| 6X4-NP | 60 | 162--360 | 12--56 | 800--1550 | 65 | 5--8 | 5 | 365 |
| 8X6-NP | 300 | 360--828 | 10--61 | 500--1140 | 72 | 2--9 | 5 | 510 |
| 10X8-NP | 560 | 612--1368 | 11--61 | 400--850 | 71 | 4--10 | 5 | 686 |
| 12X10-NP | 560 | 936--1980 | 7--68 | 300--800 | 82 | 6 | 5 | 762 |
| 14X12-NP | 560 | 1260--2772 | 13--63 | 300--600 | 77 | 3--10 | 5 | 965 |
| 16X14-NP | 1200 | 1368--3060 | 11--63 | 250--550 | 79 | 4--10 | 5 | 1067 |
| 18X16-NP | 1200 | 2520--5400 | 13--57 | 200--400 | 85 | 5--10 | 5 | 1370 |
Company Information
NaiPu Pump is devoted to pump solution industry for more than 30 years!
The Pumps are widely used in in metallurgy, mining, Nonmetallic Mining, Coal, Energy
resources, Sand mining, Dredging, Environmental protection, Petrochemical engineering, Flue gas desulfurization and other industrial departments.
The Pumps have been exported to USA, Canada, Germany, Russia , Australia, South Asia, North America, South Africa, and etc , up to more than sixty countries.
NaiPu Main products
1. NAH , AHF,Horizontal Slurry Pump
2. SP Vertical sump pump
3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Froth Pump
8. TL(R) Desulphurization Pump
8.Clean Water Pump
9. OEM Casting machinery parts
Metal Liner Heavy Duty Slurry Pump NAH TYPE
1.5/1B 2/1.5B 3/2C 3/2CC 4/3C 4/3CC 4/3D 4/3DD 6/4D 6/4DD 6/4E 6/4EE 8/6E 8/6EE 8/6F 8/6FF 8/6R 10/8ST 10/8F 10/8FF 12/10ST 12/10G 12/10F 12/10FF 14/12ST 14/12G 14/12FF 14/12F 16/14TU 20/18TV Rubber Liner Heavy Duty Slurry Pump NAH TYPE
1.5/1BR 2/1.5BR 3/2CR 3/2CCR 4/3CR 4/3CCR 4/3DR 4/3DDR 6/4DR 6/4DDR 6/4ER 6/4EER 8/6ER 8/6EER 8/6FR 8/6FFR 8/6RR 10/8FR 10/8XR 12/10STR 14/12STR 16/14TUR
1.5/1BR 2/1.5BR 3/2CR 3/2CCR 4/3CR 4/3CCR 4/3DR 4/3DDR 6/4DR 6/4DDR 6/4ER 6/4EER 8/6ER 8/6EER 8/6FR 8/6FFR 8/6RR 10/8FR 10/8XR 12/10STR 14/12STR 16/14TUR
Metal Liner Vertical Slurry Pump SP TYPE
40PV-SP 65QV-SP 100RV-SP 150SV-SP 200SV-SP 250SV-SP Rubber Liner Vertical Slurry Pump SP TYPE
40PV-SPR 65QV-SPR 100RV-SPR 150SV-SPR 200SV-SPR Metal Liner High Head slurry pump HH TYPE
1.5/1C-HH 3/2D-HH 3/2DD-HH 4/3E-HH 4/3EE-HH 6/4F-HH 6/4FF-HH 6/4x- HH 6S-H 8/6S-H 8/6X-H 6S-HP 8/6S-HP 8/6X-HP Metal Liner (Rubber Liner)Slurry Pump M TYPE
10/8E-M(R) 10/8R-M(R) Metal Liner (Rubber Liner)Frothy Slurry Pump AF TYPE
2QV-AF(R) 3QV-AF(R) 6SV-AF(R) 8SV-AF(R) Metal Liner Gravel Pump G TYPE
6/4D-G 6/4DD-G 6/4E-G 8/6E-G 8/6EE-G 10/8F-G 10/8FF-G 10/8S-G 12/10F-G 12/10FF-G 12/10G-G 14/12F-G 14/12FF-G 14/12G-G 10/8S-GH 10/8F-GH 10/8FF-GH 12/10G-GH 12/10F-GH 12/10FF-GH 14/12G-G 14/12T-G 18/16 T-G Metal Liner (Rubber Liner ) Slurry Pump L TYPE
20A-L 50B-L 50B-LR 75C-L 100D-L 150E-L 300S-L
Naipu Workshop
Naipu have own casting , Machining , Assembly workshop.
| Factory Name | Shijiazhuang NaiPu Pump Co.,Ltd |
| Manufacturer or Trading Company | Manufacturer |
| Workshop | Foundry, Machining, Assembly |
| Year the company was established | 2007.01.10 |
| Number of employees | 162 |
| Designed capacity of factory | 3,000.T Resin Sand 2500T Lost Foam Casting 500T |
| Factory area in m2 | 20,000m2 |
| Does the factory record rejects. If so what is the reported reject rate for past 12 months. | Yes, We record. the reported reject rate for past 12 months =7.6% |
| Quality System Certification | ISO9001-2015 |
| Types of Material the company produces | Ductile Iron Chrome Iron Alloy Steel Rubber |
| Melting Equipment | Induction 2T X 2 |
| Non destructive inspection equipment. | Ultrasonic testing equipment UT Dye penetrant testing PT |
| typical products the foundry makes | Slurry Pump Wet End Parts Hydrocyclone Parts Wear resistant castings |
| Minimum and maximum casting weight for each moulding system | Max. 3.0T , Min. 3Kg |
Our Service
1. Quick Reply
Your inquiry related to our products or prices will be replied within 8 hours.
2.Pump Choice .
We can help to select the suitable pump,Please Provide us the detailed requirement , Usage , Flow , Head , and S.G.
3.Technical Surport .
We have a group of high quality technicians with rich experience who can solve everything during the whole process.
4.Guarantee quality.
All the products have proved by ISO 9001:2008, CE, SGS. And also will be inspected strictly before delivery.
5.Perfect after -sales .
We will be responsible for the whole life period
6.OEM order.
Many material are available ,like High chrome, rubber , stainless steel and etc.Steely alloy.
