Basic Info.
Model NO.
JSQ-8LH
Housing Material
Steel
Control Mode
Wire Control Edition
Usage
Bathroom, Kitchen, Swimming Pool
Certification
ISO9001, CB, RoHS
Advantage
Compact
Control
Knob Control
Efficience
89%
Safety Device
Over Temperature Safety
Voltage (V)
220V
Burner
Sealed Combustion Chamber
Heat Input
24kw
Connectors Spec
R 1/2
Brand Name
Vangood
Exhasut Way
Forced Exhasut
Warranty
1 Year
Water Pressure
0.02~0.8MPa
Exhaust Type
Forced Exhaust
Protection Grade
Ipx5
Electric Power
38W
Transport Package
5 Layer Carton
Specification
710*430*240mm
Trademark
Vangood
Origin
Zhongshan
HS Code
8419110000
Production Capacity
50000PCS/Year

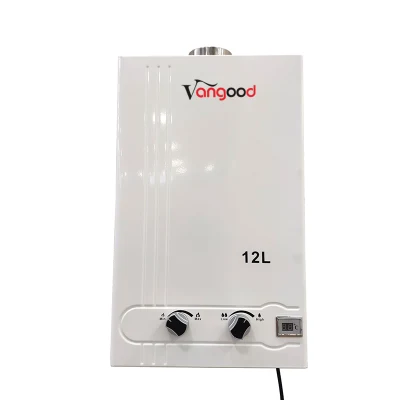

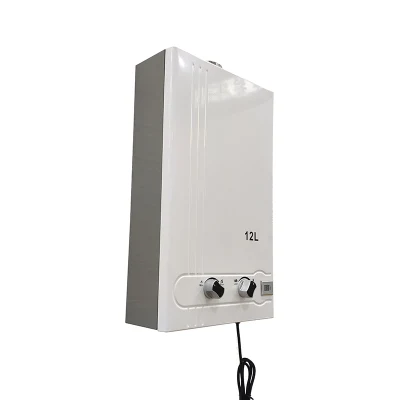

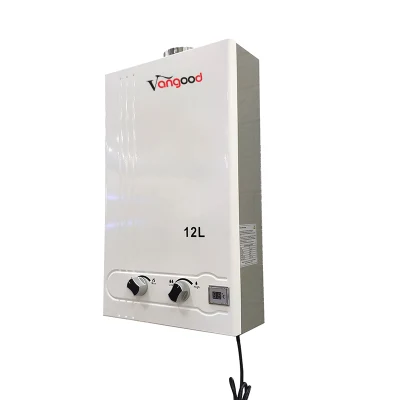

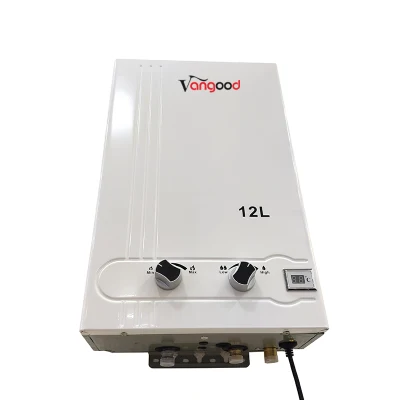

Product Description
Product | Domestic Gas Hot Water Heating System | ||
Installation | Wall Mounted | ||
Operation | Mounted in kitchen, bathroom, etc. | ||
Exhaust Way | Force Exhaust Type | ||
Capacity | 12-14L | ||
Temperature Range | 35ºC - 65ºC | ||
Panel Material | Stainless Steel / Powder Coated / Glass | ||
Color | Black / White / Silver | ||
Water Pressure | 0.02-0.8Mpa | ||
Ignition Model | Automatic elecrical pulse ignition 220V AC | ||
Heat Efficiency | ≥85% | ||
Use Gas Type | LPG / NG | ||
Rated Gas Pressure | LPG:2800pa NG:1300pa OR 2000pa | ||
Rated Voltage | 220V/50HZ & 110V/60HZ | ||
Connection Pipe Spec | Water Inlet/Outlet: G1/2; Gas Inlet: G1/2 | ||
Rate Heat Input Power | 20KW | 24KW | 28KW |
Max Flow Rate (rise 25ºC) | 10L/Min | 12L/Min | 14L/Min |
Max Flow Rate (rise 20ºC) | 12L/Min | 15L/Min | 18L/Min |

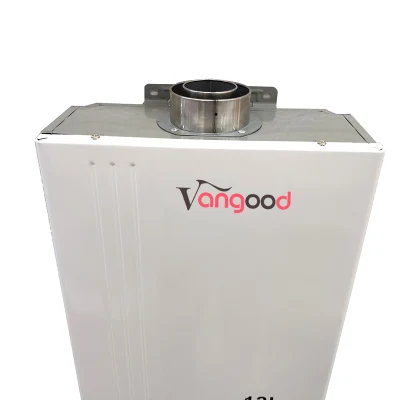

Flue Duct Diameter | Φ100(external), Φ60(internal) |
- Gas type: Natural gas or LPG
- Gas pressure: 20 mbar / 28-30mbar
- Power: 24 KW
- Nominal Output power: 21 kW
- Connection: 220-240 Volt
- Max. power consumption: 45 Watt
- Size: 380x630x160 mm
- Minimum water pressure: 0,2 bar
- Maximum water pressure: 8 bar
- Water flow: between 3 and 12 liters per minute
- Temperature range: 35 to 65 degrees
- Connection flue gas discharge: 60/100 mm
- Weight: 13.5 kg.
- Power cord with plug included
What is the feature of the intdoor gas water heater?
- Gas pressure: 20 mbar / 28-30mbar
- Power: 24 KW
- Nominal Output power: 21 kW
- Connection: 220-240 Volt
- Max. power consumption: 45 Watt
- Size: 380x630x160 mm
- Minimum water pressure: 0,2 bar
- Maximum water pressure: 8 bar
- Water flow: between 3 and 12 liters per minute
- Temperature range: 35 to 65 degrees
- Connection flue gas discharge: 60/100 mm
- Weight: 13.5 kg.
- Power cord with plug included
What is the feature of the intdoor gas water heater?
This is the safest type of gas water heaters available in the market. The fresh air inlet comes from outside and the exhaust gasses are pushed outside. This makes it possible to mount the water heater in any (bath-) room without restrictions.
The temperature is controlled by thermostats. Automatic safety controls are fitted to the water heater to provide safe and
efficient operation.
The temperature is controlled by thermostats. Automatic safety controls are fitted to the water heater to provide safe and
efficient operation.
1. Production based on the standard of ISO9001 & ISO14001;
2. Provide 1% quantity easy broken spare parts and 1 year warranty;
3. If defect of device is caused by our quality, we can replace it;
4. 10 years manufacture & export experience that we know what you want.
Q: Are you trading company or manufacturer ?
A: We are factory, located at Dongfeng Town, Zhongshan City, China. Welcome your visit anytime!
Q: How long is your delivery time?
A: For 1st order, it is 35-45 days. For Repeat order, it is 25-35 days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we provide samples by 1.5 times of unit price. And, this sample fee will be rebate to you during 1st mass production order.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment, or 100% LC at sight.
Q: What is your major product?
A: Our major product is Gas Water Heater, Electric Water Heater, Gas Hob, Range Hood, Gas Oven, and other kitchen appliances.
Q: Can you do SKD or CKD?
A: Yes, we can. We have been in cooperation with SKD/CKD customers from Vietnam, Pakistan, India, Brazil, Mexico, Turkey. The SKD/CKD format is customized.
