Basic Info.
Name
Cyclone Separator
Size
DN100
Medium
Natural Gas
Pressure
40bar
Transport Package
Wooden Case
Origin
China
Production Capacity
1000
Product Description

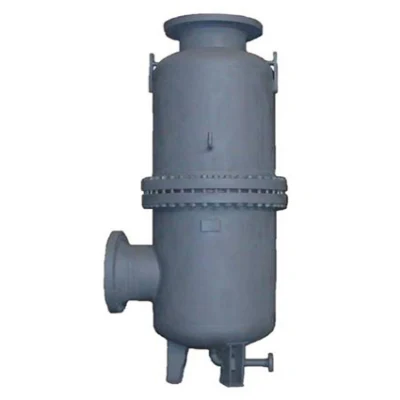

cleaning machine Cyclone Separator for LNG gas station
The main function of the cyclone separator is to remove as much as possible the solid particle impurities and droplets carried in the transport medium gas, to achieve gas-solid-liquid separation, in order to ensure the normal operation of pipelines and equipment.
The cyclone separator adopts a vertical cylindrical structure and is internally divided into a liquid collection zone, a cyclone separation zone, and a clean room zone. Built-in cyclone components are evenly arranged in the circumferential direction and fixed by the upper and lower tube plates; the equipment adopts skirt support and the head adopts high-pressure end seals.
Working Principle

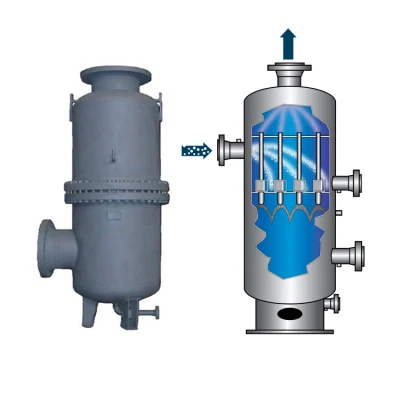

Natural gas enters the cyclonic separation zone of the equipment through the entrance of the equipment. After the impurity-containing gas enters into the cyclone component in the axial direction, the airflow is strongly rotated by the guiding action of the guide vanes. The airflow spirally enters the cyclone cylinder along the cylinder. The dense droplets and dust particles are thrown toward the wall by centrifugal force, and they fall down the cylinder wall under the action of gravity and flow out of the cyclone dust outlet to the bottom liquid storage area of the equipment, and flow out from the liquid outlet at the bottom of the equipment. The rotating air stream shrinks and flows toward the center in the cylinder body, forming a secondary vortex flow upwards to the purified natural gas chamber through the air guide tube, and then flows out through the top outlet of the equipment.
DATA SHEET
Our sale network spread all over the country and exporting to abroad. We are high quality supplier of China National Petroleum Corporation, China Petroleum& Chemical Corporation, China Resources Gas, PetroChina Kunlun Gas Ltd, Shenzhen Gas Corporation Ltd, Chengdu City Gas, Chongqing Gas Corporation Ltd. As good quality and service to became each gas group's training base for regulator equipment care and maintenance, set up good industry brand position.
The main function of the cyclone separator is to remove as much as possible the solid particle impurities and droplets carried in the transport medium gas, to achieve gas-solid-liquid separation, in order to ensure the normal operation of pipelines and equipment.
The cyclone separator adopts a vertical cylindrical structure and is internally divided into a liquid collection zone, a cyclone separation zone, and a clean room zone. Built-in cyclone components are evenly arranged in the circumferential direction and fixed by the upper and lower tube plates; the equipment adopts skirt support and the head adopts high-pressure end seals.
Working Principle
Natural gas enters the cyclonic separation zone of the equipment through the entrance of the equipment. After the impurity-containing gas enters into the cyclone component in the axial direction, the airflow is strongly rotated by the guiding action of the guide vanes. The airflow spirally enters the cyclone cylinder along the cylinder. The dense droplets and dust particles are thrown toward the wall by centrifugal force, and they fall down the cylinder wall under the action of gravity and flow out of the cyclone dust outlet to the bottom liquid storage area of the equipment, and flow out from the liquid outlet at the bottom of the equipment. The rotating air stream shrinks and flows toward the center in the cylinder body, forming a secondary vortex flow upwards to the purified natural gas chamber through the air guide tube, and then flows out through the top outlet of the equipment.
DATA SHEET
| Main Shell | Q345R |
| Cyclone Tube | S.S |
| Vane Mist Extractor | Used imported raw materials |
| Working Pressure | 9.9Mpa |
| Working Temeprature | "-20 - +60 C |
| Type | DN | PN | Diameter(mm) | Length(mm) |
| XF-100 | 100 | 1.6~6.3MPa | 400 | 1200 |
| XF-150 | 150 | 1.6~6.3MPa | 500 | 1500 |
| XF-200 | 200 | 1.6~6.3MPa | 600 | 1800 |
| XF-250 | 250 | 1.6~6.3MPa | 800 | 2300 |
| XF-300 | 300 | 1.6~6.3MPa | 800 | 2300 |
| XF-350 | 350 | 1.6~6.3MPa | 1000 | 2800 |
| XF-400 | 400 | 1.6~6.3MPa | 1200 | 3200 |
| XF-500 | 500 | 1.6~6.3MPa | 1500 | 4500 |
