Basic Info.
Packaging & Delivery
Product Description
Product Information

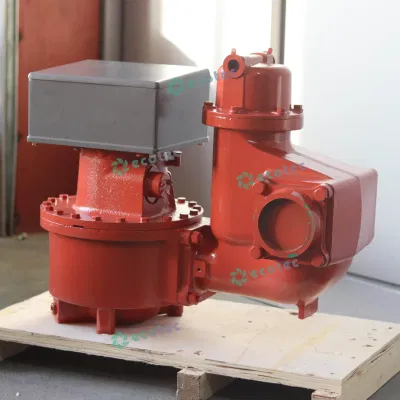

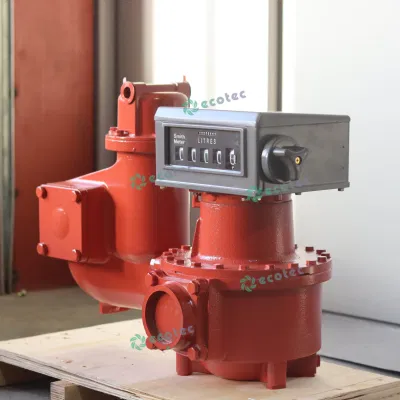

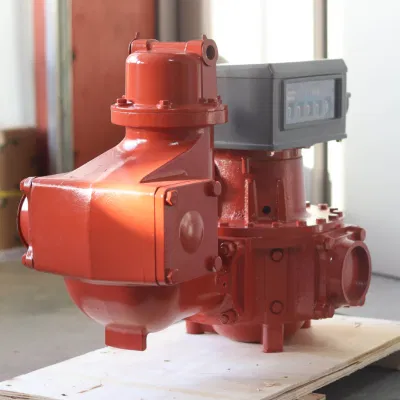

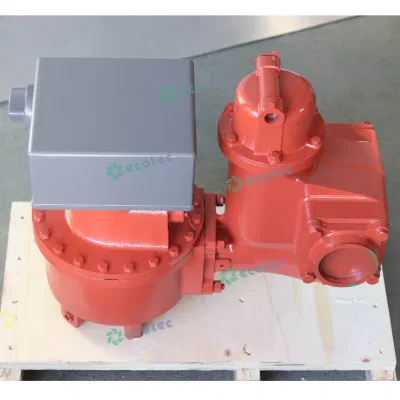

LC METER have excellent stepless adjusting mechanism allows a micro adjustment of the meter.
High accuracy and repeatability over the widest range of flow;superior accuracy at constant flow
Low maintenance,no metal-to-metal contact in measuring chamber,long life service
Low pressure loss,a true gravity flow meter
Accuracy regardless of pressure fluctuations,temperature variation,viscosity
Choice of aluminum,cast iron and stainless steel material of construction
| Model | M-40-1 | M-50-1 | M-80-1 | M-100-1 | M-150-1 |
| Size | 1.5'' | 2'' | 3'' | 4'' | 6'' |
| Flow Range | 25-250L/MIN | 55-550L/MIN | 115-1150L/MIN | 170-1700L/MIN | 300-3000L/MIN |
| Volume Per Revolution | 0.309L | 0.681L | 1.839L | 5.102L | 9.507L |
| Max.Pressure | 10Bar | ||||
| Accurancy | ±0.2% | ||||
| Repeatability | ≤0.07% | ||||
| Standard Measurement | Liter/US Gallon/IMP Gallon | ||||
| Dimension | 51*46*49 cm | 51*46*50 cm | 58*50*61 cm | 76*64*72 cm | 80*65*79 cm |
| Net Weight | 23KG | 26KG | 40KG | 70KG | 130KG |
| Gross Weight | 25KG | 28KG | 47KG | 93KG | 180KG |
| Package | 1 PCS/CARTON | 1 PCS/WOODEN BOX | |||
Advantage:
Excellent stepless adjusting me chanism allows a micro adjustment of the meter
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
Low maintenance, no metal-to-metal contact in measuring chamber, long life service
Low pressure loss, a true gravity flow meter
Accuracy regardless of pressure fluctuations, temperature variation, viscosity
Choice of aluminum, cast iron and stainless steel materials of construction.
Characteristics:
- Excellent stepless adjusting mechanism allows a micro adjustment on the meter;
- High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow;
- Low maintenance, no metal-to-metal contact in measuring chamber, long life service;
- Low pressure loss, a true gravity flow meter;
- Accuracy regardless of pressure fluctuations, temperature variation, viscosity.
Note:4"&6" flange available for M-150/6" Meter.
Construction:
Application:
- Refined petroleum products; A wide variety of products such as: liquid sugars, corn syrup, corn sweetners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil,. Aviation gasolines and jet fuels;
- Treated waters (deionized, demineralized, and potable);
- Chlorinated solvents and general solvent metering;
- Acid pH liquids;
- Liquefied petroleum gas(LPG);
- Crude oil, also for heated and/or viscous liquids;
- Oil or water based latex products, polyester resins, and adhesives (neutral pH), also for metering herbicides and nitrogen fertilizer solutions;
- Herbicide;
- Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids
- Abrasive liquids
Industries:
Automotive; Adhesives; Agriculture; Asphalt ; Aviation fueling ; Animal feeds; Beverage; Cosmetics ; Chemical processing; Concrete Add mixtures; Dairy; Liquid fertilizers; Food processing ; Fuel oil delivery; General industrial; Hydrocarbon processing; Liquefied gases; Lube oils; Marine; Paint and varnish; Petroleum marketing; Petroleum production ; Pharmaceutical; Printing ink; Pulp &paper; Refining commercial Solvents; Recycling Railroad ; Textile.
