Fine Desulfurization Equipment for Natural Gas Application

I. Introduction:
The Dry Desulfurization system can be customized according to the user's gas hydrogen sulfide (H2S) content,  required replacement cycle, and other related data.

With the professional design, the size of gas desulfurization equipment, and internal structure for different projects can be very different. It will be customized according to various working conditions, such as types of gas, hydrogen sulfide content, gas pressure and etc.

The desulfurization system is suitable for the gas with low hydrogen sulfide content, large processing capacity, and requires high desulfurization precision. It is especially useful for prolonging the service life of the methane utilization equipment.

Biogas flows from one end of the desulfurization tower to the other end after being purified by a packed layer (mainly composed of activated carbon and iron oxide). Hydrogen sulfide reacts with iron oxide in the filler layer to form iron sulfide, which can be regenerated after the reaction.

Characteristics:

* Low initial investment

* Easy operation

* Reliable performance

* No power consumption

* Regular replacement of the H2S scavengers

Desulfurization principle:

Fe2O3· H2O+ 3H2S = Fe2S3+ 4 H2O

Regeneration principle:

Fe2S3 + 3/2 O2+ 3 H2O = Fe2O3 ·H2O + 2 H2O+ 3 S
II. Company Profile:
Mingshuo Group, located in Linqu, Weifang, China, 140km away from Qingdao Port, dedicated in desulfurizer for hydrogen sulfur and equipment manufacturing, products covered iron oxide desulfurizer and hydroxyl iron oxide desulfurizer etc., and equipment covered dry, wet, BDS and iron base etc. With register capital RMB 88 million and more than 200 employees after nearly two decades development, factory occupied more than 100 thousand square meters, and ISO9001, ISO14001 and ISO45001 certificated.
Mingshuo established powerful R&D, cooperated with Beijing University of Chemical Technology, endeavor to build the top brand in desulfurizing area to create value for customers.
Base on "Create infinite by finite", focus on talent growth, Mingshuo endeavor to build high effiency supply chain with advanced equipments and lean management, and gain high reputation from both domestic and overseas' customers.

III. Workshop


IV. Transportation:

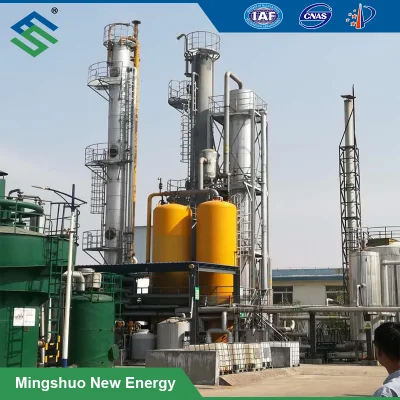

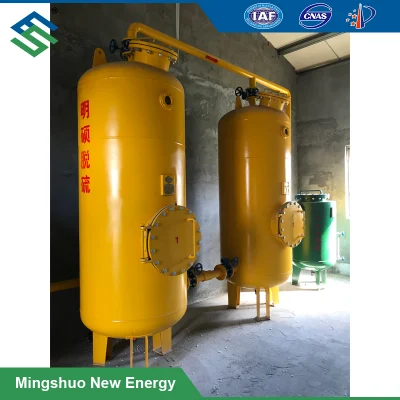

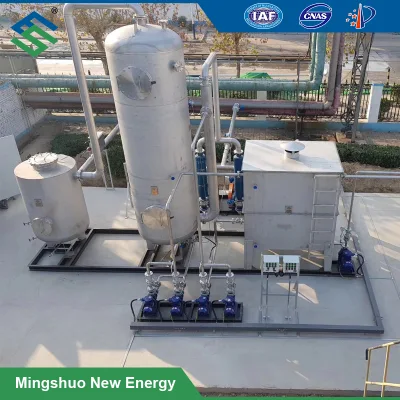

VI. Cases of Equipment

VI. Certificate

VII. Several Partners:
