Product Description
Working Principle of Silicon powder tumbler vibrating screen machine
Because of the motion trajectory of the griddle box, the Tumbler screen machine is also called compound circle screen. The vibration force produced by the drive system is a kind of inertia force which is circling the dead axle and changing regularly. Intrinsically, it is a kind of centrifugal force given by the eccentricity mass circling around the dead axle. The sieve is ususlly installed horizontally or with tiny angle(0°-5°).
Technical Data of powder tumbler vibrating screen sifter
Model | Availability of screening area (m*m) | Screen slope (angel) | Grain size(mm) | Frequency(r/min) | Double amplitude(mm) | Power(kw) | Process capacity(t/h) |
HXSY-600 | 0.292 | 0-10 | ≤100 | 750
960
1500
| 5-8 | 0.25 | 6-10 |
HXSY -1000 | 0.785 | 5-8 | 1.5 | 8-15 | |||
HXSY -1200 | 1.13 | 5-8 | 2.2 | 15-30 | |||
HXSY -1600 | 1.83 | 5-8 | 2.2 | 25-50 | |||
HXSY -2000 | 2.63 | 5-8 | 4.0 | 30-60 | |||
HXSY -2600 | 5.31 | 5-8 | 5.5 | 45-60 |

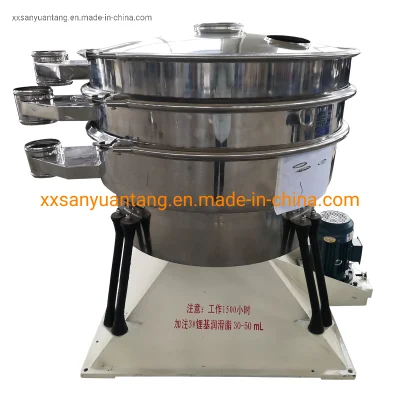

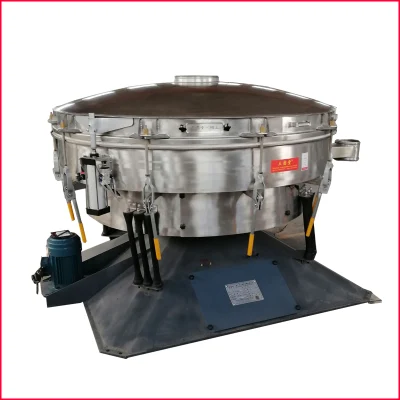

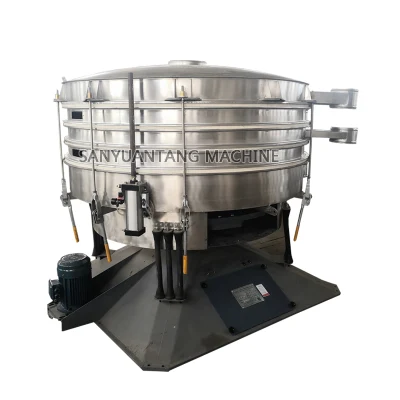

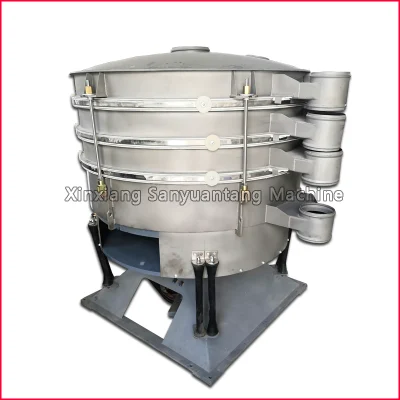

Photos of tumbler vibrating screen sifter machine
Applications of powder tumbler vibrating screen
Tumbler Screening Separator is suitable for food industry, pharmaceutical industry, chemical industry and other spherical, cylindrical, flake, or even irregularly shaped materials that are easy to block the net and require precise screening. Application materials: citric acid, milk powder, starch, sugar, vitamins, spices, tea, feed, plastics, rubber, fertilizer, sugar and salt industry, renewable resources, EPS, PVI, PVC, resin, etc.
Xinxiang Sanyuantang Machine Co., Ltd. is located in Xinxiang High-tech Industrial Zone. It is a large-scale vibration equipment enterprise integrating scientific research, production and sales. In 2016, it passed the ISO9001 international quality management system certification. The company is committed to the production and sales of vibrating screen equipment, conveying and lifting equipment. Our products mainly include gyratory sieve , circular tumbler screen, rotary vibrating screen, ultrasonic vibrating screen, linear vibrating screen, filter sieve, air flow sieve, ,lab test sieve shaker, and a series of products such as conveying and lifting equipment.
1> Material name: _____, bulk density :_____kg/m³ or ____g/cm³,and water content about _____%.
2> Capacity required___kg/h
3> How many layers?____ layers.
4>The mesh size for each layer: ____ mm, ____ mm, ____mm. Or ____ mesh, ____ mesh, ____ mesh.
5> Voltage and frequency:____V, ___HZ, 3 phase
6> Sea port name or address for shipment.
Q:What is the real delivery time of your factory?
A: 10 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipment are the most durable type in the industry, this is also the feature of the label impression of SYT for most of our customers at home or abroad.Skilled workers and strict quality control system can ensure every machine with best working performance.
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include. If you are interested in our products, please feel free to send me an inquiry or contact any time. I will provide you with the best service and the most favorable price.
Please write down your inquirement, and send to me!
