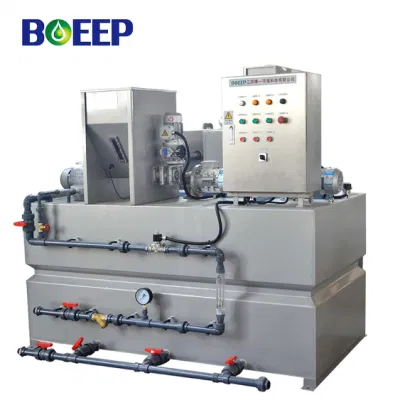

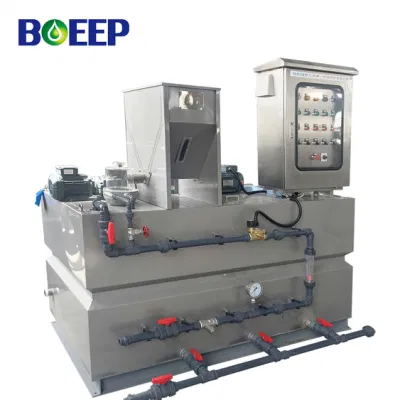

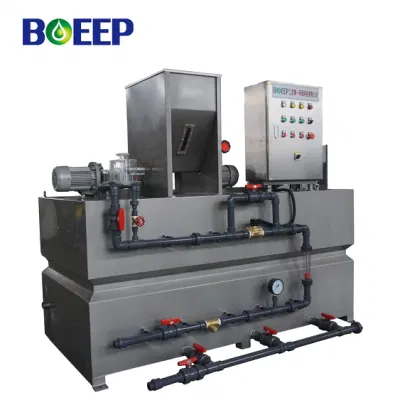

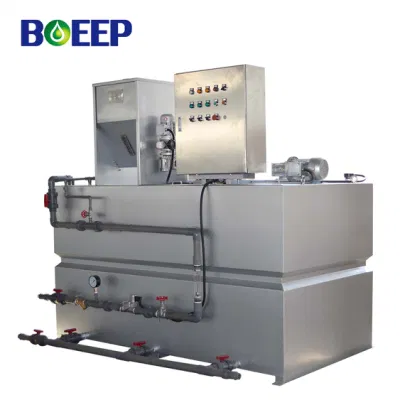

Floc Water Treatment Sewage Treatment Plant Chemical Dosing Device

The automatic dosing machine is widely used in the waste water treatment, it can mix the compounds continuously and effectively, so the reactive polymer solution appears.
These main components of the machine: Polymer feed machine (including material hopper), Dry powder infiltration device, Tank, Level controller, Mixer, Dosage water inlet pipe, Electric control panel.

• Polymer dosing device

Polymer dosing device is composed of hopper, push screw, electric heater and etc. The effective volume of the hopper can meet the dosage for a long time which is equipped with sight glasses for observing material level monitored by the dry powder level meter. The push screw driven by the high-precision reducer can satisfy the dosage. The electric heater can be installed in the discharge pipe of push screw, and it can prevent the powder from caking.

• Polymer dissolving device

Polymer dissolving device is composed of pre-soaking device, tank, and 3 sets of mixers. The pre-soaking device is to infiltrate and mix the polymer powder in advance. The 3 tanks are precast mixing tank, homogeneous slaking tank and solution storage tank, in which there is a mixer correspond to guarantee the homogeneity.

• Water supply device

Water supply device is composed of pipeline, manual ball valve, filter, pressure gauge, solenoid valve, stop valve, and the rotor flow meter, etc.

• Fully automatic operation including automatic dosing, dissolving and feeding.
• The highly precise dry polymer dosing device and the well-designed heater device can prevent the polymer from caking.
• The dosage of dry powder and water can be adjustable, so the solution with any concentration can be prepared.
• Optional: Vacuum feeding machine
• Optional: on-line dilution system
• Tank material: SS304 or SS316l, Polypropylene PP, FRP etc.

FAQ
------------------------------------------------------------------------------------------------------------------------------------------------------
Q: Are you trading company or manufacture?
A: We are both manufacture and trading company. We have over 20 years' professional experience as a waste water treatment equipment manufacturer and engineering service enterprise.

Q: Where is your factory located?
A: Yangzhou City, which is very close to Shanghai with only less than 3 hours' driving.

Q: Do you provide OEM service?
A: Yes. Any required logos is available.

Q: How about the production capacity of your company?
A: Our factory covers area over 20,000M ² and produces machines 2000 sets per year.

Q: How could we trust you and your company? This is first time transaction?
A: Our company has more than 20 years professional experience. We cooperate over 1000 customers in China and overseas. We export nearly 40 countries all over the world. Welcome to our company and watch our plant production condition any time.

Q: What certificates do you have?
A: CE/ISO/SGS

Q: Do you offer after-sales service?
A: Yes. Engineers available.

Q: How long is your warranty?
A: One year after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.

Q: What about your delivery Time?
A: Normally within 45 days against down payment.

Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.

Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM

Q: What kind of transportation do you offer?
A: Customers decide freight mode, Air, Land & Sea
