Basic Info.
Model NO.
CLW9080GYXVC
Fuel
Diesel
Tank Volume
8000L
Drive Wheel
4x2
Hoesrpower
150-250hp
Condition
New
Chassis Brand
Dongfeng, Foton, Sinotruk HOWO, etc.
Drive Model
Right Hand Drive & Left Hand Drive
Wheelbase
4200 mm
Tank Capacity
8.0 Cbm
Tank Material
6mm Carbon Steel
Vacuum Pump
Famous International Brand
Sewage Suction Pipe
8m
Suction Time
No More Than 5mins
Effective Suction
No Less Than 8m
Logo and Pattern
as Customer′s Request
Certificate
ISO SGS BV Soncap
Painting
Optional
Logo
Customized
Testing
Water Testing
Transport Package
Bulk Ship, RO-RO, Container
Specification
10cbm, 11cbm, 12cbm, 10ton 11ton 12ton
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909090
Production Capacity
500 Unit/Month
Product Description
Product Description
1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2. Chassis Brands: Our factory has good business relationship with DONGFENG, FOTON, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
3. Tanker body: From 2m3 to 25 m3 capacity.
4. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
Specification
Reference Photos
Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
Contact Jacky for more details
Hubei Chengli Special Automobile Co., Ltd
Hubei Weiyu Special Vehicles Co.,Ltd
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 2614-2615, Block B, Longyang Time Square, Hanyang District, Wuhan, China
Customised Truck & Trailer Solutions to Meet Your Requirements
1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2. Chassis Brands: Our factory has good business relationship with DONGFENG, FOTON, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
3. Tanker body: From 2m3 to 25 m3 capacity.
4. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
Specification
| Vehicle Description | |
| Overall dimensions | 6610*2500*3250 mm |
| Curb Weight | 5400kg |
| Chassis brand | FOTON |
| Traction type | 4*2 |
| Tanker Description | ||
| Tanker | Capacity | 8000L |
| Material | 6mm thickness, high quality carbon steel | |
| Structure | Welding, vacuum tank, Cylindrical | |
| Pump | Type | Double vacuum pump |
| Flux | 68(L/S) | |
| Rating speed | 800~1000(r/min) | |
| Shaft power | 5(kw) | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
| Manufacture | Hangzhou WEILONG Pump Co., Ltd. | |
| Pipe | Suction and discharge pipe | |
| Special function | Suction time ≤ 5mins, effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45 | |
| Standard configuration | Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. | |
| Optional configuration | Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank | |
| Chassis Description | ||
| Chassis model | FOTON | |
| Cab | Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. | |
| Traction type | LHD or RHD | |
| Drive type | 4*2 | |
| Wheelbase | 420 0mm | |
| Tire specification | 9.00-20 | |
| Tire quantity | 6+1 units | |
| Engine | Emission level | Euro 1/2/3/4 |
| Displacement/output | 5900ml/125kw | |
| Horse power | 170hp | |
| Gear box | Model | China famous brand |
| Number of gears | 5 forward gears& 1 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake | |
| Axle | Front | 5T |
| Rear | 8T | |

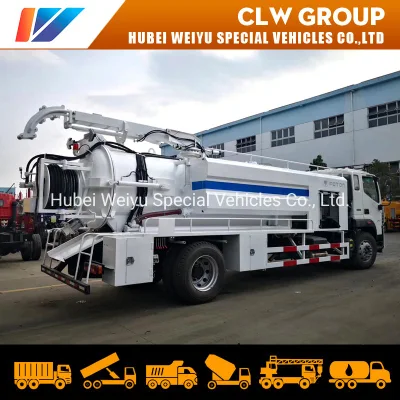

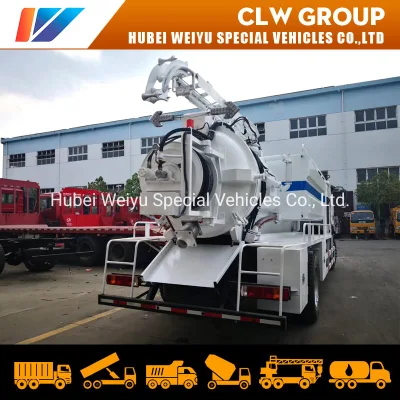

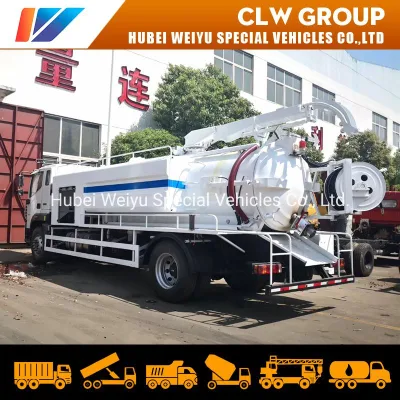

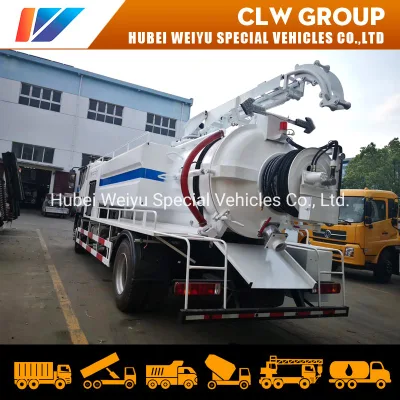

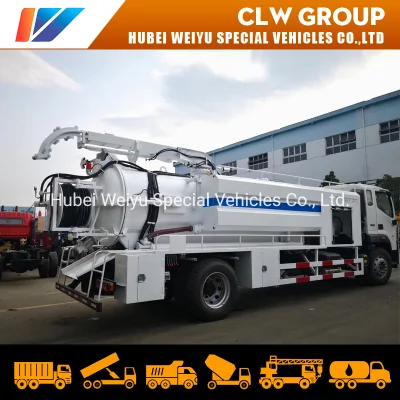

Reference Photos
