Basic Info.
Model NO.
Fracturing ball head
Transport Package
Skid
Specification
8, 350 x 2, 400 x 3, 000 mm
Trademark
SAINTWAH
Origin
Saintwah Inc.
HS Code
8207801000
Production Capacity
10000
Product Description

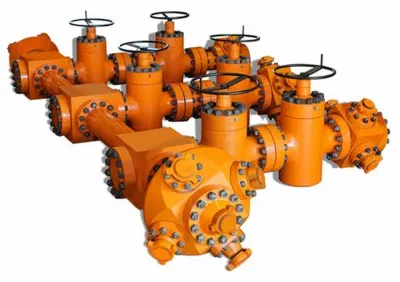

Fracturing ball head _ Fracturing sets and high-pressure fittings

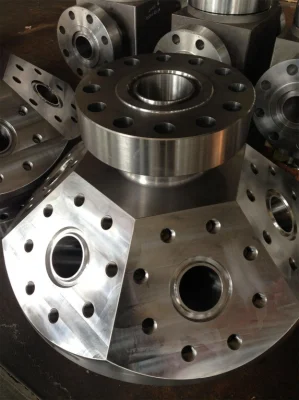

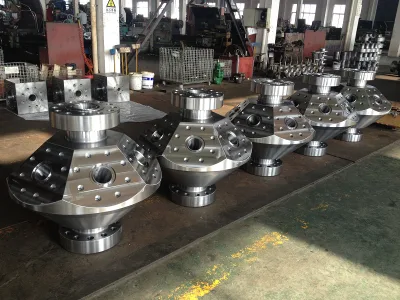

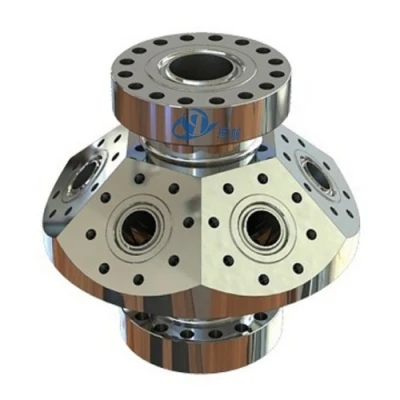

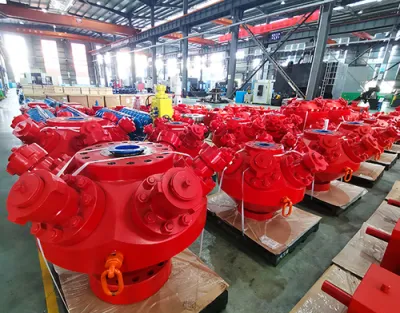

Fracturing ball head
High-performance alloy steel forged body.
The design of the inner cavity channel is reasonable, and the erosion is reduced.
The shape design is reasonable, providing a large space for pipeline connection.th balanced tail bar effectively reduces torque.
HYD type piston type action hydraulic actuator, can remotely control valve opening and closing.
When the hydraulic valve is normally closed, the valve can be locked by manual device.
Basic Parameterss
| Applicable valve diameter | 2-1/16"~7-1/16" |
| Work pressure | 10000psi~20000psi |
| Material level | AA,BB,CC,DD,EE,FF |
| Operating temperature | -60ºC~121ºC(KU) |
| Specification level | PSL1~PSL3G |
| Performance level | PR1,PR2 |
| Anti-sand properties | Fracking 50 sections did not enter sand |
| Low torque | 250N*m |
