FRP GRP Covered Gratings Platform Walkway Carwash Tree Grate

Explore our range of FRP GRP Covered Gratings, Walkway, Carwash, and Tree Grate products. Made at our factory with top-quality materials.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Certifications
  • Company Profile
  • Customer Photos
Overview

Basic Info.

Model NO.
25/30/38/50/65mm frp
Material
FRP
Fiber Type
GFRP
Type
Polyester FRP
Description
Flame Retardant Anti-Slip Grating
Purpose
Platform Walkway
Center Distance
25*25/30*30/38*38/50*50/65*65
Panel Size
1220*2440/1220*3660/1000*4000mm
Transport Package
Seaworthy
Specification
25/30/38/50/65mm
Trademark
JIUBO
Origin
China
HS Code
3917290000
Production Capacity
30000m2

Product Description

Product Description

Hengshui Jiubo Molded Fiberglass Grating
Hengshui Jiubo molded fiberglass grating is manufactured by interlacing reinforcing glass fibre roving within a polyester resin, thermally cured in the mould. Gratings produced using this technique yield a product having 30-35%(by total weight) of fiberglass reinforcement. For fire retardant protection, the resins used are complete with fire retardant additive to obtain class 1 fire spread rating of 25 or less as per ASTM E-84. UV inhibitors and antioxidant are included into our recipe of gratings to achieve better UV protection.

Hengshui Jiuboo molded Fiberglass grating was developed for corrosive applications where light weight, impact resistant, corrosion resistant and slip resistant is a must. Hengshui Jiubo molded fiberglass grating is a better alternative to traditional steel grating products.

Features of Hengshui Jiubo Molded Fiberglass Grating
Chemical Resistance


With approximately 65-70% resin content, Hengshui Jiubo molded fiberglass grating offers superb chemical resistance to a variety of acids and caustics. Hengshui Jiubo is offered in an array of corrosion resistant resins designed for any environment, from light or moderately corrosive environments to extremely corrosive applications.

Light Weight
Have you ever tired to lift a panel of steel grating without a crane or lift ? Two men can easily and comfortable lift a 1220×3660mm panel of Hengshui Jiubo molded fiberglass grating. With an average weight of around 15-20 kilos per square meter, Hengshui Jiubo molded fiberglass grating is easy to carry and install. It is also easy to remove for maintenance access or cleaning underneath. Simply unscrew the clips and lift out. No special lifting equipment required!

Fire Retardancy
Hengshui Jiubo molded fiberglass gratings are designed to exhibit a minimum of a Class 1 flame spread rating when tested in accordance with ASTM E-84 flame spread rating Tunnel Test (comparable to UL 723,ANSI/NFPA No.255 and UBC No.8-1). StronGrate molded fiberglass gratings are available in a variety of resins offering an array of flame spread rating and smoke densities, from as low as 5 flame spread rating and 5 in smoke density with our molded phenolic grating product.

Non-Skid & Safety
Hengshui Jiubo is available in either a concave meniscus top or a gritted top. Each offers superior slip resistance to traditional steel grated walking surfaces.

FRP GRP Covered Gratings Platform Walkway Carwash Tree GrateLow Maintenance/Maintenance Free
With resin and pigment blended throughout Hengshui Jiubo molded fiberglass grating. the grating will never require painting. Coupled with our corrosion resistant attachment systems, Hengshui Jiubo Strong World provides maintenance-free walkway systems. You install it and forget about it!



frp grating grp grating fibergalass grating
Other Positive Features
Hengshui Jiubo molded fiberglass gratings are also:

  1. Electrically and thermally non-conductive
  2. Easy to cut and/or install
  3. Ultra-violet resistant
  4. Provided in a number of grating thicknesses and panel sizes
  5. Offers bi-directional strength characteristics
  6. Impact Resistance
FRP GRP Covered Gratings Platform Walkway Carwash Tree Grate



    Industries Using Fiberglass Grating
    Offshore & Marine Textile
    Petro-chemical & Refining Electrical & Power Generation
     Communications Computer and Hi-tech
    Water/Wastewater Recreational Water Parks & Pools
    Transportation & Transit Zoos and Aquariums
    Aerospace
    Automotive Medical
    Pulp & Paper Shipping
    Mining Many others
    Metal Plating Food & Beverage

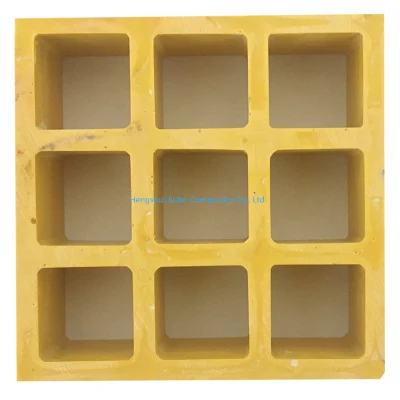

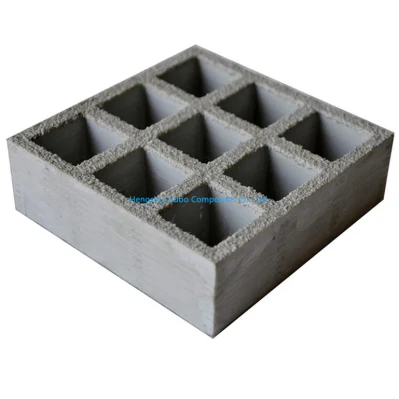

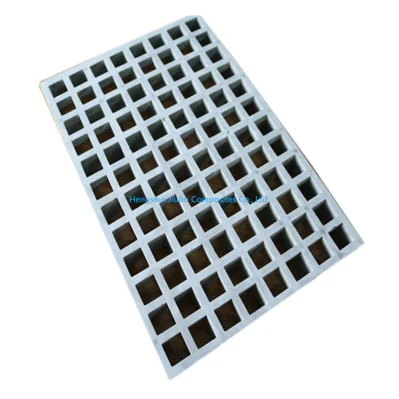

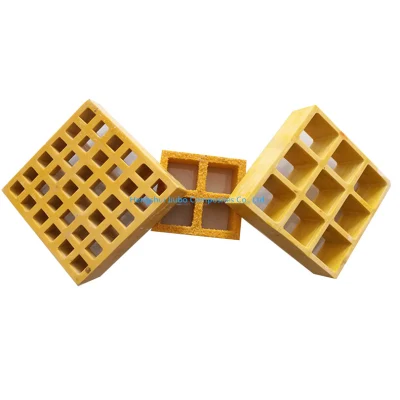

    Detailed Photos

    FRP GRP Covered Gratings Platform Walkway Carwash Tree GrateFRP GRP Covered Gratings Platform Walkway Carwash Tree GrateFRP GRP Covered Gratings Platform Walkway Carwash Tree GrateFRP GRP Covered Gratings Platform Walkway Carwash Tree GrateFRP GRP Covered Gratings Platform Walkway Carwash Tree GrateFRP GRP Covered Gratings Platform Walkway Carwash Tree GrateFRP GRP Covered Gratings Platform Walkway Carwash Tree GrateFRP GRP Covered Gratings Platform Walkway Carwash Tree GrateFRP GRP Covered Gratings Platform Walkway Carwash Tree Grate

    Product Parameters
    Specification list of FRP grating
    No Mesh size (mm) Overall dimension (mm)
    1 38x38 1220x4000x13
    2 38x38 1220x4000x15
    3 38x38 1524x4000x25
    4 38x38 1524x4000x30
    5 38x38 1524x4000x38
    6 38x38 1524x4000x40
    7 38x38 HD 1220x4000x50
    8 38x38 HD 1220x4000x60
    9 38x38 HD 1220x4000x65
    10 40x40 1527x4047x25
    11 40x40 1247x4047x30
    12 40x40 1527x4047x40
    13 50x50 1220x4000x13
    14 50x50 1220x4000x15
    15 50x50 1950x1900x15
    16 50x50 1524x4000x25
    17 50x50 1524x4000x50
    18 19x19/38x38 1524x4000x25
    19 19x19/38x38 1524x3660x30
    20 19x19/38x38 1220x4000x38
    21 20x20/40x40 1247x4047x13
    22 20x20/40x40 1247x4047x14
    23 20x20/40x40 1527x4047x22
    24 20x20/40x40 1527x4047x30
    25 20x20/40x40 1527x4047x40
    26 25x25/50x50 1524x4000x50
    27 26x26/52x52 1204x4200x38
    28 13x13/40x40 1527x4047x22
    29 13x13/40x40 1527x4047x30
    30 13x13/40x40 1527x4047x40
    31 100Wx25L 1007x3007x25
    32 100Wx25L 1007x3007x30
    33 101.6Wx25.4L 1220x4000x30
    34 101.6Wx25.4L 1605x4000x30
    35 100Lx25W MP 1220x3660x38
    36 100Lx38W MP 1220x3660x50
    37 152Wx38L 1220x3660x38
    38 152Lx25W 1220x3660x38
    39 152Lx38W 1220x3660x38
    40 152Lx25W ST 575x3660x38
    Certifications

    FRP GRP Covered Gratings Platform Walkway Carwash Tree Grate

    Company Profile

    FRP GRP Covered Gratings Platform Walkway Carwash Tree GrateFRP GRP Covered Gratings Platform Walkway Carwash Tree Grate
    Hengshui Jiubo Composites Co., Ltd. is professional manufacturer of FRP Pipe, FRP storage tank, FRP cooling tower, FRP molded products, FRP pultruded products and relative FRP production machines & technology. Through the continuous development and introduction of professional technology, our company rely on advanced technology, exquisite craftsmanship, reliable quality and perfect service, passed ISO9001, ISO14001, OHSAS18001 certification, our annual sales of glass fiber reinforced plastic series products achieved 20,000 tons, products have been sold to all over the world, USA, Brazil, Japan, Germany, India, Malaysia, Iran, Egypt etc, and won the support and trust from new & old customers.



    Main products:
    FRP tank and chemical equipment
    High, middle, low pressure FRP pipe
    FRP small-scaled wastewater treatment tank
    FRP cooling tower,frp grating,tube,bar,reabr
    FRP pultrusion, molded series products
    FRP polymer electrolytic cells
    S/F, F/F double-wall oil fuel storage tank
    Whole set of computer control filament winding machine
    Whole set of FRP pultrusion machine
    Whole set of FRP molded hydraulic press
    Whole set of FRP grating molded machine
    FRP GRP Covered Gratings Platform Walkway Carwash Tree Grate

    Hengshui Jiubo Composites Co., Ltd. not only have manufacture ability, but also has design ability of material, structure and products, our company can provide customers with technical advice, supply of goods and material, transportation, installation supervision etc service.

    Customer Photos

    FRP GRP Covered Gratings Platform Walkway Carwash Tree GrateFRP GRP Covered Gratings Platform Walkway Carwash Tree GrateFRP GRP Covered Gratings Platform Walkway Carwash Tree GrateFRP GRP Covered Gratings Platform Walkway Carwash Tree GrateFRP GRP Covered Gratings Platform Walkway Carwash Tree Grate
