Basic Info.
Model NO.
HX61063
Coating
Talcum powder
Machining Tolerance
+/-0.01mm
Standard
ASME
Certification
CE, RoHS, ISO 9001:2000, ISO 9001:2008
Transport Package
Wooden Case
Specification
OD194, OD197, OD200, OD216mm, OD300mm or according
Trademark
HEXIN
Origin
China
HS Code
85149090
Production Capacity
5000pieces/Year
Product Description
Gas Fired Radiant Heater Burner Tube by Centrifugal Casting with nickel alloy
Centrifugally spun cast radiant tubes are one of the regular casting tubes fabrication of HEXIN.
The main products of Qingdao Hexin Machinery Co., Ltd. include:
U radiant tubes, W radiant tubes, Straight radiant tubes, Electricity radiant tubes, Special radiant tubes. Ethylene cracking furnace, furnace tube, reformer furnace tube, and so on.
Qingdao Hexin Machinery Co., Ltd. offer custom engineering and production: Bung assemblies,flanges,reducers, return bends, centrifugal cast tubes, and tube hangers, assembled or individual parts.

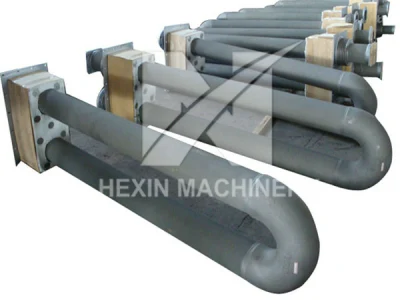

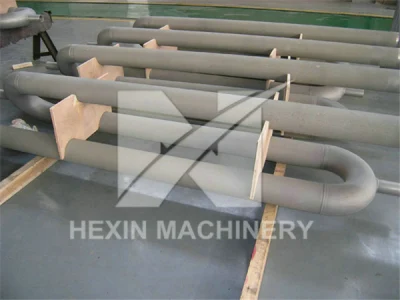

Straight pipe of U-type radiant tube is made of high temperature resistant centrifugal casting pits pipe, bend adopts precision casting technology, U-type radiant tube used for even back, galvanizing line horizontal annealing furnace and silicon steel heat treatment furnace, under the protective atmosphere of nitrogen and hydrogen, radiant tube by natural gas or coke oven gas combustion heat energy, through the outside of the tube radiation radiation heat transfer, uniform operation of the strip from room temperature quickly and evenly heated to about 900 degrees, the strip annealing.
About us
Qingdao Hexin Machinery Co., Ltd. is professional for manufacturing, sale and research of high temperature alloy centrifugal cast tube, Heat resistant steel precision castings and sand mold casting.
The main products are: Ethylene cracking furnace furnace tube, reformer furnace tube, all kinds of casting alloy elbow, casting tube sheet, hook, hanger, bracket and other heat resistant casting products. Furnace rollers, radiant tubes, sink roll, stabilizing roll, support arm and sleeve and other heat resistant alloy used for continuous galvanizing line(continuous annealing line), all kinds of heat treatment fixtures used for heating processing equipment, like tray, basket, fan and so on. Widely used for famous brand heat treatment equipment, such as IPSEN, AICHELIN, FONTON, etc.
We committed to the strict quality control and strictly implement ISO9000 series quality management system, Ensure the castings in each process of each station "zero defect" production, Quality has won the acceptance of customers at home and abroad.
Welcome to view our website: hexinmachineryqd.en.made-in-china.com
Centrifugally spun cast radiant tubes are one of the regular casting tubes fabrication of HEXIN.
The main products of Qingdao Hexin Machinery Co., Ltd. include:
U radiant tubes, W radiant tubes, Straight radiant tubes, Electricity radiant tubes, Special radiant tubes. Ethylene cracking furnace, furnace tube, reformer furnace tube, and so on.
Qingdao Hexin Machinery Co., Ltd. offer custom engineering and production: Bung assemblies,flanges,reducers, return bends, centrifugal cast tubes, and tube hangers, assembled or individual parts.
Straight pipe of U-type radiant tube is made of high temperature resistant centrifugal casting pits pipe, bend adopts precision casting technology, U-type radiant tube used for even back, galvanizing line horizontal annealing furnace and silicon steel heat treatment furnace, under the protective atmosphere of nitrogen and hydrogen, radiant tube by natural gas or coke oven gas combustion heat energy, through the outside of the tube radiation radiation heat transfer, uniform operation of the strip from room temperature quickly and evenly heated to about 900 degrees, the strip annealing.
| Item | gas fired radiant heater tube assembly with precision cast return bends insulation refractory materials 2.4879 More2 HX61063 |
| Process | Centrifugal/spun casting method for tube sections, investment casting for the elbows or bends ,hangers, welding and machining. |
| Shapes | U-type, W-Type, 0-Type, P-type, L-Type,S-Type, Straight-type, Electric radiant tubes. |
| Material | High Nickel and high Chrome heat resistant alloys, Cobalt base alloys, like. HU,HT,HK,HP,HW,24/24NbTiZr,50Cr/50Ni(2.4813),1.4865,1.4849,1.4848,1.4410,1.4059, 1.4841, 1.4845,1.4852, 2.4879 or as per customer's requirements |
| Application | The radiant tubes are working at high temperature environment on average: 800-1200ºC, most of them are used for indirect heating to furnace like CAL(continuous annealing line) CGL,(Conginious galvanizing line). |
| Specifications | Outer diameter: 55mm-580mm Thickness: 5mm,6mm,7mm or customized Length: as per your request |
| Test | Chemical analysis by spectrometer for each heat,eddy current test,pressure test ,thickness test , PT 100%(liquid penetrant test),VI(visual inspect)100%,dimensional check. |
| Products | U radiant tubes W radiant tubes Straight radiant tubes Electricity radiant tubes Special radiant tubes |
