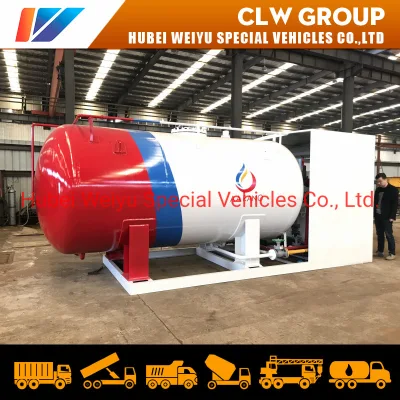

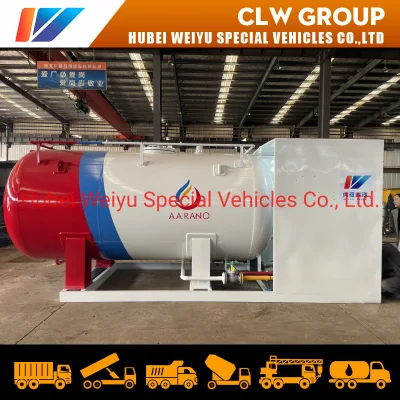

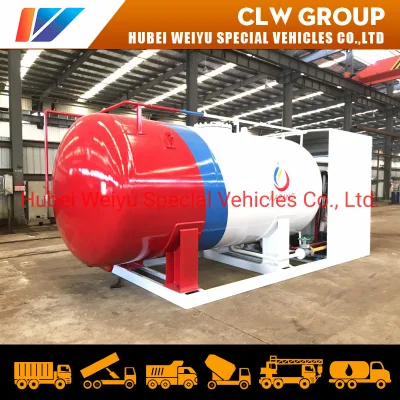

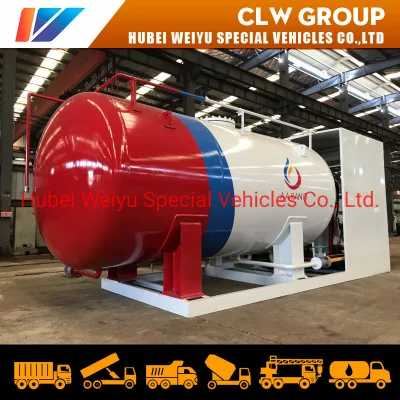

10000Liters 5Tons 5MT 5 TONS LPG skid mounted Station AUTO Gas filling plant LPG skid station for Nigeria
Product Description
lpg refilling plant (also called gas refilling plant,cylinder refilling plant,lpg refilling plant,cylinder refilling station,lpg skid station,skid lpg station,propane skid station,propane bottling plant) is a completed mini lpg station composed with lpg tank,lpg pump and motor,cylinder weighting and filling machine,valves and pipeline.Propane refilling station is used to refill cylinders,suitable for limited land space.Usually 5tons and 10tons propane refilling station will be located next to a fuel refilling station and offer cylinder bottling service.
Feature
1. lpg refilling plant for cooking gas refilling in home use cylinder in different size.
2. One Propane refilling plant with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of Propane refilling plant is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of Propane refilling plant: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system

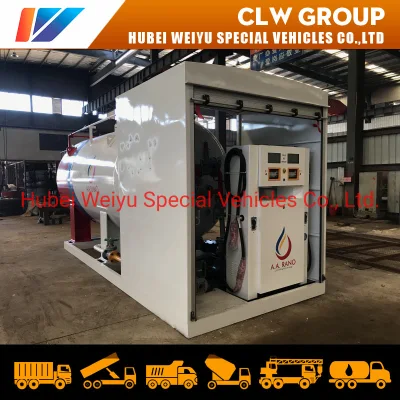

8. Other Equipment: Sunshade for filling area, Leakage Detector,ex-plosive lamp
Technical Specifications for 10000Liters 5Tons 5MT 5 TONS LPG skid mounted Station AUTO Gas filling plant
LPG skid station for Nigeria
| 10 CBM (5 Tons) LPG TANKER DIMENSIONS | |
| Volume of Tank | 10 CBM |
| Filling Weight | 5 000 kg |
| Tank Weight | 5050 kg |
| Thickness of Shell (mm) | 12 mm |
| Thickness of Endplate (mm) | 12 mm |
| Tank Diameter (mm) | 2100 mm |
| External Dimensions (mm) (length x width x height) | 6154*2124*2714 mm |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas ( Propane) |
| Design Pressure | 1.77 MPa |
| Corrosion Allowance | 1 mm |
| Medium Density | 420-590 kg/ cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |
| Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |
| 10 cbm LPG station Part list | ||
| Item | Model Number | Quantity |
| LPG Tanker | 10 cbm (5 tons) | 1 piece |
| LPG Dispenser | Double nozzles type | 1 |
| Control panel | CLW Standard control panel for the LPG | 1 Set |
| Electrical system | CLW standard electrical system | 1 set |
| Connecting and filling system | Unloading or loading two direction operation for the LPG tank. | 1 set |
| LPG Filling Pump(China brand) | 2" inlet & 2" outlet | 1 Piece |
| China Motor | 380V with 220V adapter | 1 Piece |
| Cut-off Valve | J41N-40 DN50 | 25 Pieces |
| J41N-40 DN15 | 10 Pieces | |
| Safety Valve | A42F-25 DN50 | 1 Piece |
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
| Ball floating level gauge | UQZ-2.5P | 1 Piece |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
| Flange | 2.5MPaDN15 | 20 Pieces |
