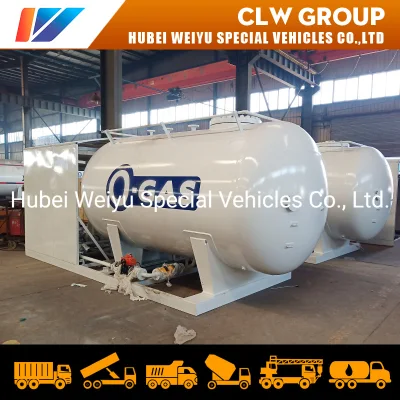

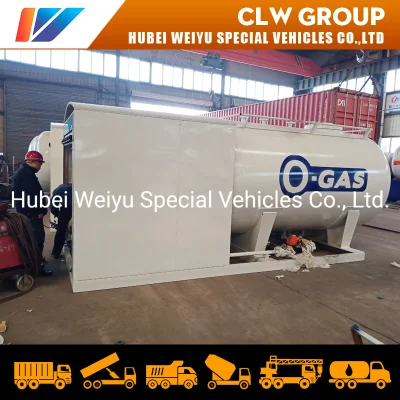

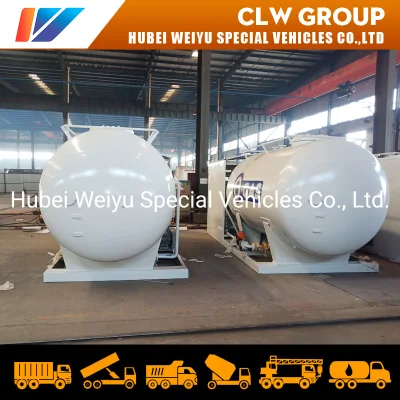

5 Metric Tons 10000L 5 Tons Skid Mounted Station LPG Gas Cylinder Filling Plant for OVH
Product Description
1. LPG Gas Station is used for refilling in home use cylinder in different size.
2. One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump

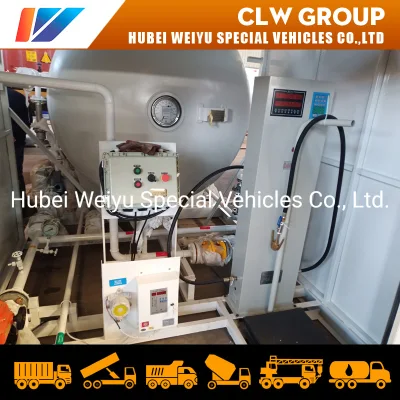

3. Digital Filling Scale or automated filling dispenser(single nozzle or double nozzle) with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of Mobile Gas Station is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of Mobile Gas Station : ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline of Mobile Gas Station : 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole Mobile Gas Station system
8. Other Equipment of Mobile Gas Station : Sunshade for filling area, Leakage Detector,ex-proof lamp,water sprinkler system
Technical Specifications of LPG gas station
| Specification of 5tons 10000L Mobile Gas Station | |
| Volume of Tank | 10CBM(10,000liters) 5tons |
| Filling weight(Kg) | 5000 |
| Thickness of Shell (mm) | 10 mm |
| Thickness of Endplate (mm) | 10 mm |
| Tank Diameter (mm) | 1600 mm |
| Tank Dimensions (mm) (length x width x height) | 5260X1620X2210mm |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas ( Propane) |
| Design Pressure | 1.71 MPa |
| Corrosion Allowance | 1 mm |
| Medium Density | 500-590 kg/ cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |
| Specification of LPG Pump and Motor | |
| Item | Specification |
| Specification of the Motor | |
| Model | Chinese famous brand |
| Revolving speed | 1470 r/min |
| Power | 5.5 kw |
| Voltage | 380 V |
| Protection grade | Anti explosive |
| Specification of the hydrocarbon Pump | |
| Model | YQB15-5 |
| Medium | Liquid petroleum gas |
| Speed | 15 m3/h |
| Input and Output Diameter | 50 mm |
| Working pressure | 2.0 Mpa |
| Working temperature | -40ºC- 50ºC |
| Material | carbon steel |

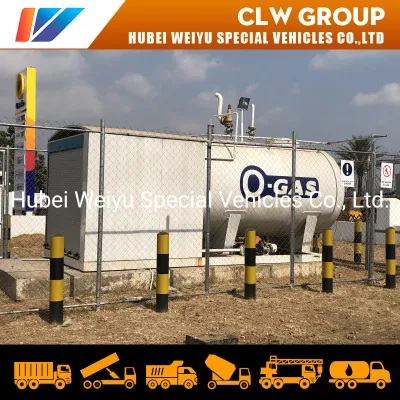

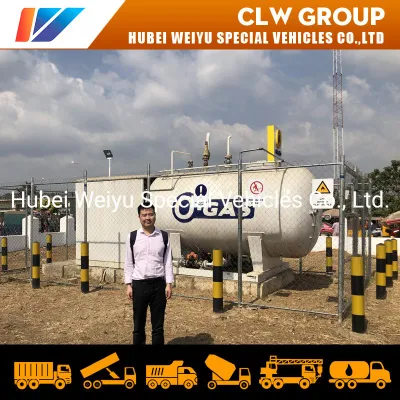

Mobile Gas Station 5tons 10000L for OVH in operation(real picture by our staff,not stolen from internet)
Successful Cases of Mobile Gas Station
Except for Mobile Gas Station ,we can also supply package installation solution for 20tons,25tons,30tons,40tons,50tons and 60tons stationary gas station as follows,
