Basic Info.
Model NO.
DK-GN50
Regeneration Principle
Pulse Desulfurization
Transport Package
Seaworthy Packing
Specification
1100*400*1810 mm
Trademark
DK
Origin
China
HS Code
9030891000
Production Capacity
10000 Pieces/Year
Product Description
Description:
Storage Batteries Comprehensive Testing Regeneration System is the large-scale professional battery reconditioning equipment that is suitable for testing and reconditioning the lead-acid batteries. It is integrated with charge and discharge testing, pulse desulfurization, high-frequency activation, constant current overcharge repair, capacity grading, so on. It can repair the common issues of lead-acid batteries such as water loss, sulfurization, and slight voltage imbalance, etc. It is especially suitable for the maintenance and reconditioning of all kinds of lead-acid batteries, which has the obvious effect on prolonging the battery life and widely used in battery after-sales maintenance service, battery recycling industry, etc.
Applications:
Battery after-sales maintenance service, e-waste recycling industries, etc.
Applicable Batteries:
6V/8V/12V/16V Lead-acid batteries.
The main issue of battery vulcanization failure:
- The voltage rises quickly when charging, and it turns green in 2-3 hours or less.
- When fully charged, the voltage is higher than 13.4V after standing for a long time (take 12V battery as an example)
- With your ear close to the battery, you can hear the sound of "squeak".
- The battery generates heat and the temperature rises quickly.
- It's full as soon as it is charged, and it's gone as soon as it runs.
The main causes of battery vulcanization failure:
- Regularly insufficient charging.
- Not charging in time after discharging.
- Unplug the power supply when it turns green during charging, without sufficient floating charge.
- Long-term over-discharging.
- Self-discharge of the battery causes the deep discharge of a small current.
- New batteries' long-term storage without regular charge-discharge maintenance causes battery self-discharge.
- Lay aside discharged or half discharged batteries too long.
- Electrolyte acidity is not high, purity is not pure.
Basic Function:
- Charge
- Discharge
- Auto-cycle charge and discharge
- Water-replenishing maintenance charge
- Pulse repair
- Constant current overcharge repair
- Activation repair
Characteristics:
- Independent modular design, easy maintenance, and the modules do not affect each other. Even if the individual modules fail, it will not affect the normal use of other modules.
- The circuit is connected by the connectors for convenient replacement.
- With over-current and over-voltage protection.
- Polar protection, anti-reverse connection
- Built-in fan to help the heat dissipation and improve the stability
- Capacity test: Suitable for 6V,12V,16V, 18V lead-acid battery, It integrates charge, discharge function, discharge current 0.5-10A is adjustable, the charge current 0.5-6A is adjustable, accurately detect the battery capacity(it can be discharged in parallel by multiple channels to increase discharge test current and achieve the purpose of a higher current discharge).
- Maintenance: Adopting the technology of high-frequency pulse desulfurization, it has a good non-destructive repair effect on the sulfated batteries. The current is adjustable during operation to accommodate the different specification batteries.
- Activation repair: Special strengthening treatment of batteries with pulse large current(Max. peak up to 200A), which has an obvious effect on activating badly sulfated batteries(can't be charged and discharged).
Technical Specification
| Model No.: | DK-GN50 |
| Total Channel Number: | 50 Channels |
| Pulse Repair Channels: | 24 Channel |
| Capacity Test Channels: | 24 Channels |
| HF Activating Repair Channels: | 2 Channels |
| Power Supply: | AC 220V±10% 50 Hz |
| Power: | No-load 620 W, Full-loading 7 KW |
| Power Factor: | 0.85 |
| Pulse Repair | |
| Waveform: | 8330 Hz Square wave |
| Pulse Edge: | ≤20ns |
| Duty Ratio: | Adjustable |
| Max. Output Average Current: | ≥0.8A |
| Charge-DischargeTesting | |
| Max. Discharge Current: | 20A(0.5-20A) adjustable |
| Max. Charge Current: | 10A (0.5-10A) adjustable |
| Min. discharge final voltage: | Can be adjusted to 2V |
| Max. charge voltage: | Can be adjusted to 23V |
| HF Activating Repair Channels | |
| Pulse Frequency: | 15 kHz |
| Max. Peak Current: | 200A |
| Average Value of Output Current: | 0-10A Constant current adjustable |
| Max. Average Current: | ≥10A |
Functions & Illustrations:

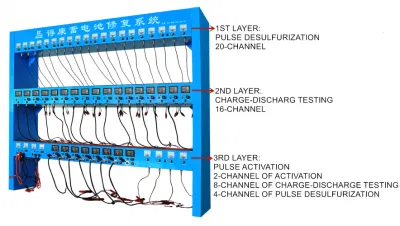

The Panel of Pulse Regeneration
The high-frequency pulse sulfur removal technology has a good and non-destructive repair effect on the battery with negative plate sulphurization.

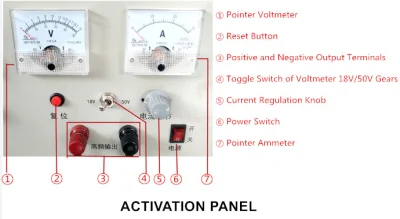

The Panel of High-Frequency Activation
Adjustable pulse high current (peak up to 200A) carries out special activation and strengthening treatment for the battery, which has the effect of greatly increasing the capacity of the battery with the softened positive plate.
The Panel of Charge-Discharge Testing.
Precision capacity measuring, charge and discharge performance test, cycle charge and discharge maintenance, constant current overcharge reconditioning, etc can be performed on 6V, 8V, 12V, 16V, 18V batteries.
Packing Information
Produce Size: 216*40*181 cm(L*W*H)
Pcs/Ctn: 1 set packed in 4 cartons
Package Value: 1.05 m3
G.W.: 185 kgs
N.W.: 165 kgs
Produce Size: 216*40*181 cm(L*W*H)
Pcs/Ctn: 1 set packed in 4 cartons
Package Value: 1.05 m3
G.W.: 185 kgs
N.W.: 165 kgs
Application Cases:
