Basic Info.
Model NO.
ES2604S, ES3004S
Emission Standard
Euro III
Fuel
Gas / Diesel
Service Life
20 Years
Size
Large
Color
Orange
Condition
New
Engine Power(HP)
260-300
Driven Model
4WD
Overall Dimension (L"W*H)mm
5550X3600X3120 / 5755X3700X3200
Wheel Base (mm)
2830 / 3010
Front/Rear Wheel (mm)
2050 / 2450mm, 1900 / 2550mm
Weight (Kg)
8360kg, 9340kg
Emission
China III
Engine Type
Water-Cooled, Inline,Four-Stroke,Direct Injection
Rated Speed(R/Min)
2200
Air Intake Type
Turbo
Air Filter Type
Dry, Dry+Wet
Shift Method
Synchronizer
Gears Shift
16f+16r, 18f+6r / Power Shift
Clutch
Wet Type, Dry Type Main Clutch, Wet Type Auxiliary
Hydraulic Output Valve
4 Groups, 8 Valves Total
Transport Package
SKD/CBU
Specification
5550x3600x3120
Trademark
EUROSTAR OEM
Origin
Weifang, China
HS Code
87019011
Production Capacity
10, 000 Units Per Year
Product Description
S Series 260-300HP Tractors Farm Tractors Wheel Tractor 4WD China Four Wheel Drive High-Power Diesel Engine Tractor for Farm Agricultural Machinery Manufacturer
S series tractor product description
S series tractor is strong power and advanced structure. S series tractor is high-power tractors produced by our company. They are the main models of large-scale agricultural efficient production. With powerful engines and strong chassis, they can complete various agricultural production tasks perfectly with a variety of agricultural machines and tools.The utility model has the advantages of compact structure, convenient operation, flexible steering, large traction, wide use, convenient maintenance, etc. Strong power, low fuel consumption, comfortable driving, high efficiency, comprehensive upgrading of key components, more suitable for deep tillage operation requirements. He can adapt to various complex ground conditions.
Main sales territory: : regions Russia, Ukraine, South America, Africa, southeast Asia and Australia..
Matching machines and tools: farmland cultivating machines and tools like front loader, backhoe, trailer, lawn mower,baler, Disc plough, disc rake, rotary tiller, spraying machine and rotary cultivator.
S series tractor product selling points
1) Strong power and advanced structure
2) Equipped with Shangchai high-pressure common rail, four-valve and Eur III engines, it has strong power and lower fuel consumption.
3) Using external rotary filter + oil bath + built-in dry three-stage filter, purification upgrade, longer service life of the whole machine.
4) 18F+6R gearbox with reasonable gear distribution, strong agronomic adaptability and higher working efficiency.
5) The operating mechanism of PTO, four-wheel drive, and differential lock adopts wet clutch and one-key electro-hydraulic operation, which realizes separation and combination without cutting off the power, with low operating force, safe and reliable.
6) Imported Bos ch electronic control lifting system, the lifting operation is more efficient and light.
7) Optimized and upgraded, strong reliability
8) The gearbox adopts synchronizer and wet clutch for shifting, smooth operation, low noise and improved reliability.
9) Equipped with a 17-inch reinforced, imported friction plate clutch, which has large transmission torque and higher reliability.
10) Italy Corolla anti-skid front drive axle, with anti-skid, anti-sagging functions, large driving force and high reliability.
11) Using British MAXAM radial tires, with high working efficiency and low fuel consumption.
12) Equipped with Class III three-point suspension hooking device, which can match a variety of agricultural machinery and tools, and has high operating efficiency.
13) Enhanced two-speed power output, wide range of matching machines and high reliability.
14) Independently control the pneumatic clutch, which is easy to operate and reliable in performance.
15) Ergonomics, comfortable driving
16) Excellent performance of the whole machine, hydraulic steering, adjustable seat and steering wheel, the operation is lighter and labor-saving.
17) The brand-new hood appearance design is beautiful and generous, and the field of vision is wider.
18) The fully enclosed new cab can be equipped with air conditioning, heater, fan, audio, rear view system, etc., making driving more comfortable.
S series tractor product technical parameters
| S Series tractor | |||
| Model | ES2604S | ES3004S | |
| Tractor Body | Horse Power(HP) | 260 | 300 |
| Wheel Drive | 4x4 | 4x4 | |
| Front Axle | Carraro | Carraro | |
| Dimension (L*W*H)mm | 5550x3600x3120 | 5755x3700x3200 | |
| Wheel Base(mm) | 2830 | 3010 | |
| Front Wheel Base(mm) | 2050 | 1900 | |
| Rear Wheel Base(mm) | 2450 | 2550 | |
| Ground Clearance (mm) | 460 | 535 | |
| Net Weight(kg) | 8360 | 9340 | |
| Ballast (kg) | 1100 | 1100 | |
| A/C Cabin | Have | Have | |
| Engine | Engine Brand | Shangchai | Shangchai |
| Engine Model | SC7H260G3 | SC9DK300G3 | |
| Emission | China III | China III | |
| Type | Water-cooled, Inline, Four-stroke, Direct injection | Water-cooled, Inline, Four-stroke, Direct injection | |
| Cylinder Number | 6 | 6 | |
| Rated Power (kw) | 191.5 | 221 | |
| Rated Speed(r/min) | 2200 | 2200 | |
| Air Intake Type | Turbo | Turbo | |
| Air Filter Type | Dry | Dry + Wet | |
| Steer, Transmission, Drive | Steer | Hydraulic Power | Hydraulic Power |
| Gear Shift | 16F+16R | 18F+6R, Power Shift | |
| Transmission | 4X4X(1+1) | (3+1)x3x2 | |
| Clutch | Wet type | Dry type main clutch, Wet type auxiliary clutch | |
| Tire | 420/85R28/520/85R38 double row rear tire | 420/85R30/520/85R42 double row rear tire | |
| Work Device | Three Point Hitch Position | Back | Back |
| Hitch Type | III | III | |
| Hitch Lift Device | 2 Cylinders Hydraulic Power Lift | 2 Cylinders Hydraulic Power Lift | |
| Suspension Adjust Type | Power Adjustment, Position Adjustment, Float Control | Power Adjustment, Position Adjustment, Float Control | |
| Hydraulic Output Valve | 4 Groups, 8 Valves Total | 4 Groups, 8 Valves Total | |
| Hydraulic Electric Control System | Have | Have | |
| PTO Splines | 8 | 20 splines, 45 mm | |
| PTO Speed(r/min) | 540/1000 | 540/1000 | |
| Traction Power(KN) | ≥ 72.2 | ≥ 73 | |
| Lift Power(KN) | ≥ 46 | ≥ 53 | |
| Rear View System | Camera + Display | Camera + Display | |
| Traction | U Type+Swing Tow Bar | U Type+Swing Tow Bar | |

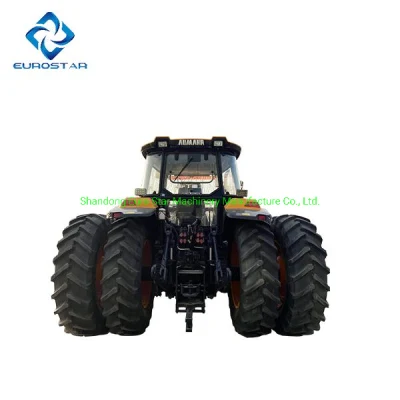

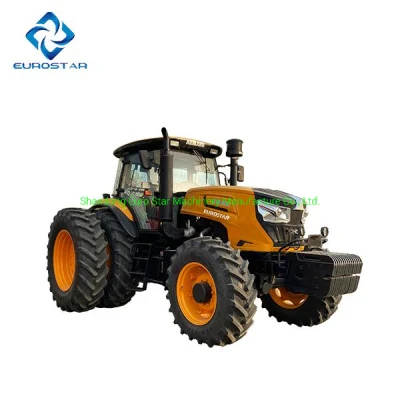

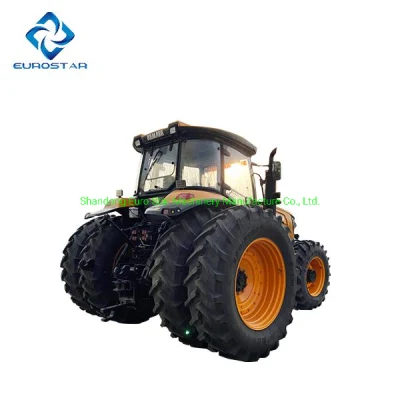

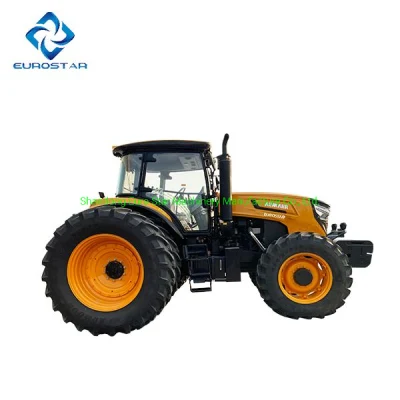

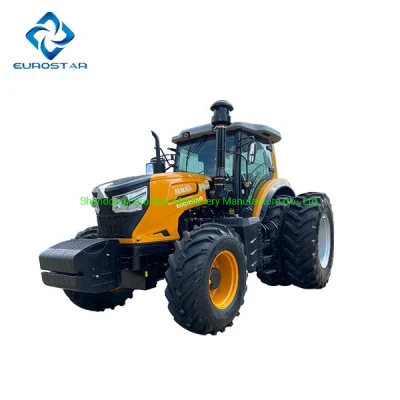

S series tractor details show
Full range of tractor products display
Tractor SKD packaging and CBU packaging display
Tractor container display
Tractor supporting farm implements display
Factory introductionShandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization and industrial production automation. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In the future, the company will adhere to the principles of stable operation, continuous innovation, and open cooperation, create more high-end machinery and equipment on the basis of existing products, and contribute to the global modern agricultural mechanization and industrial production automation.
Tractor production workshop display
Service One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1) The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2) Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3) One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
