Basic Info.
Model NO.
Shift gas h2s removal catalyst
Effect
H2s Removal From Gases
Source

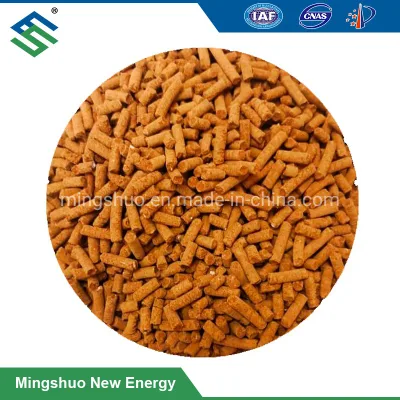

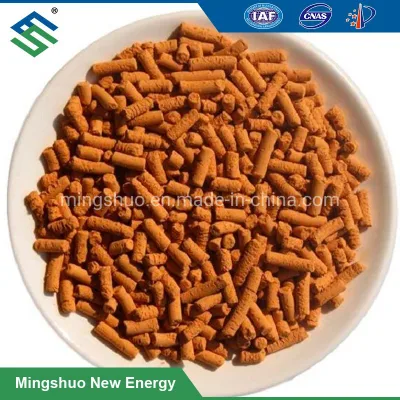

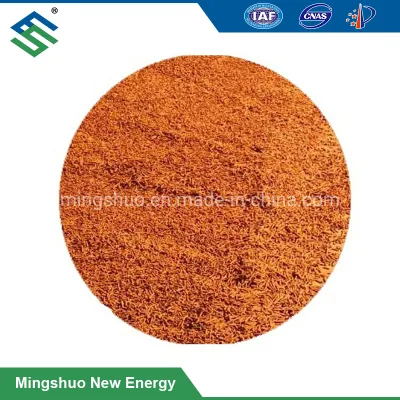

Particle
Application
H2s Removal
Disposal
Tclp Passed, Depends on Local Regulations
Gas Application
Biogas, Oilfield Associated Gas, Landfill Gas, etc
Active Component
Ferric/Iron Oxide/ Hydroxide
Vessel
Fixed Bed

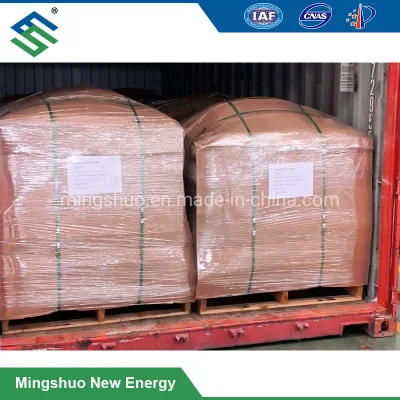

Transport Package
Standard Export Packing
Specification
800kgs/bag or 40kgs/bag
Trademark
Mingshuo
Origin
China
HS Code
28211000
Production Capacity
10, 000tons/Year
Product Description
Shift gas h2s removal catalyst for natural gas desulfurization
Desulfurization is a chemical process for the removal of sulfur from a material. This involves either the removal of sulfur from a molecule (e.g. A=S → A:) or the removal of sulfur compounds from a mixture such as biogas, methane and oil refinery streams. These processes are of great industrial and environmental importance as they provide the bulk of sulfur used in industry, sulfur-free compounds that could otherwise not be used in a great number of catalytic processes, and also reduce the release of harmful sulfur compounds into the environment, particularly sulfur dioxide (SO2) which leads to acid rain, and hydrogen sulfide (H2S) which leads to poison, even death.
Dry desulfurization system is kind of standard equipment we designed and produced. According to the content of H2S in gas, the actual content of gas, the life cycle of absorbent, and other relevant data, we will specially design the system structure for customers. If you have fixed the dimensions and internal structure, we're also able to manufacture it according to your design drawings.
For real-time monitoring the reaction speed of sulfide and the oxygen in air in the process of regeneration, we added temperature monitoring equipment, this can avoid accident fires in the process of regeneration.(When the content of the entered air gets too large, the exothermic reaction will be violent, and the temperature will be above the sulfur's ignition point, which will lead to accidental fires.) Or you can simply get the absorbent outside the tank, and let it regenerate in the air. Working principles
Fe2O3 · H2O+3H2S=Fe2S3 · H2O+3H2O
2Fe2S3 · H2O+3O2 = 2Fe2O3 · H2O+6S
Main physical and chemical indicators
| Granularity (mm) | Breakthrough sulfur capacity (%) | Intensity (N/cm) | Bulk density (g/L) | Specific surface area (m2/g) | Pore rate (%) |
| φ3-5, L3-15 | 12-35 | ≥50 | 0.65-0.85 | 70~90 | 50 |
Operation conditions and notes
1) Airspeed: 200-1500h-1
2) Temperature: 10-80 centigrade, up to 260 centigrade for MT-3
3) Pressure: Ordinary pressure to 8MPa
4) Humidity: When remove H2S, humidity is as bigger as better, the best is near to saturated steam, but strictly prohibit to bring water to the bed.
5) Operating: It should be replaced by feed gas before operating, and improve the pressure gradually, then move to the normal production.
Application: H2S removal from biogas, landfill gas, natural gas, shale gas, oilfield gas, associated gas etc.
Management System Certification: ISO9001:2008, ISO14001:2004, OHSAS18001:2007
Company Introduction:
Founded in 2004, Shandong Mingshuo New Energy Technology Co., Ltd. is located in Shandong Province, China. With a registered capital of CNY 88 million and an area of over 16 acres, Mingshuo is dedicated to the development, manufacturing, sales and service providing in environmental protection field.
We mainly specialize in organic waste treatment, biogas plant, desulfurization system, biogas purification, biogas utilization and organic fertilizer systems. As the production base of medium and large biogas equipments in China, our company is highly recommended by China Biogas Association, China Association of Rural Energy Industry, and China Import and Export Commodity Website. Our company has passed the quality management system ISO 9001:2015, environment management system ISO 14001:2015 and occupational health & safety management system OHSAS 18001:2007 standards, with professional environmental engineering construction qualification, safety production license in construction field, and qualifications of Class D1, D2 pressure vessel. Moreover, we have obtained more than 30 patents and participated in the formulation of the national standards for biogas desulfurization equipment.
With the unique design, professional R & D team, and pursuit of better solution, we're able to offer the most suitable and customized professional technical consulting, technical supports and after-sale services for all types of customers according to their different requirements and situations. Our products are widely used in biogas, fertilizer, coking, natural gas, city gas, food, ceramics, and other industries.
