Basic Info.
Model NO.
DZSF-725
Shaft Number
Double
Running Track
Linear Vibrating Screen
Supporting Device
Coil Spring
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
Online Supporting
Commodity
Linear Vibrating Separator for Oyster
Mesh Size

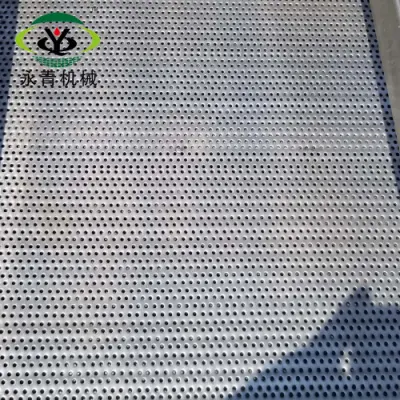

5/10/15/19/25/38mm Perforated Hole
Power
0.75kw * 2
Voltage
380V
Layer(S)
3
Certificate
Ce, ISO, SGS
Phase
3 Phase
Vibration Time
960rpm
Screening Area
700*2500mm
Capacity
1-1.5 Tons/Hour
Frequency
50/60Hz
Transport Package
2850*1100*1300
Specification
DZSF-725
Trademark
YONGQING
Origin
Henan, China
HS Code
847410000
Production Capacity
100 Sets/Month
Product Description

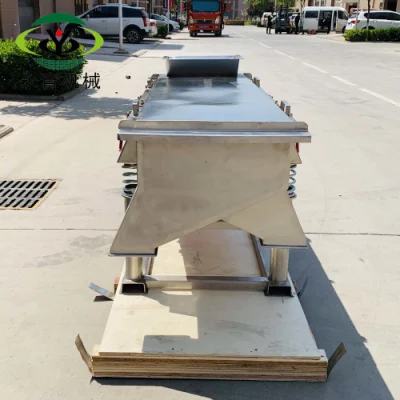

Stainless steel linear vibrating separator for oyster
I. Introduction
1. DZSF series linear vibrating screen are very useful in plastic, rubber, ceramic, food, pharmaceutical, chemical, fertilizer, glass industries.
2. Linear vibration screen can be provided with dust proof cover as required.
3. DZSF series linear vibration screen can be supplied of different sizes depending upon capacity required. They can also handle slightly wet material.Inlets,outlets and legs can be custom fit to your installation requirements.
II. Material and Layer Choice
It has 3 kinds of material and 1-5 layers for choice.
a. Full stainless steel
b. Contact part stainless steel
c. Full carbon steel
How to choose layer and material?
A: choose layer
a. Removing impurity. Generally, single layer is recommended for removing impurity.
b. Screening, filtering and grading. If the material size include 2 kinds, single layer is available; if the material size is 3 kinds, two layers are suitable; If the material size is 4 kinds, three layers are recommended. The rest can be done in the same manner. 5 layers are supported at most on a machine.
B. choose material
a. Used for mining, construction, etc industry, all carbon steel is well recommended.
b. Used for chemical, papermaking, environmental protection, etc, the contact part stainless steel well recommended.
c. Used for food, medicine, etc, all stainless steel are well recommended.
Specifications
Parameters
| Model | Layer | Screening Area(mm) | Mesh (mm) | Particle Size(mm) | Capacity (t/h) | Power (kw) | Dual Amplitude |
| DZSF-612 | 1-5 | 600*1200 | 0.074 -20 | ≤20 | ≤3 | 0.25×2 | 6-8 mm |
| DZSF-520 | 500*2000 | ≤5 | 0.37×2 | ||||
| DZSF-525 | 500*2500 | ≤8 | 0.37×2 | ||||
| DZSF-1020 | 1000*2000 | ≤12 | 0.75×2 | ||||
| DZSF-1025 | 1000*2500 | ≤16 | 0.75×2 | ||||
| DZSF-1030 | 1000*3000 | ≤20 | 1.1×2 | ||||
| DZSF-1224 | 1200*2400 | ≤23 | 1.5×2 | ||||
| DZSF-1525 | 1500*2500 | ≤28 | 1.5×2 | ||||
| DZSF-1530 | 1500*3000 | ≤32 | 2.2×2 |
Applications
Mining industry: Granulate, ore, sand, quartz sand, coal, etc.
Food industry: Starch powder, sugar powder, salt, rice flour, milk powder, soy bean milk, sauce, fruit juice, condiment, and so on.
Chemical industry: Resin powder, paint, industrial chemicals, detergent powder, cosmetic, Chinese medicine powder.
Metallurgy industry: Aluminum powder, lead powder, copper powder, alloy metal powder, electrode powder, kaolin, limestone, dolomite, alumina, calcium carbonate, quartz sand and so on.
| COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD | |
| Establishing time | 2006 |
| Company nature | China 0EM, factory. |
| Quality certificate | CCC, ISO9001-2008, CE 36-year industry experience 16-year china manufacturer 13-year Alibaba golden supplier 4 field patents |
| Main products | Vibration screen, Conveyor system, Vibration motor, Vibration feeder, lab test sieve, Vibration table, etc. |
| Exporting countries | More than 80 countries |
If you are interested in our product, please kindly provide the following information:
1. What's the materials(dry or wet)?
2. The processing capacity(kg) per hour?
3. The mesh size(mesh/mm) you need, or we can recommend.
Any questions, welcome to contact Lynn.
