Basic Info.
Model NO.
YLC-2
Application
Various Kinds of Water System
Certificate
Ce&ISO
Feature
environmental Protection
Power Supply
No Electricity
Transport Package
Plywood Case Into Container
Specification
CE, SGS
Trademark
YLD
Origin
Jiangyin, Jiangsu, China
HS Code
8421219990
Production Capacity
5000 Sets/Year
Product Description
I. Introduction

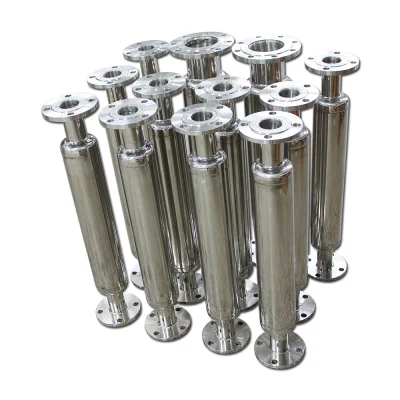

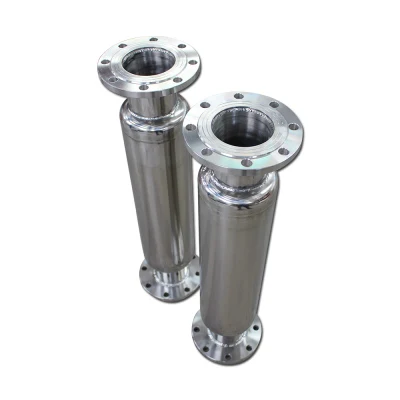

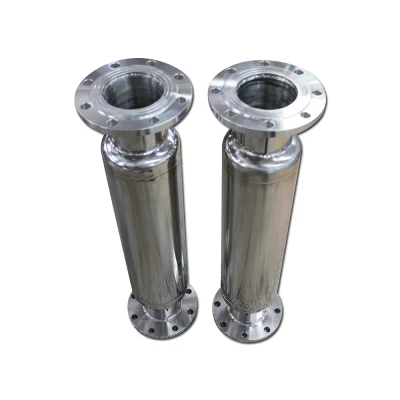

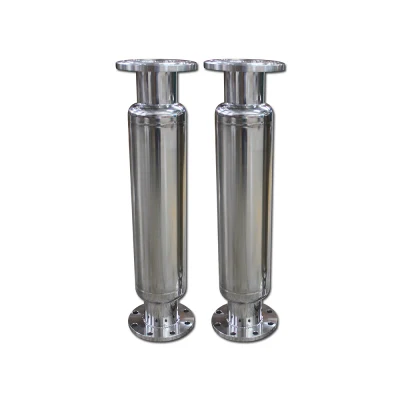

Strong magnetic water treatment equipment treats the water with magnetic field, change the water physical structure on the premise of without changing the chemical composition of water, to achieve the purposes of anti-scaling, scale removal, sterilization, algae removal, anti-corrosion and anti-rust in water. There is strong magnetic field in central part of this products, but it generates little magnetic interference on outside, the effect of water processing is obvious, which is a new generation of novel structure and optimal product for water treatment.
II. Working principle
On use of potential energy which generates from neodymium iron boron permanent magnetic material, and optimal design, forming a crest vertical center field. When water or fluid flow through the vertical magnetic field, will produce an electromotive force, The lattice refinement, The original water fouling crystal particle size from about 3.39 microns to about 0.22 microns, flow rate will be faster, The electromotive force generated greater, The effect is more ideal, To achieve the anti-scaling, scale removal purpose.
Meanwhile, water treated by magnetic field, the electrical conductivity and osmotic pressure changed and microbial cell ruptured, cells stop breeding, which achieve effect of sterilization, and algae removal.
Since the water treated by magnetic field, it will produce tiny electron flow, which change Fe2O3 · NH2O into stable Fe3O4 and generates black magnetic iron oxide which deposited onto the tube wall surface to form a film barrier layer, the oxygen in the water separated from the pipe wall, in this case, it realize the purpose of removal and prevention of rust.
III. Scope of application
Δ A variety of water system which is easy to breed bacteria, algae and scale
Δ Air conditioning, refrigeration circulating water system.
Δ A variety of heating exchange and cooling tower system.
Δ Swimming pool system.
Multiplicity of applications include: Agriculture, municipal, residential, aquaculture, environment (such as natural bodies of water including rivers & lakes), water treatment and purification, animal breeding, thermal energetics, petroleum and gas industry, chemical industry and food biotechnology
Technical parameters:
Strong magnetic water treatment equipment treats the water with magnetic field, change the water physical structure on the premise of without changing the chemical composition of water, to achieve the purposes of anti-scaling, scale removal, sterilization, algae removal, anti-corrosion and anti-rust in water. There is strong magnetic field in central part of this products, but it generates little magnetic interference on outside, the effect of water processing is obvious, which is a new generation of novel structure and optimal product for water treatment.
Tired of hard water problems?
Our magnetic water treatment systems are specifically designed to soften water by removing scale buildup in your pipes and hot water tank. You can prevent future buildup or even remove current buildup that has accumulated over the years. Purified water is healthy for humans, animals, and plants.
Neodymium magnets
The neodymium magnets used in our water treatment systems are the strongest permanent magnets available. We use two blocks that measure 2 inch by 1 inch by 0.5 inch to help purify your water. The individual pulling force of each magnet is approximately 70 pounds! What this means is that particles passing through the field have a much greater chance of avoiding pipe walls compared to systems using ceramic magnets.
II. Working principle
On use of potential energy which generates from neodymium iron boron permanent magnetic material, and optimal design, forming a crest vertical center field. When water or fluid flow through the vertical magnetic field, will produce an electromotive force, The lattice refinement, The original water fouling crystal particle size from about 3.39 microns to about 0.22 microns, flow rate will be faster, The electromotive force generated greater, The effect is more ideal, To achieve the anti-scaling, scale removal purpose.
Meanwhile, water treated by magnetic field, the electrical conductivity and osmotic pressure changed and microbial cell ruptured, cells stop breeding, which achieve effect of sterilization, and algae removal.
Since the water treated by magnetic field, it will produce tiny electron flow, which change Fe2O3 · NH2O into stable Fe3O4 and generates black magnetic iron oxide which deposited onto the tube wall surface to form a film barrier layer, the oxygen in the water separated from the pipe wall, in this case, it realize the purpose of removal and prevention of rust.
III. Scope of application
Δ A variety of water system which is easy to breed bacteria, algae and scale
Δ Air conditioning, refrigeration circulating water system.
Δ A variety of heating exchange and cooling tower system.
Δ Swimming pool system.
Multiplicity of applications include: Agriculture, municipal, residential, aquaculture, environment (such as natural bodies of water including rivers & lakes), water treatment and purification, animal breeding, thermal energetics, petroleum and gas industry, chemical industry and food biotechnology
Technical parameters:
| model | inlet and outlet | dimension(mm) | flow rate | Vertical center | Working medium | weight | |
| mm | inch | diameter*length | m 3 /h | strong magnetism (mt) | temperature ( . C) | Kg | |
| YLC-1 | 25 | 1 | 108×330 | 4.9 | 160 | 0-90 | 10 |
| YLC-1.5 | 40 | 1.5 | 108×330 | 12 | 160 | 0-90 | 20 |
| YLC-2 | 50 | 2 | 159×450 | 19 | 160 | 0-90 | 30 |
| YLC-2.5 | 65 | 2.5 | 159×450 | 28 | 160 | 0-90 | 40 |
| YLC-3 | 80 | 3 | 159×450 | 50 | 160 | 0-90 | 45 |
| YLC-4 | 100 | 4 | 219×560 | 80 | 160 | 0-90 | 50 |
| YLC-5 | 125 | 5 | 219×600 | 125 | 160 | 0-90 | 60 |
| YLC-6 | 150 | 6 | 273×740 | 180 | 160 | 0-90 | 70 |
| YLC-8 | 200 | 8 | 325×790 | 320 | 160 | 0-90 | 90 |
| YLC-10 | 250 | 10 | 377×850 | 480 | 160 | 0-90 | 110 |
| YLC-12 | 300 | 12 | 426×800 | 600 | 160 | 0-90 | 130 |
| YLC-14 | 350 | 14 | 478×950 | 750 | 160 | 0-90 | 160 |
| YLC-16 | 400 | 16 | 530×1000 | 850 | 160 | 0-90 | 210 |
| YLC-18 | 450 | 18 | 630×1050 | 950 | 160 | 0-90 | 260 |
| YLC-20 | 500 | 20 | 720×1100 | 1100 | 160 | 0-90 | 330 |
