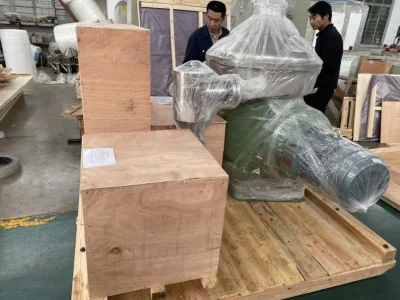

Packaging & Delivery
Product Description

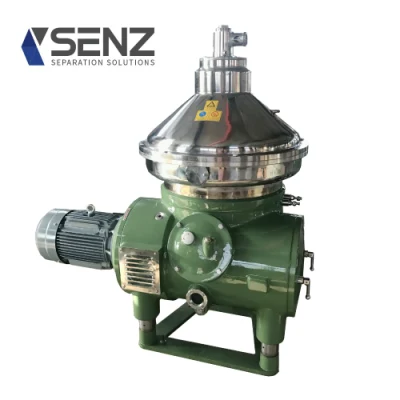

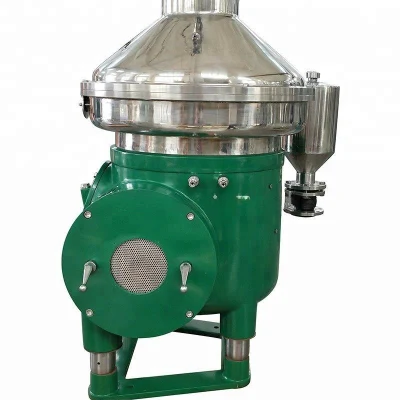

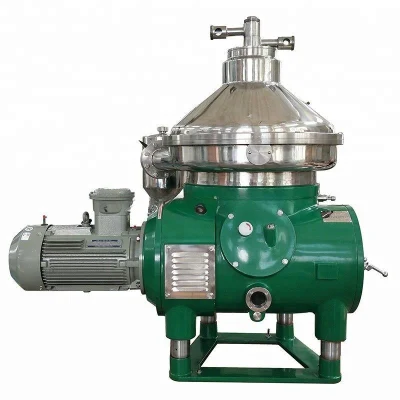

3 Phase Mechanical Conical Disc Stack Centrifuge Decanter For Separating Feedstock
Description
Model SHSYSeparator is mainly suitable for separating and extracting oil of animal and vegetable oil, especially suitable for separating feedstock containing large proportion of heavy phase, for example, fish oil. Heavy phase or light phase of higher pureness can be obtained after, separation, and solid particles can be removed from the min limit at discharge.
All the parts in contact with the feedstock are made of stainless steel which are in conformity with the food sanitation requirement.
Commonly.during the fish oil extraction system,decanter centrifuge or the 3phase decanter centrifuge will be adopted together with disc separator to get more pure fish oil and more dry fishmeal.
The equipment also is used to recovery the fish protein to get the effluent standard to protect the environment.After extraction of the fish protein water,the protein could be produced into the protein powder and add into the fishmeal to work as the foodstuff.

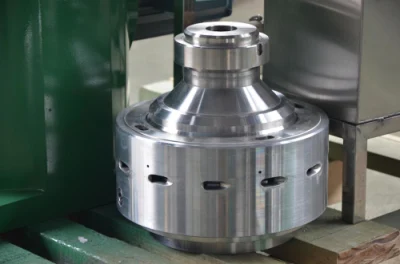

The machine consists of mechanical transmission part, drum, water equipment and frame
There are two types separation
1. Liquid-solid separation, that means separate the liquid and the insolvable solid particles
2.Liquid-liquid-solid separation, that means separate the different density and insolvable liquids
from the solid particles.
When machine runs in high speed, different density of the light phase, heavy phase, solid particles obtained the different G force for separation.
Material is feeding from the upper pipe and entering into the distributor till the disc plates, The light phase, heavy phase and impurities will obtain the different G force and form the layer under the strong centrifugal force, because of their different density.
This machine adopts the partial discharging structure which will make less wastage, all parts contact are made in Stainless Steel which meet the requirements of the food sanitation..
Separator Model list :
| DHN model is applied to dairy clarification | |||||
| Model | Capacity L/H | Inlet Pressure | Outlet pressure | Weight | Dimension mm |
| DHN360 | 2000-5000 | 0.05 Mpa | 0.1-0.35 Mpa | 1200 kg | 1530*1150*1500 |
| DHN470 | 5000-10000 | 0.05 Mpa | 0.1-0.4 Mpa | 1600 kg | 1800*1200*1750 |
| DHN550 | 10000-20000 | 0.05 Mpa | 0.1-0.4 Mpa | 2300 kg | 1950*1550*1960 |
| DHN616 | 25000-35000 | 0.1 Mpa | 0.3 Mpa | 3000 kg | 2185*1728*2082 |
| DHNZ model is applied to dairy skimming | |||||
| Model | Capacity L/H | Inlet pressure | Outlet pressure | Weight | Dimension |
| DHNZ204 | 500-1000 | 0.05 Mpa | 0.1-0.2 Mpa | 520 kg | 810*850*1350 |
| DHNZ360 | 1000-3000 | 0.05 Mpa | 0.1-0.2Mpa | 1200 kg | 1530*1150*1500 |
| DHNZ470 | 3000-7000 | 0.05 Mpa | 0.1-0.2 Mpa | 1600 kg | 1800*1200*2030 |
| DHNZ550 | 5000-10000 | 0.05 Mpa | 0.1-0.2Mpa | 2300 kg | 1950*1550*1960 |
FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.
