Basic Info.
Model NO.
VW-25/(0.2-0.3)-1.5
Refrigerant Type
Natural Gas
Transport Package
Fumigation Wooden Box, by Sea
Specification
2400x1800x1500
Origin
China
HS Code
8414804090
Production Capacity
500sets/Year
Product Description
Piston compressor is a kind of piston reciprocating motion to make gas pressurization and gas delivery compressor mainly consists of working chamber, transmission parts, body and auxiliary parts. The working chamber is directly used to compress the gas, the piston is driven by the piston rod in the cylinder for reciprocating motion, the volume of the working chamber on both sides of the piston changes in turn, the volume decreases on one side of the gas due to the pressure increase through the valve discharge, the volume increases on one side due to the reduction of air pressure through the valve to absorb the gas.
We have various of gas compressor, such as Hydrogen compressor, Nitrogen compressor, Natrual gas compressor, Biogas compressor, Ammonia compressor, LPG compressor, CNG compressor, Mix gas compressor and so on.
Advantages of Gas Compressor:
1. High quality material, Stable & Reliable operation
2. Low Maintenance cost & Low noise
3. Easy to install on site and connect with the user's pipeline system to operate
4. Alarm automatic shutdown to protection machine function
5. High pressure and flow
Lubrication includes : Oil lubrication and oil free lubrication;
Cooling method includes: Water cooling and air cooling.
Installation type includes: Stationary,Mobile and Skid Mounting.
Type includes: V-type, W-type,D-type,Z-type
Product description
Natural gas compressor
Product description
This series of compressor units are mainly used in the pressurized transmission of pipeline natural gas, oil and gas processing plants and other occasions.
Features
1. Reliable operation and easy maintenance.
2. Flexible load adjustment, wide range of air intake, and a wide range of adaptations.
3, the overall skid-mounted structure, low noise, easy to install in urban areas, saving investment.
4. Siemens PLC control system with high degree of automation and convenient remote control.
Customized is accepted , Pls provide the following information to us ,then we will do the technical proposal and best price to you.
1.Flow rate: _______Nm3/h
2.Gas Media : ______ Hydrogen or Natural Gas or Oxygen or other gas
3.Inlet pressure: ___bar(g)
4.Inlet temperature:_____ºC
5.Outlet pressure:____bar(g)
6.Outlet temperature:____ºC
7.Installation location: _____indoor or outdoor
8.Location ambient temperature: ____ºC
9.Power supply: _V/ _Hz/ _3Ph
10.Cooling method for gas: air cooling or water cooing

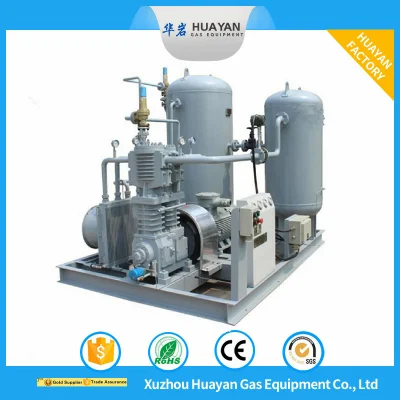

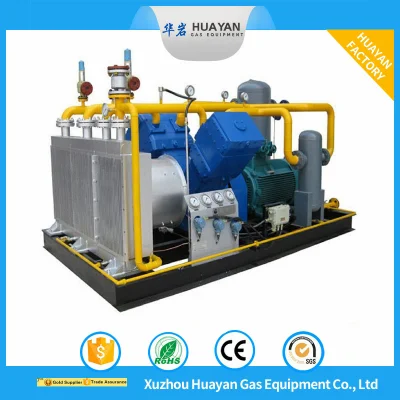

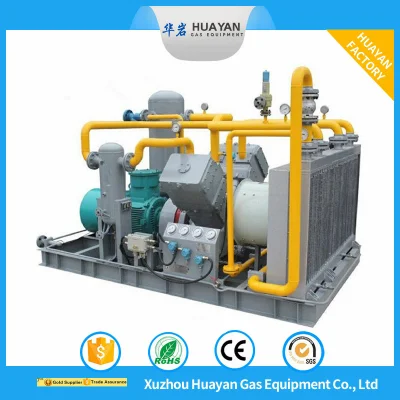

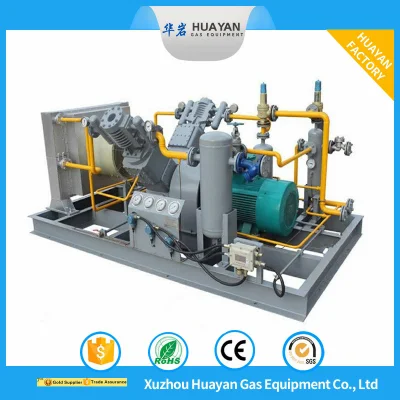

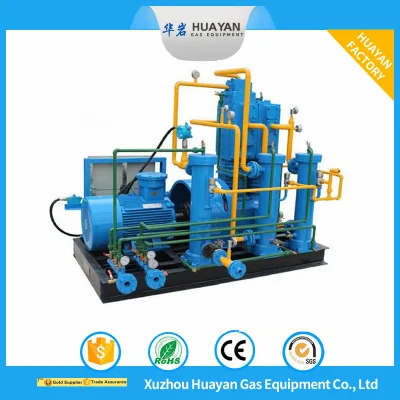

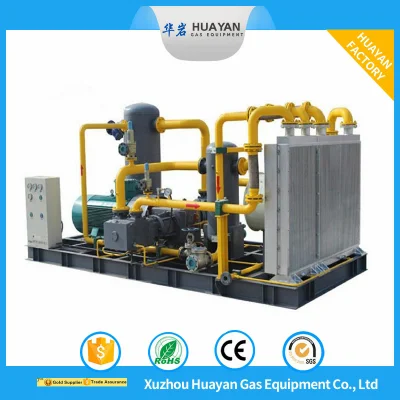

Picture display
Company strength display
Certificate display
Packaging and Shipping
FAQ
1.How to get a prompt quotation of gas compressor ?
1)Flow Rate/Capacity : ___ Nm3/h
2)Suction/ Inlet Pressure : ____ Bar
3)Discharge/Outlet Pressure :____ Bar
4)Gas Medium :_____
5)Voltage and Frequency : ____ V/PH/HZ
2.How long is delivery time ?
Delivery time is around the 30-90 days .
3.What about the voltage of products? Can they be customized?
Yes, the voltage can be customized according to your inquire.
4.Can you accept OEM orders?
Yes, OEM orders is highly welcome.
5.Will you provide some spare parts of the machines?
Yes, we will .
We have various of gas compressor, such as Hydrogen compressor, Nitrogen compressor, Natrual gas compressor, Biogas compressor, Ammonia compressor, LPG compressor, CNG compressor, Mix gas compressor and so on.
Advantages of Gas Compressor:
1. High quality material, Stable & Reliable operation
2. Low Maintenance cost & Low noise
3. Easy to install on site and connect with the user's pipeline system to operate
4. Alarm automatic shutdown to protection machine function
5. High pressure and flow
Lubrication includes : Oil lubrication and oil free lubrication;
Cooling method includes: Water cooling and air cooling.
Installation type includes: Stationary,Mobile and Skid Mounting.
Type includes: V-type, W-type,D-type,Z-type
Product description
Natural gas compressor
Product description
This series of compressor units are mainly used in the pressurized transmission of pipeline natural gas, oil and gas processing plants and other occasions.
Features
1. Reliable operation and easy maintenance.
2. Flexible load adjustment, wide range of air intake, and a wide range of adaptations.
3, the overall skid-mounted structure, low noise, easy to install in urban areas, saving investment.
4. Siemens PLC control system with high degree of automation and convenient remote control.
Technical parameters and specifications
| No | Model | Gas flow (Nm3/h) | Inlet pressure (Mpa) | Outlet pressure (Mpa) | Power (kw) | Dimensions (mm) |
| 1 | ZW-0.4/ 2-250 | 60 | 0.2 | 25 | 18.5 | 2800*2200*1600 |
| 2 | ZW-0.81/ (1~3)-25 | 120 | 0.1~0.3 | 2.5 | 22 | 1000*580*870 |
| 3 | DW-5.8/0.5-5 | 400~500 | 0.05 | 0.5 | 37 | 2000*1600*1200 |
| 4 | DW-10/2 | 510 | Atmospheric pressure | 0.2 | 37 | 2000*1600*1200 |
| 5 | DW-6.0/5 | 300 | Atmospheric pressure | 0.5 | 37 | 2000*1600*1200 |
| 6 | DW-0.21/(20~30)-250 | 270 | 2~3 | 25 | 45 | 3200*2200*1600 |
| 7 | ZW-0.16/60-250 | 480 | 6 | 25 | 45 | 3000*2200*1600 |
| 8 | ZW-0.46 /(5~10)-250 | 200 | 0.5~1.0 | 25 | 45 | 3000*2200*1600 |
| 9 | DW-1.34/2-250 | 208 | 0.2 | 25 | 55 | 3400*2200*1600 |
| 10 | DW-0.6/24-85 | 720 | 2.4 | 8.5 | 55 | 2200*1600*1200 |
| 11 | ZW-2.9/14.2-20 | 220 | 1.42 | 2 | 55 | 2200*1600*1200 |
| 12 | VW-2.0/(2~4)-25 | 410 | 0.2~0.4 | 2.5 | 55 | 3400*2200*1600 |
| 13 | DW-0.85/(3~4)-250 | 180 | 0.3~0.4 | 25 | 55 | 2400*1800*1500 |
| 14 | DW-25-(0.2~0.3)-1.5 | 1620 | 0.02~0.03 | 0.15 | 75 | 2400*1800*1500 |
| 15 | VW-8.0/0.3-25 | 540 | 0.03 | 2.5 | 90 | 2400*1800*1500 |
| 16 | DW-6.8/0.05-40 | 200~400 | 0.005 | 4 | 90 | 2400*1800*1500 |
| 17 | DW-1.2 /6-250 | 420 | 0.6 | 25 | 90 | 3400*2200*1600 |
| 18 | DW-3.45/3.5-28 | 800 | 0.35 | 2.8 | 90 | 2400*1800*1500 |
| 19 | DW-8.3/0.6-15 | 660 | 0.06 | 15 | 90 | 2400*1800*1500 |
| 20 | DW-0.48/40-250 | 900 | 4 | 25 | 110 | 3400*2200*1600 |
| 21 | DW-2.7/2-200 | 420 | 0.2 | 20 | 110 | 3400*2200*1600 |
| 22 | VW-3.22/2-250 | 500 | 0.2 | 25 | 132 | 3400*2200*1600 |
| 23 | DW-6.0/(1~3)-25 | 840 | 0.1~0.3 | 2.5 | 132 | 3400*2200*1300 |
| 24 | DW-0.92/16-220 | 800 | 1.6 | 22 | 132 | 3400*2200*1600 |
| 25 | VW-3.5/2.5-250 | 600 | 0.25 | 25 | 160 | 4000*2000*1600 |
| 26 | DW-6.7/2-25 | 1020 | 0.2 | 2.5 | 160 | 4000*2000*1300 |
| 27 | DW-3.0/3-250 | 500 | 0.3 | 25 | 160 | 4800*2200*1600 |
| 28 | DW-30.50/0.05-4.3 | 1620 | 0.005 | 0.43 | 160 | 4800*2200*1300 |
| 29 | DW-1.1/10-250 | 600 | 1 | 25 | 160 | 4800*2200*1600 |
| 30 | DW-3.35/(2~3)-250 | 600 | 0.2~0.3 | 25 | 160 | 4800*2200*1600 |
| 31 | DW-7.7/0.5-150 | 600 | 0.05 | 15 | 160 | 4800*2200*1600 |
| 32 | VW-2.6/5-250 | 800 | 0.5 | 25 | 185 | 4800*3900*1850 |
| 33 | DW-0.9/40-250 | 1860 | 4 | 25 | 220 | 5500*3900*1700 |
| 34 | DW-19.35/(4~6)-12 | 6000 | 0.4~0.6 | 1.2 | 280 | 5500*3900*1700 |
| 35 | DW-34/1.04-8.5 | 3540 | 0.104 | 0.85 | 315 | 6500*4000*1800 |
| 36 | DW-7.5/30-48 | 17400 | 3 | 4.8 | 350 | 6800*4000*1800 |
Customized is accepted , Pls provide the following information to us ,then we will do the technical proposal and best price to you.
1.Flow rate: _______Nm3/h
2.Gas Media : ______ Hydrogen or Natural Gas or Oxygen or other gas
3.Inlet pressure: ___bar(g)
4.Inlet temperature:_____ºC
5.Outlet pressure:____bar(g)
6.Outlet temperature:____ºC
7.Installation location: _____indoor or outdoor
8.Location ambient temperature: ____ºC
9.Power supply: _V/ _Hz/ _3Ph
10.Cooling method for gas: air cooling or water cooing
Picture display
Company strength display
Xuzhou Huayan Gas Equipment Co., Ltd. is a manufacturer engaged in the research and development, design and production of gas compressors. The company has its own production technology, processing equipment and assembly technology, and has many years of experience in the production of various flammable and explosive special gas compressors.
Huayan compressor products cover almost all gas media, up to 6th-stage compression and 3000kw power. Products can be customized according to customer requirements to better meet customer needs. The products are mainly used in gas compressors in the petroleum industry, chemical and natural gas compressors, industrial compressors, compressors for waste gas treatment and biogas utilization, and compressors for special gases.
Huayan compressor products cover almost all gas media, up to 6th-stage compression and 3000kw power. Products can be customized according to customer requirements to better meet customer needs. The products are mainly used in gas compressors in the petroleum industry, chemical and natural gas compressors, industrial compressors, compressors for waste gas treatment and biogas utilization, and compressors for special gases.
After Sales Service
1.Quick response within 2 to 8 hours, with a reaction rate exceeding 98%;
2. 24-hour telephone service, please feel free to contact us;
3. The whole machine is guaranteed for one year (excluding pipelines and human factors);
4. Provide consulting service for the service life of the whole machine, and provide 24-hour technical support via email;
5. On-site installation and commissioning by our experienced technicians;
